NPort 5000AI-M12 Series

Railway 1, 2, and 4-port RS-232/422/485 serial device servers

moxa-nport-5000ai-m12-series-image-1-(1).jpg | Moxa
moxa-nport-5000ai-m12-series-image-2-(1).jpg | Moxa
moxa-nport-5000ai-m12-series-image-3-(1).jpg | Moxa
moxa-nport-5000ai-m12-series-image-4-(1).jpg | Moxa
moxa-nport-5000ai-m12-series-image-5-(1).jpg | Moxa

Features and Benefits

  • Speedy 3-step web-based configuration
  • COM port grouping and UDP multicast applications
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Standard TCP/IP interface and versatile TCP and UDP operation modes
  • Complies with EN 50121-4
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • M12 connector and IP40 metal housing
  • 2 kV isolation for serial signals

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NPort® 5000AI-M12 serial device servers are designed to make serial devices network-ready in an instant, and provide direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.

3-Step Web-based Configuration

The NPort 5000AI-M12’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort 5000AI-M12’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort settings and enable the application, saving a great amount of time and effort.

Easy to Troubleshoot

NPort 5000AI-M12 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    1

  • Configuration Options

    Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Telnet Console

  • Management

    ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

  • Filter

    IGMP v1/v2

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15

  • Android API

    Android 3.1.x and later

  • Authentication

    Local database

  • Encryption

    HTTPS, AES-128, RSA-1024, SHA-1, SHA-256

  • Security Protocols

    SNMPv3
    HTTPS (TLS 1.2)

  • Connector

    DB9 male

  • No. of Ports

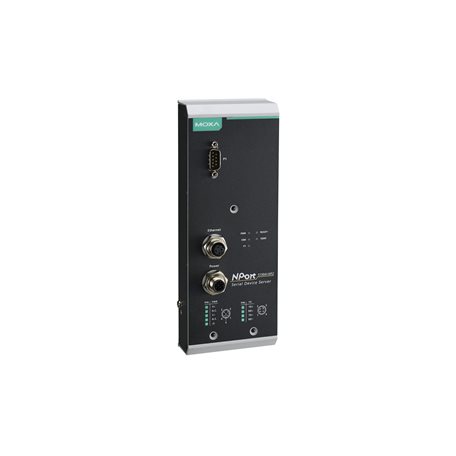

    NPort 5150AI-M12 Models: 1

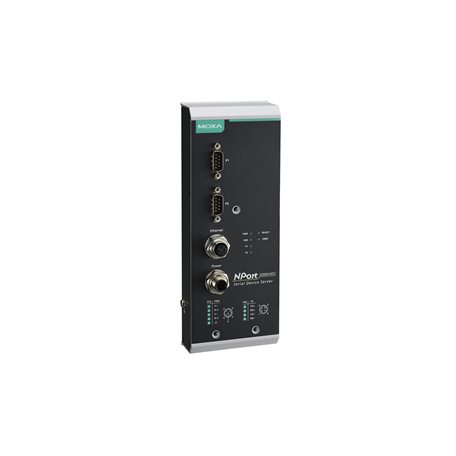

    NPort 5250AI-M12 Models: 2

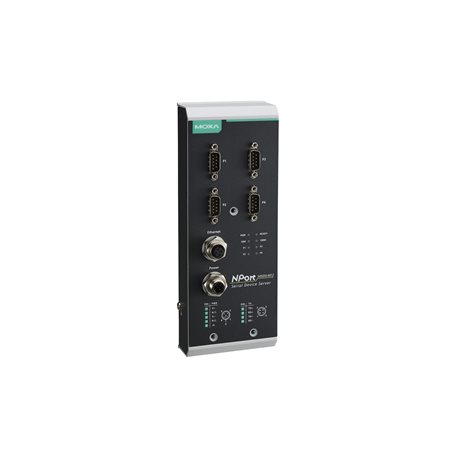

    NPort 5450AI-M12 Models: 4

  • Serial Standards

    RS-232, RS-422, RS-485

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • RS-485 Data Direction Control

    ADDC (automatic data direction control)

  • Isolation

    2 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 5150AI-M12 Models: 310 mA @ 12 VDC
    NPort 5250AI-M12 Models: 360 mA @ 12 VDC
    NPort 5450AI-M12 Models: 440 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • Note

    Compliant with EN 50155 on 24/48 VDC

  • Power Connector

    M12 A-coded 5-pin male connector

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Dimensions

    80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)

  • Weight

    686 g (1.51 lb)

  • Protection

    NPort 5000AI-M12-CT Models: PCB Conformal Coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Safety

    UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort 5150AI-M12 Models: 789,341 hrs
    NPort 5250AI-M12 Models: 639,622 hrs
    NPort 5450AI-M12 Models: 467,777 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR
