NPort IA5000A Series

1, 2, and 4-port serial device servers for industrial automation

moxa-nport-ia5000a-series-image-1-(1).jpg | Moxa

moxa-nport-ia5000a-series-image-2-(1).jpg | Moxa

moxa-nport-ia5000a-series-image-4-(1).jpg | Moxa

moxa-nport-ia5000a-series-image-5-(1).jpg | Moxa

moxa-nport-ia5000a-series-image-6-(1).jpg | Moxa

Features and Benefits

2 Ethernet ports with the same IP or dual IP addresses for network redundancy
C1D2, ATEX, and IECEx certified for harsh industrial environments
Cascading Ethernet ports for easy wiring
Enhanced surge protection for serial, LAN, and power
Screw-type terminal blocks for secure power/serial connections
Redundant DC power inputs
Warnings and alerts by relay output and email
2 kV isolation for serial signals (isolation models)
-40 to 75°C operating temperature range (-T models)

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The NPort IA5000A device servers are designed for connecting industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing and with screw connectors, and provide full surge protection. The NPort IA5000A device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

Cascading Ethernet Ports Make Wiring Easy

The NPort IA5000A device servers each have two Ethernet ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort IA device server or another Ethernet device. The dual Ethernet ports help reduce wiring costs by eliminating the need to connect each device to a separate Ethernet switch.

Redundant Power Inputs

The NPort IA5000A Series of device servers have two power inputs that can be connected simultaneously to live DC power sources. If one power source fails, the other source takes over automatically. Redundant power inputs help ensure uninterrupted operation of your device server.

Relay Output Warning and Email Alerts

The built-in relay output can be used to alert administrators when the network is down, when power failure occurs, or when there is a change in the DCD or DSR serial signals. An email warning can also be issued when an abnormality is detected. These functions are valuable tools that enable maintenance engineers to react promptly to emergency situations.

Surge Protection for Serial, Ethernet, and Power

Moxa’s leading-edge surge immunity solution, which is applied to the NPort® IA5000A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This advanced surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and resist electrical interference, such as in oil, gas, and power automation applications.

Industrial-grade Certification

To ensure safe and reliable operation in industrial environments, the NPort® IA5000A device servers have obtained various industrial certifications, including an IP30 rating for mechanical protection and UL 508 safety certification for industrial control equipment. In addition, these device servers are UL/cUL listed (for Class 1, Division 2, Groups A,B,C,D), ATEX Class 1 Zone 2, and IECEx compliant for use in hazardous locations.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

10/100BaseT(X) Ports (RJ45 connector)

Supports 2 IP addresses
Auto MDI/MDI-X connection
Magnetic Isolation Protection

1.5 kV (built-in)

Configuration Options

Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Serial Console, Telnet Console
Management

ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter

IGMP v1/v2
Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Android API

Android 3.1.x and later
Time Management

SNTP
Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded

Authentication

Local database
Encryption

HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Security Protocols

HTTPS (TLS 1.2)
IA5450A Models: SNMPv3

Connector

NPort IA5150A Models: DB9 male (RS-232), Terminal Block (RS-422/485)
NPort IA5250A/IA5450A Models: DB9 male (RS-232/422/485)
No. of Ports

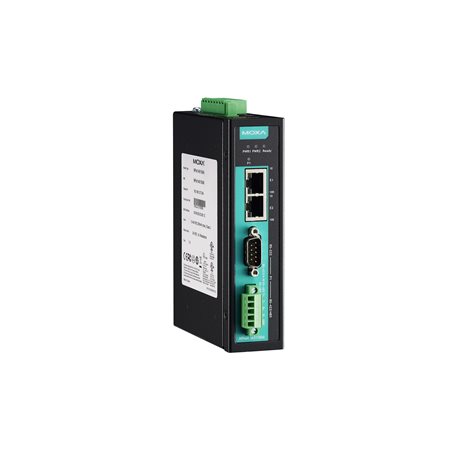

NPort IA5150A Models: 1

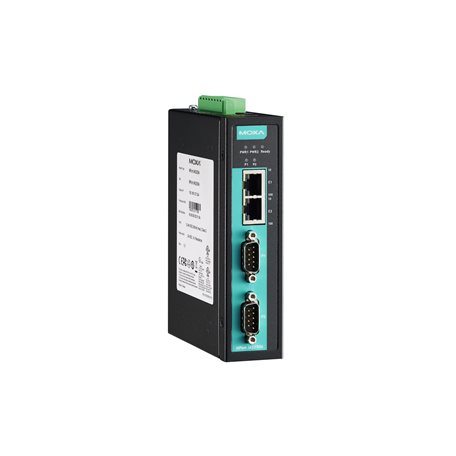

NPort IA5250A Models: 2

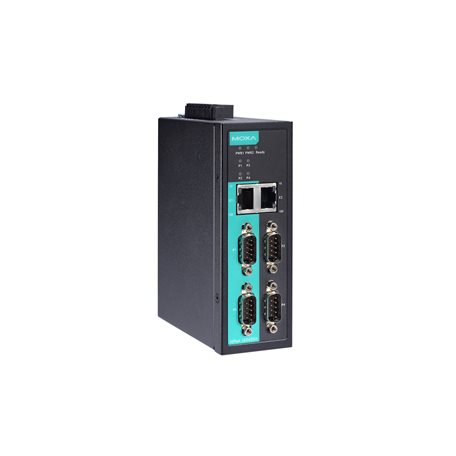

NPort IA5450A Models: 4
Serial Standards

RS-232, RS-422, RS-485
Operation Modes

Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
Baudrate

Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits

5, 6, 7, 8
Stop Bits

1, 1.5, 2
Parity

None, Even, Odd, Space, Mark
Flow Control

None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Isolation

NPort IA5150AI/IA5250AI/IA5450AI Models: 2 kV (I models)
Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485

120 ohms
RS-485 Data Direction Control

ADDC (automatic data direction control)

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND

Input Current

NPort IA5150A Models: 220 mA @ 12 VDC
NPort IA5150AI Models: 225 mA @ 12 VDC
NPort IA5250A Models: 250 mA @ 12 VDC
NPort IA5250AI Models: 290 mA @ 12 VDC
NPort IA5450A Models: 374 mA @ 12 VDC
NPort IA5450AI Models: 512 mA @ 12 VDC
Input Voltage

12 to 48 VDC
No. of Power Inputs

2
Power Connector

Terminal block

Housing

Metal
Dimensions

NPort IA5150A/IA5250A Models: 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in)
NPort IA5450A Models: 45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in)
Weight

NPort IA5150A Models: 475 g (1.05 lb)
NPort IA5250A Models: 485 g (1.07 lb)
NPort IA5450A Models: 560 g (1.23 lb)
Installation

DIN-rail mounting, Wall mounting (with optional kit)

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Hazardous Locations

NPort IA5100A/IA5200A Models: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2

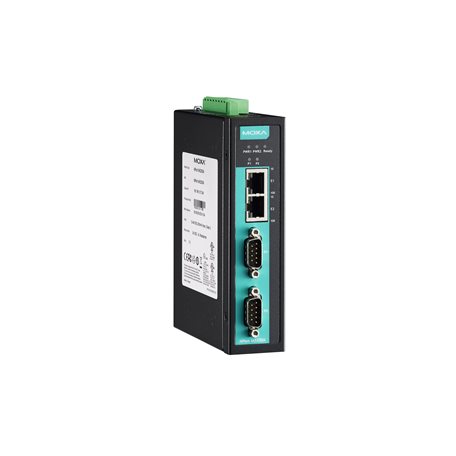

NPort IA5100A-IEX/IA5200A-IEX Models: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx
NPort IA5400A Models: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx
Safety

UL 508
Vibration

IEC 60068-2-6
Shock

IEC 60068-2-27
Freefall

IEC 60068-2-32

Green Product

RoHS, CRoHS, WEEE

Time

NPort IA5150A/IA5250A Models: 262,805 hrs
NPort IA5450A Models: 763,711 hrs
Standards

Telcordia (Bellcore) Standard TR/SR

Warranty Period

5 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Checksum	Version	Operating System	Release Date
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified) 5.4 MB	Driver	5A4E364BEB6F88EA40495ADF68AE1888696461F809630A706242B9E0F3CE9799CCC0099B74FBC65B4524948AC3B5163558F13C20F9D367D4340F5F59697B86D6 SHA-512	v4.1	Windows 11 Windows Server 2022	Feb 01, 2023 Feb 01, 2023 Release notes
Real TTY Linux drivers (kernel 4.x) 114.9 KB	Driver	F63DB8FFDD1DDF68B7434ACE588493E5DE612B4AA0125CCBB49CCFD788AA0F67D9DA7CDE43F755D728133EEA0E97ABED291A0033EA720541D1B0A78F156645C2 SHA-512	v4.2	Linux Kernel 4.x	Jan 17, 2023 Jan 17, 2023 Release notes
Real TTY Linux driver (kernel 5.x) 113.0 KB	Driver	67D0731A8D05DEDD18B8E7D21600E81886FAF2DD61B66A1CE47787070CE04098BCD305441C5CBF1CFE921E4CF34D9C9EDF6D11732FCD65796E7BF36B96ABEE40 SHA-512	v5.2	Linux Kernel 5.x	Jan 17, 2023 Jan 17, 2023 Release notes
NPort Administrator Suite v3.2 4.1 MB	Driver	4CFE0B4E3A32545B745C27342B1E9B882B1FF9D9A596CAD5915010A274CF35F2CBCF914A8C70DC157B2E42DCD807A2DEF8608780D377381CB79FFE60F7CDB7B1 SHA-512	v3.2	Windows 7 Windows 8 Windows 8.1 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2	Jan 17, 2023 Jan 17, 2023 Release notes
NPort Administrator Suite (Windows 10 and Server 2019 and later, WHQL certified) 7.7 MB	Driver	72AB41E1B7312C5891108C3C5FD9828A34F85E874D2258D46F7C1A494573C0584D8EA89CBEA63C5A8A027E27AE4E7BA6E81275AD970F775151132297585227D6 SHA-512	v4.0	Windows 10 Windows 11 Windows Server 2016 Windows Server 2019 Windows Server 2022	Jan 17, 2023 Jan 17, 2023 Release notes
Device Server Android API 18.0 MB	Library	C60360A8734B5D261D9010D5772739C4BB92197E2E657E935F1AFB289DB9E3068AB542D83AC2D466477B30D0A57193427430FEDE60BC6C2E92852BDB987FDA21 SHA-512	v1.1	Android	Dec 22, 2022 Dec 22, 2022 Release notes
Windows Driver Manager v3.5 (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified) 6.8 MB	Driver	A746E908A79642AFBDA254C37CF095B77B53A07085B84384B1A7C2F785E64B55F9ED5A2F69A9CBA1D04BA338861ACC349ED4BE4E2CB6406D2EA073BDD452FA81 SHA-512	v3.5	Windows 10 Windows 7 Windows 8 Windows 8.1 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019	Dec 01, 2022 Dec 01, 2022 Release notes
Device Search Utility 2.2 MB	Utility	8C9DE4B40959643538DCBE63E109E8C7C07E94670E90E1AA42A7B337E61EEC7A59999246116D27E780247EEF29649D25279105BC914ABA4EA7A5EF9C2739D83A SHA-512	v2.6	Windows Windows 10 Windows 11 Windows 2000 Windows 7 Windows 8 Windows 8.1 Windows 95 Windows 98 Windows 98 SE Windows ME Windows NT Windows Server 2003 Windows Server 2008 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 Windows Server 2022 Windows Vista Windows XP	Nov 23, 2022 Nov 23, 2022 Release notes
MXview 417.7 MB	Software Package	BE1C57655A0C398122DA1BB48984E0751203A262B51EAB83F91C06F0B2FAA0DFA71D5F311CE83CCA6E6FAE6C807EB69652281F199DA48132DF8048001AC5151D SHA-512	v3.2.8	Windows 10 Windows 7 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019	Oct 31, 2022 Oct 31, 2022 Release notes
Serial Device Server Driver for macOS (macOS 10.12 to 10.15) 611.6 KB	Driver	BE32FE7D0CAC2F085B41604E1F6D29411F7EBA2E0D9D7D13DC1CC4D74012D585D307D33AE6D36D66BF1B756A3D5D6586F23D2020DD3B96BF2AAE8DACA151B370 SHA-512	v1.1	macOS 10.12 macOS 10.13 macOS 10.14 macOS 10.15	Sep 26, 2022 Sep 26, 2022 Release notes
Real TTY drivers (Linux Kernel 4.x) 139.3 KB	Driver	3CB71D7672A822F47972C0EAB716D8397A9241BBC4C7CCBD02BCEAF6D44612A46A4152F82C380F057109DD1AC9E0C06744CDBFF039842C976414B977F18409BF SHA-512	v4.1	Linux Kernel 4.x	Aug 04, 2021 Aug 04, 2021 Release notes
Real TTY drivers (Linux Kernel 5.x) 140.8 KB	Driver	302984B4379CAD0DED4E63901C8E0F033D051011F12C0BFD7A83F437B831328B7EC2782CD8E35A4A4AD9FFFC9FDEF0038571E26BD443282AB66BE19C08FC49E9 SHA-512	v5.1	Linux Kernel 5.x	Aug 04, 2021 Aug 04, 2021 Release notes
NPort Administration Suite for Windows 7 and Windows Server 2008 R2, or later 4.1 MB	Driver	EA6DCE4B79C37FA3F6485747194D11E124610E1F2D75D8A74EAC8F6CE246A73B3B7CF95FA7D12577BDEC9432FCB9DA36D90233BB676753A20A4200F0B798F725 SHA-512	v3.1	Windows 10 Windows 7 Windows 8 Windows 8.1 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019	Mar 31, 2021 Mar 31, 2021 Release notes
Moxa CLI Configuration Tool for Linux 8.1 MB	Utility	5BF64C3052083B7B8812713A6FAB1D6E13341FED76275BAC557EB47ECCF485DC891010D6E07628678D427A2D6F1DD895A5034C3DBFDC761814ABCDD220245E18 SHA-512	v1.2	Linux Kernel 2.6.x Linux Kernel 3.x Linux Kernel 4.x	Mar 31, 2021 Mar 31, 2021 Release notes
Moxa CLI Configuration Tool for Windows 2.1 MB	Utility	DF5D1D21B40A75146CCEA13A0BB3ED4960B8B6F2EB66C91F294F91781E9E009C5C6C6726DDD3014361E5D0AC2C09ED290613DE34F3202F2C7F234B666CBA8525 SHA-512	v1.2	Windows 10 Windows 7 Windows 8 Windows 8.1 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019	Mar 31, 2021 Mar 31, 2021 Release notes
MXview plugin 24.3 MB	Software Package	92839A279E440C9663304019291349B60D99D06B9B5DB5AF0A12D6AEA9571FC391E829B585686A44CDC036A29BA9FD46C923476DC3A5F45FE249AA1B4381C3E6 SHA-512	v1.1	Windows 10 Windows 7 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019	Mar 31, 2021 Mar 31, 2021 Release notes
MXconfig plugin 2.2 MB	Software Package	C1B5A4F50BBFEB619F069639AA3AF41A9285533AF974E35BDB9025F81B8B95D37DBB3DBED4024F03523DF06EE58E596340C5437906214CF14487B2B1DAC86A51 SHA-512	v1.1	Windows 10 Windows 7 Windows 8 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2	Mar 31, 2021 Mar 31, 2021 Release notes
Firmware for NPort IA5000A Series (NPort IA5150A/IA5250A Series) 861.2 KB	Firmware	F67294983026EA5793D5E9EA3EAFF85F4A2DB81E5DCFC1E454B3D9EF52DD34B080172D34F00A232609828ABB74A95317FB7B14112175743B5B74933A75E6FDF9 SHA-512	v1.5		Mar 02, 2021 Mar 02, 2021 Release notes
Firmware for NPort IA5000A Series (NPort IA5450A Series) 883.9 KB	Firmware	144E015AD3FA3DA205DE6C24789A07E8657901417981E74D96E87EF042903690C9522C2DDAF7F33E97CE89A891A6E9D6F155798B3DB3B10DAA4C6514EAD09F44 SHA-512	v2.0		Mar 02, 2021 Mar 02, 2021 Release notes
Firmware for NPort IA5000A Series (NPort IA5450A Series) 857.5 KB	Firmware	C8C1AC387F141FA4F373C6C3A3B537D84935058D547C758DFAE4420AE39A77255F4081CD169D63F596961C2C2FCA727455C02E30E15F7C4986555FCA199EDE89 SHA-512	v1.7		Mar 02, 2021 Mar 02, 2021 Release notes
Windows Driver Manager (for Windows 7, Windows Server 2008 or later) 5.2 MB	Driver	340B37A8BAB0B5838D123AAA97FC70BF35139DBA84D6DC4F066D1F3A4A7A81B3CCEB4BF68F1FFBD9519829F1D399DACB1157CD2D0FBE196EF5DB8665B6E3F314 SHA-512	v3.3	Windows 10 Windows 7 Windows 8 Windows 8.1 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019	Jan 25, 2021 Jan 25, 2021 Release notes
Real TTY drivers for Linux 2.x.x 92.2 KB	Driver	E1DE344CAB9DC95DCCDABB25E0AC77EACB0D49C5E49E864DB555A4BFDFB94A8FDED968DE193943EA06A398654D5403BA0230EF36543589EF348D664A7002AE34 SHA-512	v2.0	Linux Kernel 2.4.x Linux Kernel 2.6.x	Oct 24, 2019 Oct 24, 2019 Release notes
Real TTY drivers for Linux 3.x.x 95.0 KB	Driver	7F8528FCECA63D7B0D6DC642DBE9A8109CA123539FC861EA3AEA21C55BD1399C78AA5E925A8D3CF9F5BC47ADD0BA958FD23C70EFC99D24B247674712EAF7EBE2 SHA-512	v3.0	Linux Kernel 3.x	Oct 24, 2019 Oct 24, 2019 Release notes
Windows Driver Manager (Windows Vista, Server 2008, and prior) 2.6 MB	Driver	4340A70D93E824C9B6FF6034E3322BD0DE5FDAA27CC3BA2B0F0276DCF313AA1DE22B091610EF686F697774EE215AC0028EE0AB3239734334A49A6A1FEBE77804 SHA-512	v2.0	Windows 2000 Windows 95 Windows 98 Windows 98 SE Windows ME Windows NT Windows Server 2003 Windows Server 2008 Windows Vista Windows XP	Aug 01, 2019 Aug 01, 2019 Release notes
NPort Administration Suite for Windows Vista, Server 2008 or prior 4.1 MB	Driver	FE888BC2E78425ADF49B5D92B17A9F4559870EB1FEF9EE773FAD0D13284040A353EE92DBE58BDF081C3E01A8534993F735086A062C83BC54A45F99A7C70AB8B5 SHA-512	v2.0	Windows 2000 Windows 95 Windows 98 Windows ME Windows NT Windows Server 2003 Windows Server 2008 Windows Vista Windows XP	Feb 11, 2019 Feb 11, 2019 Release notes
Software Package for NPort IA5000A Series (MXconfig Plugin) 484.2 KB	Software Package	4D0D05716E3C784015BC8799859BCF67F2B29D374FFF8F9C149F0ABA52D0A0149854BC066E1D5C5DA7CE375A98B398FF71330F268FC9C29DA6849FD96927DC97 SHA-512	v1,1		Jan 07, 2019 Jan 07, 2019 Release notes
Driver for NPort IA5000A Series (WinCE 5) 230.5 KB	Driver	00DD2467DE2439BBAADAA004964C685C92DA2495C38B2CCBEBDED8DBA035FA42E82AF4CFF8AEA4C80CC571CA46AAE1259E777F42E62CF813D3C8603E64507779 SHA-512	v1.6	Windows CE 5.0 Windows CE 6.0	Nov 14, 2012 Nov 14, 2012 Release notes
PComm Lite - Serial Communication Tool for Windows 1.6 MB	Utility	1033555948012595FB0D4A9EA4949CBEA7E5CE0585383E772935016CA2F171990DB5A10EE0732372AD9293152C6B634DBFA96F19D9EA2B7516845214DF61312E SHA-512	v1.6	Windows 2000 Windows 7 Windows Server 2003 Windows Server 2008 Windows Server 2008 R2 Windows Vista Windows XP	May 13, 2012 May 13, 2012 Release notes
Driver for NPort IA5000A Series (WinXP Embedded) 1.2 MB	Driver	51DC8EDE78353F3080BCDB8370EB56C4FEC50D814005DDE835072A4AD3B2FD4D08166EB5490E5C84F686D625004A05763FFD23787B0DF36DD93CF4AE95C4F358 SHA-512	v1.14	Windows XP Embedded	Apr 04, 2012 Apr 04, 2012 Release notes
Driver for NPort IA5000A Series (UNIX) 73.0 KB	Driver	14B2FDD2D55F69D4910D6DDCA9B63C14AC9F818373889BCAD224327E710071A4269E16EB0DCAA0E107430A03BB974427473B170DA4DCB3BC07CF4C90A4D4A153 SHA-512	v3.5	FreeBSD 5.x FreeBSD 6.x FreeBSD 7.x FreeBSD 8.x HP-UX IBM AIX 5.3 Mac OS X QNX 4.x QNX 6.x SCO OpenServer 5 SCO OpenServer 6 SCO UnixWare 7 Solaris 10	Mar 19, 2012 Mar 19, 2012 Release notes
