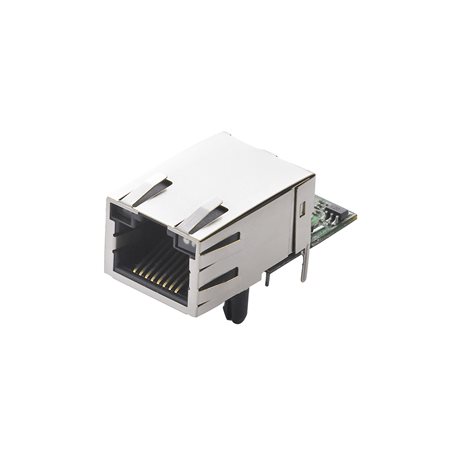

MiiNePort E1-T
MiiNePort E1 Series

Embedded device server for TTL devices, drop-in module, 10/100M with RJ45 connector, -40 to 85°C operating temperature

Embedded System
  • CPU

    • 32-bit Arm Core
Memory
  • Flash

    • 2 MB
  • SDRAM

    • 4 MB
Input/Output Interface
  • Configurable DIO Channels (by software)

    • 1
  • Digital Input Channels

    • 1
  • Digital Output Channels

    • 1
Ethernet Interface
  • 10/100BaseT(X) Ports, Auto MDI/MDI-X

    • 8-pin RJ45
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
  • Management

    • ARP, BOOTP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, ICMP
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Linux Real TTY Drivers

    • Kernel version: 2.4.x, 2.6x, 3.x, 4.2
  • Android API

    • Android 3.1.x and later
Serial Interface
  • No. of Ports

    • 1
  • Serial Standards

    • TTL
  • Operation Modes

    • Real COM mode, TCP Client, TCP Server, UDP mode, RFC2217
  • Baudrate

    • 50 bps to 230.4 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, XON/XOFF
Serial Signals
  • TTL

    • • TxD, RxD, RTS, CTS, RST (reset circuit), GND
NetEZ Technology
  • NetEZ Functions

    • ExTrigger, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication)
Power Parameters
  • Input Current

    • 160 mA @ 3.3 VDC
  • Input Voltage

    • 3.3 VDC
Physical Characteristics
  • Dimensions

    • 33.9 x 16.25 x 13.5 mm (1.33 x 0.64 x 0.53 in)
  • Weight

    • 9 g (0.02 lb)
  • Form Factor Type

    • Drop-in modules
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 60°C (-40 to 140°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-3
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 5,515,294 hrs
  • Standards

    • Telcordia SR332
