NE-4100 Series

10/100 Mbps embedded serial device servers

moxa-ne-4100-series-image-1-(1).jpg | Moxa
moxa-ne-4100-series-image-2-(1).jpg | Moxa
moxa-ne-4100-series-image-3-(1).jpg | Moxa

Features and Benefits

  • 10/100 Mbps Ethernet interface
  • Supports baudrates up to 230.4 kbps
  • Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP
  • Supports DHCP, BootP, Static IP, and ARP
  • SNMP and email alerts for event trapping and notifications
  • Half the size of a credit card—only 57 × 40 mm
  • Low power consumption at 1.5 W, with single +5 V input

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.

SNMP and Email Alerts for Event Trap and Notification

NE-4100 embedded device servers can be configured to send an SNMP trap or email under the following conditions:

  • Cold/warm start

  • Password authentication failure

  • Change in DSR/DCD line signal

  • Change in IP address

  • Change in password

  • CPU

    16-bit MCU

  • Flash

    2 MB

  • SDRAM

    1 MB

  • Configurable DIO Channels (by software)

    4

  • 10/100BaseT(X) Ports, Auto MDI/MDI-X

    NE-4120S/4120A: 5-pin pin header
    NE-4100T: 26-pin dual-in-line
    NE-4110S/4110A: 8-pin RJ45

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control

  • Configuration Options

    Web Console (HTTP), Windows Utility, Telnet Console, Serial Console

  • Management

    ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • No. of Ports

    2 (1 for serial interface, 1 for TTL console port)

  • Serial Standards

    NE-4110S/4120S Series: RS-232
    NE-4110A/4120A Series: RS-422, RS-485
    NE-4100T Series: TTL

  • Operation Modes

    Real COM mode, TCP Client mode, TCP Server mode, UDP mode

  • Baudrate

    110 bps to 230.4 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, DTR/DSR, XON/XOFF

  • RS-232

    NE-4110S/4120S: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    NE-4110A/4120A: TX+, TX-, RX+, RX-, GND

  • RS-485-4w

    NE-4110A/4120A: TX+, TX-, RX+, RX-, GND

  • RS-485-2w

    NE-4110A/4120A: Data+, Data-, GND

  • Input Voltage

    5 VDC

  • Power Consumption

    290 mA @ 5 VDC

  • Dimensions

    NE-4110/4120: 57 x 40 mm (2.24 x 1.57 in)
    NE-4100T: 45 x 36 mm (1.77 x 1.42 in)

  • Weight

    NE-4110S/4110A: 40 g (0.09 lb)
    NE-4120S/4120A/4100T: 20 g (0.04 lb)

  • Form Factor Type

    NE-4110/4110A/4120S/4120A: Ready-to-go pin header modules
    NE-4100T: Drop-in modules

  • Operating Temperature

    Standard Models: 0 to 55˚C (32 to 131˚F)
    Wide Temp. Models: -40 to 75˚C (-40 to 167˚F)

  • Storage Temperature (package included)

    -40 to 60°C (-40 to 140°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-3
    IEC 60068-2-14

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NE-4100T: 288,173 hrs
    NE-4110S: 290,276 hrs
    NE-4110A/4120S/4120A: 289,573 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Device Search Utility
428.1 MB
Utility
SHA-512
v3.0
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Oct 31, 2024 Oct 31, 2024 Release notes
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
9.4 MB
Driver
SHA-512
v4.3
  • Windows 11
  • Windows Server 2022
Sep 22, 2024 Sep 22, 2024 Release notes
Windows Driver Manager (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
8.9 MB
Driver
SHA-512
v3.6
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Sep 22, 2024 Sep 22, 2024 Release notes
Real TTY Linux Kernel 6.x Driver
590.0 KB
Driver
SHA-512
v6.1
  • Linux Kernel 6.x
Sep 05, 2024 Sep 05, 2024 Release notes
Serial Device Server Driver for macOS (macOS 11.x to 14)
6.3 MB
Driver
SHA-512
v1.3
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
Sep 02, 2024 Sep 02, 2024 Release notes
Real TTY Linux Kernel 4.x Driver
600.0 KB
Driver
SHA-512
v4.3
  • Linux Kernel 4.x
Aug 07, 2024 Aug 07, 2024 Release notes
Real TTY Linux Kernel 5.x Driver
590.0 KB
Driver
SHA-512
v5.4
  • Linux Kernel 5.x
Aug 07, 2024 Aug 07, 2024 Release notes
Real TTY drivers for Linux 3.x.x
94.6 KB
Driver
SHA-512
v3.0
  • Linux Kernel 3.x
Jul 04, 2024 Jul 04, 2024 Release notes
Serial Device Server Driver for macOS (macOS 10.1x to 14)
689.8 KB
Driver
SHA-512
v1.2
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
Nov 10, 2023 Nov 10, 2023 Release notes
Device Search Utility
2.2 MB
Utility
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 28, 2023 Jun 28, 2023 Release notes
Device Server Android API
18.0 MB
Library
SHA-512
v1.1
  • Android
Dec 22, 2022 Dec 22, 2022 Release notes
Serial Device Server Driver for macOS (macOS 10.12 to 10.15)
611.6 KB
Driver
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
Sep 26, 2022 Sep 26, 2022 Release notes
Windows Driver Manager (for Windows 7, Windows Server 2008 or later)
5.2 MB
Driver
SHA-512
v3.3
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Jan 25, 2021 Jan 25, 2021 Release notes
Windows Driver Manager (for Windows 7, Server 2008, or later))
3.0 MB
Driver
SHA-512
v3.2
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Jul 06, 2020 Jul 06, 2020 Release notes
Network Enabler Administrator
923.4 KB
Utility
SHA-512
v2.11
  • Windows 98
  • Windows 98 SE
  • Windows Vista
  • Windows XP
Dec 06, 2019 Dec 06, 2019 Release notes
Network Enabler SDK
5.0 MB
Utility
SHA-512
v2.9
  • Windows 98
  • Windows 98 SE
  • Windows Vista
  • Windows XP
Dec 06, 2019 Dec 06, 2019 Release notes
Real TTY drivers for Linux 2.x.x
92.2 KB
Driver
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
Oct 24, 2019 Oct 24, 2019 Release notes
Real TTY drivers for Linux 5.x.x
95.3 KB
Driver
SHA-512
v5.0
  • Linux Kernel 5.x
Oct 24, 2019 Oct 24, 2019 Release notes
Real TTY drivers for Linux 4.x.x
95.4 KB
Driver
SHA-512
v4.0
  • Linux Kernel 4.x
Oct 24, 2019 Oct 24, 2019 Release notes
Driver for NE-4100 Series (TTY driver for Unix)
73.0 KB
Driver
SHA-512
v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
Mar 20, 2019 Mar 20, 2019 Release notes
Windows Driver Manager (Windows Vista, Server 2008, and prior)
2.6 MB
Driver
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Aug 23, 2018 Aug 23, 2018 Release notes
Driver for NE-4100 Series (WinCE 5)
230.5 KB
Driver
SHA-512
v1.6
  • Windows CE 5.0
  • Windows CE 6.0
Nov 14, 2012 Nov 14, 2012 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
May 13, 2012 May 13, 2012 Release notes
Driver for NE-4100 Series (WinXP Embedded)
1.2 MB
Driver
SHA-512
v1.14
  • Windows XP Embedded
Apr 04, 2012 Apr 04, 2012 Release notes
Software Package for NE-4100 Series (DIO Tester)
111.3 KB
Software Package
SHA-512
v2.1
  • Windows 2000
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Sep 27, 2009 Sep 27, 2009 Release notes
Library for NE-4100 Series (NECI)
485.0 KB
Library
SHA-512
v2.3.0
Sep 01, 2008 Sep 01, 2008 Release notes
Firmware for NE-4100 Series
454.9 KB
Firmware
SHA-512
v4.1
Jul 08, 2008 Jul 08, 2008 Release notes

Support Documents

Name Type Version Release Date
Device Search Utility v3.x User Manual
95.1 MB
Manual v1.0 Oct 31, 2024 Oct 31, 2024
FOSS Statement for NPort macOS driver
108.4 KB
Declaration v1.0 Oct 29, 2024 Oct 29, 2024
FOSS Statement for Device Search Utility
161.8 KB
Declaration v1.0 Jun 24, 2024 Jun 24, 2024
Tech Note: Reverse Telnet Mode for NPort
364.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Accessing Multiple NPorts Behind NAT
497.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Pair Connection Mode
544.0 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: TCP Server Mode for NPort
395.0 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: UDP Mode for NPort
397.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Real COM mode for NPort
479.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Ethernet Modem Mode
429.4 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: TCP Client Mode for NPort
394.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Fixed TTY Driver for NPort
389.7 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Real TTY Driver for NPort
379.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
FOSS Statement for NE-4100, NE-4100-ST Series
135.1 KB
Declaration v1.0 Feb 24, 2023 Feb 24, 2023
FOSS Statement for NPort Windows Driver Manager
255.8 KB
Declaration v1.0 Aug 01, 2022 Aug 01, 2022
Manual for NE-4100 Series
15.6 MB
Manual v11.1 Jul 26, 2022 Jul 26, 2022
Manual for NE-4100 Series (Serial command mode)
1.1 MB
Manual v2.1 Jul 26, 2022 Jul 26, 2022
Tech Note for NE-4100 Series (circuit design recommendations)
1.0 MB
Tech Note v12.1 Jul 26, 2022 Jul 26, 2022
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
Tech Note v1.0 Aug 05, 2021 Aug 05, 2021
QIG for NE-4100 Series
499.4 KB
QIG v5.2 May 19, 2021 May 19, 2021
Datasheet for NE-4100 Series
499.7 KB
Datasheet v1.3 Jun 24, 2020 Jun 24, 2020
Tech Note: Real COM mode for NPort
423.5 KB
Tech Note v1.1 Apr 30, 2020 Apr 30, 2020
Network Enabler 2 SDK Programmer's Guide
688.2 KB
Manual v5.0 Dec 13, 2019 Dec 13, 2019
Network Enabler 2 SDK API Reference
385.8 KB
Manual v8.0 Dec 13, 2019 Dec 13, 2019
2D CAD for NE-4100T TOP
357.6 KB
2D CAD May 19, 2016 May 19, 2016
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
Tech Note v1.0 Nov 17, 2014 Nov 17, 2014
Tech Note: TCP Server Mode for NPort
311.3 KB
Tech Note v1.0 Jun 29, 2013 Jun 29, 2013
Tech Note: Real COM Mode for NPort
253.0 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: UDP Mode for NPort
173.2 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort's Pair Connection Mode
211.4 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: TCP Client Mode for NPort
224.4 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Real TTY Driver for NPort
204.2 KB
Tech Note v1.0 May 21, 2009 May 21, 2009
Tech Note: Fixed TTY Driver for NPort
207.6 KB
Tech Note v1.0 May 21, 2009 May 21, 2009
2D CAD for NE-4110S-A TOP
391.1 KB
2D CAD Aug 03, 1995 Aug 03, 1995
2D CAD for NE-4120S-A TOP
242.7 KB
2D CAD Aug 03, 1995 Aug 03, 1995

Available Models (10)

Show Images

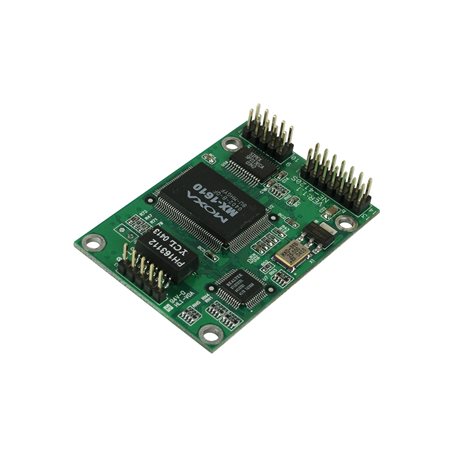

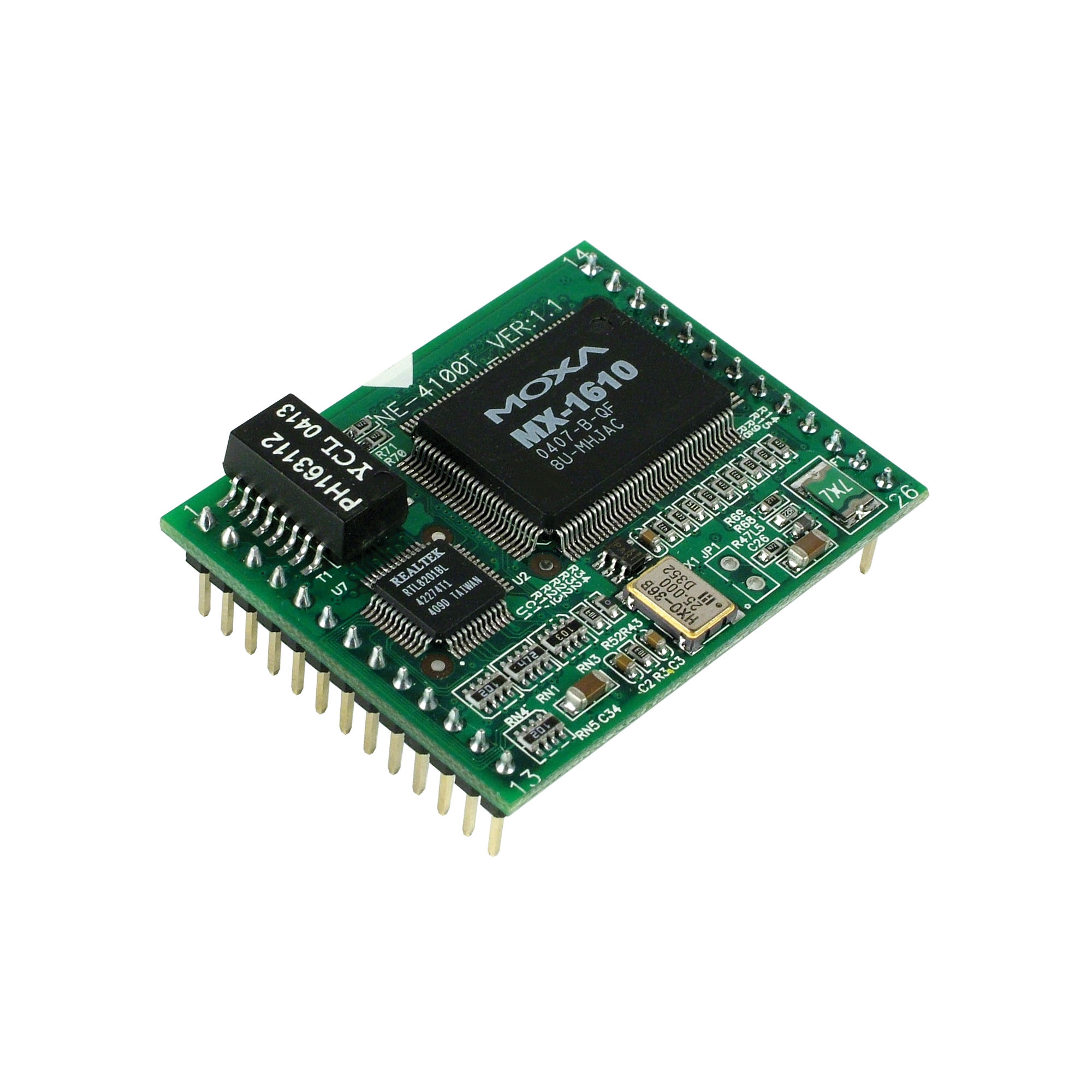

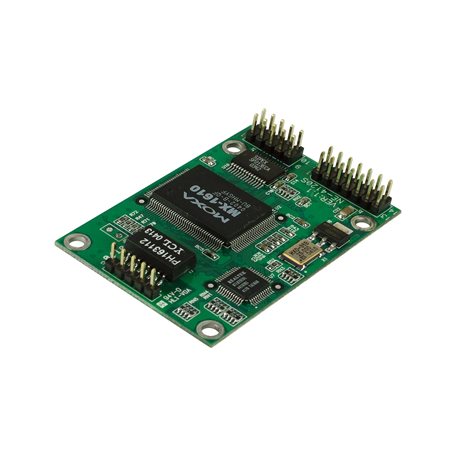

moxa-ne-4100t-image.jpg | MoxaNE-4100Tmoxa-ne-4120a-image.jpg | MoxaNE-4120Amoxa-ne-4100t-t-image.jpg | MoxaNE-4100T-TNE-4120A-T
Ethernet Interface26-pin dual-in-line5-pin pin header26-pin dual-in-line5-pin pin header
Serial StandardsTTL signalsRS-422/485TTL signalsRS-422/485
Operating Temp.0 to 55°C0 to 55°C-40 to 75°C-40 to 75°C
Form Factor TypeDrop-in moduleReady-to-go pin header moduleDrop-in moduleReady-to-go pin header module
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

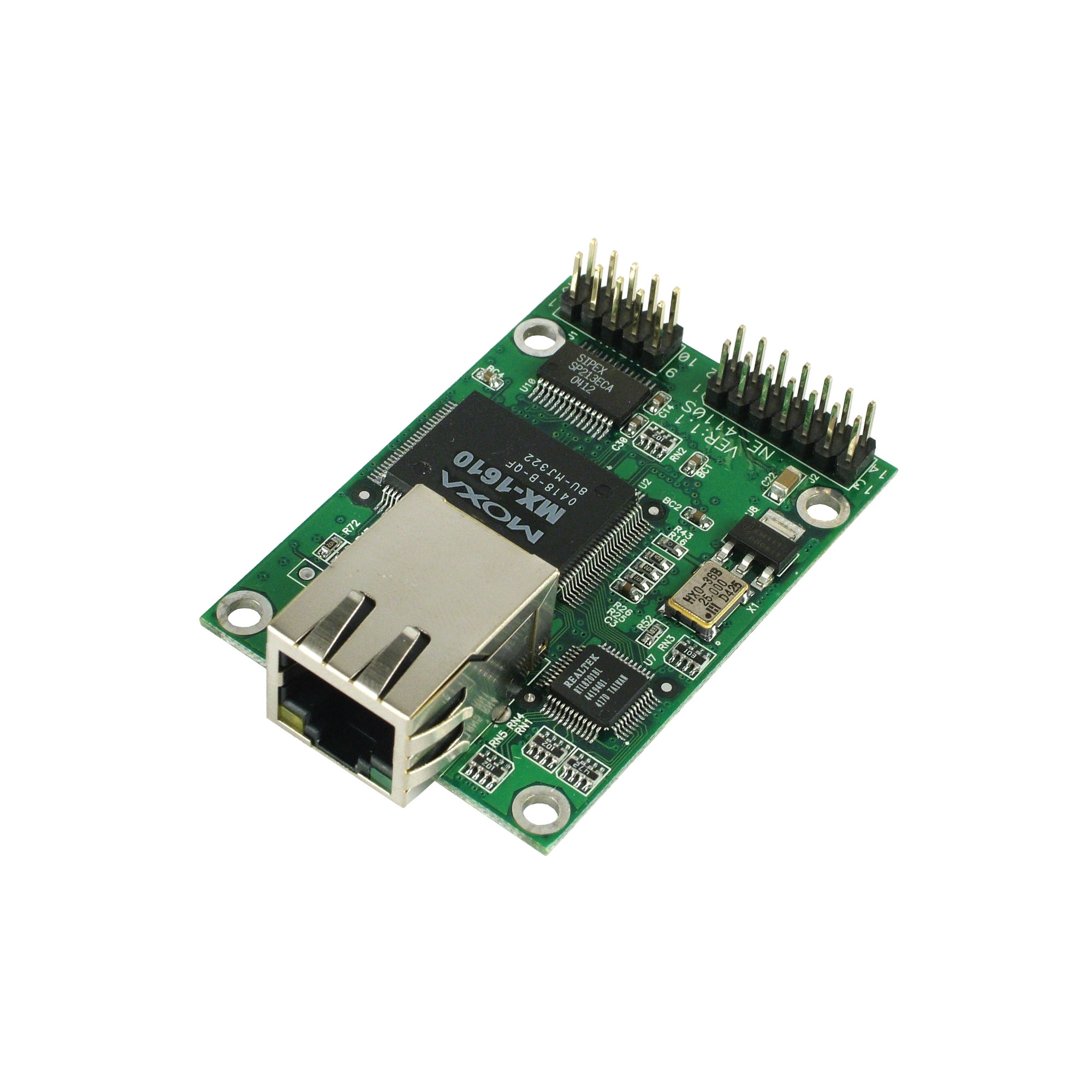

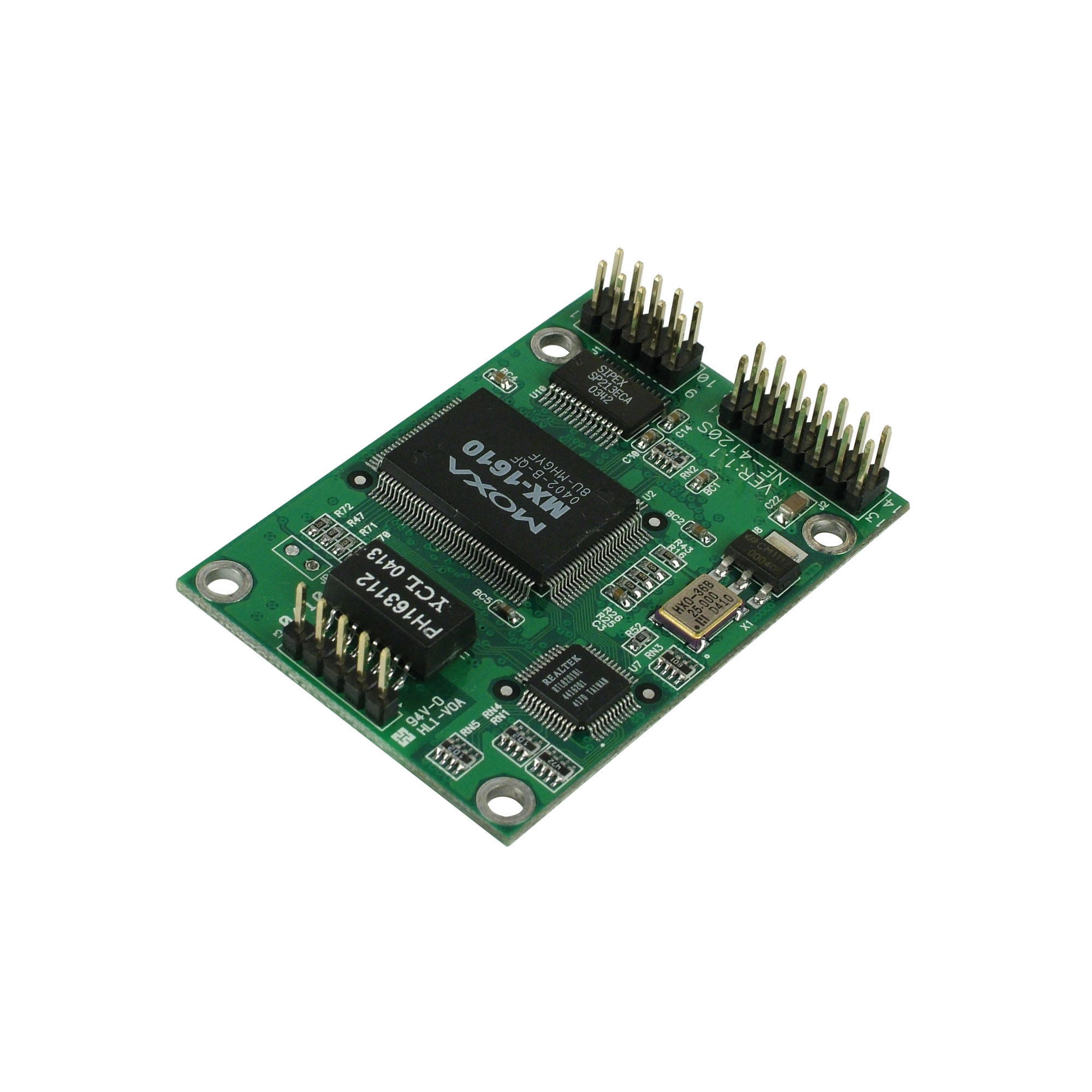

moxa-ne-4110s-image.jpg | MoxaNE-4110Smoxa-ne-4110s-t-image.jpg | MoxaNE-4110S-TNE-4110A-Tmoxa-ne-4120s-image.jpg | MoxaNE-4120S
Ethernet InterfaceRJ45RJ45RJ455-pin pin header
Serial StandardsRS-232RS-232RS-422/485RS-232
Operating Temp.0 to 55°C-40 to 75°C-40 to 75°C0 to 55°C
Form Factor TypeReady-to-go pin header moduleReady-to-go pin header moduleReady-to-go pin header moduleReady-to-go pin header module
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-ne-4110a-image.jpg | MoxaNE-4110Amoxa-ne-4120s-t-image.jpg | MoxaNE-4120S-T
Ethernet InterfaceRJ455-pin pin header
Serial StandardsRS-422/485RS-232
Operating Temp.0 to 55°C-40 to 75°C
Form Factor TypeReady-to-go pin header moduleReady-to-go pin header module
Add to QuoteView BagAdd to QuoteView Bag

product image

Buy online from distributors

Added To Bag
You have some items waiting in your bag; click here to finish your quote!
Feedback
