UPort 200A Series

4 and 7-port general-purpose USB 3.2 hubs

moxa-uport-200a-series-image-(1).jpg | Moxa
moxa-uport-200a-series-image-1-(1).jpg | Moxa
moxa-uport-200a-series-image-2-(1).jpg | Moxa
moxa-uport-200a-series-image-3-(1).jpg | Moxa
moxa-uport-200a-series-image-4-(1).jpg | Moxa
moxa-uport-200a-series-image-5-(1).jpg | Moxa
moxa-uport-200a-series-image-6-(1).jpg | Moxa

Features and Benefits

  • USB-IF certification
  • USB 3.2 SuperSpeed capability
  • IP30 aluminum housing
  • DIN-rail housing and wall-mountable housing
  • 5-year warranty

Certifications

  • moxa-usb-super-speed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The UPort® 200A Series general-purpose USB 3.2 hubs can expand an USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port. The hubs are fully compliant with the USB plug-and-play spec and provide full 900 mA power per port, ensuring that your USB devices function properly. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

BC 1.2 Compatibility

The UPort® 200A Series hubs has BC 1.2 compatible on port 1, which would provide 1.5 A charging power to the mobile device/power bank that also supports BC 1.2. The UPort® 200A Series supports CDP, DCD and SCD type.

ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 200A Series USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.

  • USB Standards

    USB 1.1/2.0 compliant
    USB 3.2 Gen 1

  • Speed

    5 Gbps

  • USB Connector

    UFP: type B
    DFP: type A

  • No. of USB Ports

    8 (UFP: 1, DFP 7) for UPort 207A
    5 (UFP: 1, DFP 4) for UPort 204A

  • Input Voltage

    No. of power inputs: 1, 12 VDC

  • Power Connector

    Power jack

  • Power Consumption

    UPort 207A: 4.5 A @ 12 VDC
    UPort 204A: 2.65 A @ 12 VDC

  • Reverse Polarity Protection

    Supported

  • Output Power Rating

    Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible)
    Rest of ports: 900 mA @ 5 VDC

  • Housing

    Metal

  • Dimensions

    UPort 207A: 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in)
    UPort 204A: 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)

  • Weight

    UPort 207A: 273 g (0.60 lb)
    UPort 204A: 208 g (0.46 lb)

  • Installation

    DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

  • Operating Temperature

    0 to 60°C (32 to 140°F)

  • Storage Temperature

    -20 to 75°C (-4 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
    IEC 61000-4-8 PFMF

  • Safety

    EN 62368-1, UL 62368-1, KC

  • Environmental Testing

    IEC 60068-2-1

  • Freefall

    IEC 60068-2-34

  • Green Product

    RoHS, CRoHS, WEEE

  • Standards

    Telcordia (Bellcore), GB

  • Time

    UPort 207A: 1,957,123 hours
    UPort 204A: 2,678,801 hours

Support Documents

Name Type Version Release Date
Declaration of Conformity for UPort 204A/207A Series
300.4 KB
Declaration v1.0 May 15, 2024 May 15, 2024
Datasheet for UPort 200A Series
573.4 KB
Datasheet v1.2 Jan 12, 2023 Jan 12, 2023
QIG for UPort 200A Series
4.0 MB
QIG v1.0 Nov 22, 2022 Nov 22, 2022
2D CAD for UPort 200A Series
4.5 MB
2D CAD Nov 17, 2022 Nov 17, 2022

Available Models (2)

Show Images

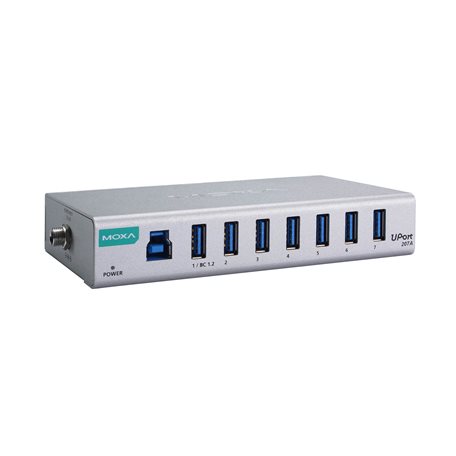

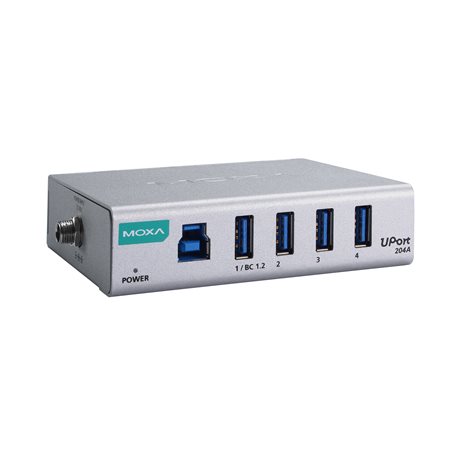

moxa-uport-207a-image.jpg | MoxaUPort 207Amoxa-uport-204a-image.jpg | MoxaUPort 204A
USB InterfaceUSB 3.2 Gen 1USB 3.2 Gen 1
No. of USB Ports7 downstream4 downstream
HousingMetalMetal
Operating Temp. 0 to 60°C 0 to 60°C
Power Adapter IncludedYY
