Industrial-Grade USB Hubs

The UPort series USB hubs are industrial-grade, and designed with the ruggedness and reliability needed for industrial applications. Each port has ESD Level 4 protection and can provide true Hi-Speed USB 2.0 data rates up to 480 Mbps—even for heavy-load applications. The UPort series includes models with dual power inputs, DIN-rail mounting options, and wide temperature models that can operate reliably even in harsh conditions.

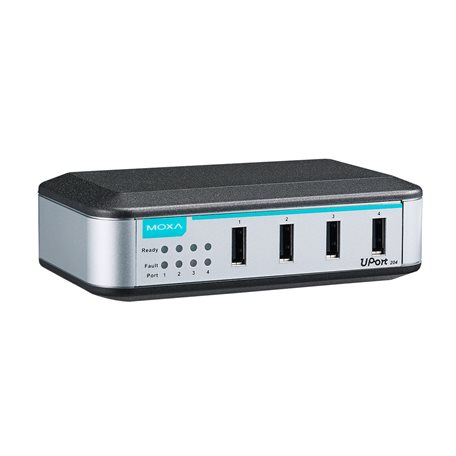

UPort 204
UPort 204/207 Series

4-port entry-level USB hub, adaptor included

USB Interface
  • Speed

    • 12 Mbps, 480 Mbps
  • USB Connector

    • USB Type B
  • USB Standards

    • USB 1.1/2.0 compliant
  • No. of USB Ports

    • 4
Power Parameters
  • Input Voltage

    • 12 to 40 VDC
  • Input Current

    • 1.21 A @ 12 VDC
Physical Characteristics
  • Housing

    • Polycarbonate (PC)
  • Dimensions

    • 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
  • Weight

    • Packaged: 805 g (1.87 lb)
      Product only: 800 g (1.76 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -20 to 75°C (-4 to 167°F)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m
      IEC 61000-4-8 PFMF
  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-3
  • Freefall

    • IEC 60068-2-34
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,577,573 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
