The UPort® 400A Series industrial-grade USB 3.2 hubs can expand an USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port, even for heavy-load applications. The UPort® 400A has been awarded the USB-IF SuperSpeed certification, which is an indication that the product is a reliable high-quality USB 3.2 hub. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide full 900 mA power per port, ensuring that your USB devices function properly. The UPort® 400A hubs support a 12 to 48 VDC power range, which make them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
The UPort® 404A USB 2.0 industrial-grade USB hubs have been awarded the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the SuperSpeed USB operation of USB hubs designed as per the USB 3.2/2.0 specification. This means that the UPort® 400A supports SuperSpeed USB 3.2 Gen 1 for up to 5 Gbps USB transmission, is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to SuperSpeed operation from the suspended state.
Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 400A Series USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.
UPort® 400A comes with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer.
Save
USB 3.2 Gen 1 USB 1.1/2.0 compliant
5 Gbps
UFP: type BDFP: type A

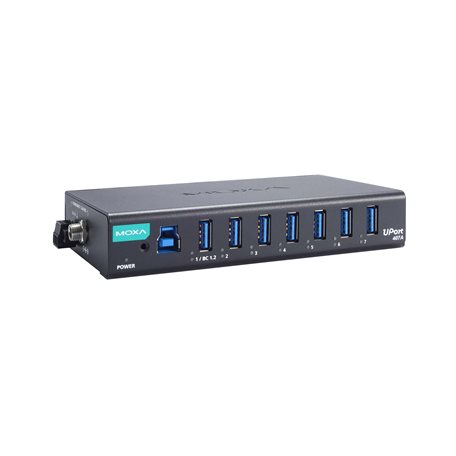

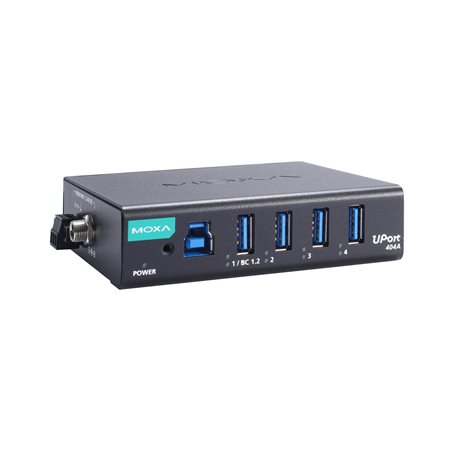

8 (UFP: 1, DFP 7) for UPort 407A models5 (UFP: 1, DFP 4) for UPort 404A models
12 to 48 VDC No. of power inputs: 2
Power jack 3-pin terminal block
Supported
UPort 407A Models: 4.75A @ 12 VDCUPort 404A Models: 2.8A @ 12 VDC
Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliantRest of ports: 900 mA @ 5 VDC
Metal
UPort 407A models: 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in)UPort 404A models: 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)
UPort 407A models: 350 g (0.77 lb)UPort 404A models: 264 g (0.58 lb)
Wall mounting (with optional kit) DIN-rail mounting (with optional kit)
Standard Models: 0 to 60°C (32 to 140°F)Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Standard Models: -20 to 75°C (-4 to 167°F)Wide Temp. Models: -40 to 85°C (-40 to 185°F)
5 to 95% (non-condensing)
EN 55032/35
CISPR 32, FCC Part 15B Class A
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m IEC 61000-4-8 PFMF
EN 62368-1 UL 62368-1 KC
IEC 60068-2-1
IEC 60068-2-34
RoHS, CRoHS, WEEE
Telcordia (Bellcore), GB
UPort 407A Models: 1,467,922 hours (minimum)UPort 404A Models: 2,107,973 hours (minimum)
