UPort 1100 Series

1-port RS-232, RS-422/485, and RS-232/422/485 USB-to-serial converters

moxa-uport-1100-series-image-(1).jpg | Moxa

Features and Benefits

  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for Windows, macOS, Linux, and WinCE
  • Mini-DB9-female-to-terminal-block adapter for easy wiring
  • LEDs for indicating USB and TxD/RxD activity
  • 2 kV isolation protection (for “-I” models)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The UPort® 1100 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1100 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

  • Speed

    12 Mbps

  • USB Connector

    UPort 1110/1130/1130I/1150: USB Type A
    UPort 1150I: USB Type B

  • USB Standards

    USB 1.0/1.1 compliant, USB 2.0 compatible

  • No. of Ports

    1

  • Connector

    DB9 male

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Isolation

    UPort 1130I/1150I: 2kV

  • Serial Standards

    UPort 1110: RS-232
    UPort 1130/1130I: RS-422, RS-485
    UPort 1150/1150I: RS-232, RS-422, RS-485

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Voltage

    5 VDC

  • Input Current

    UPort 1110: 30 mA
    UPort 1130: 60 mA
    UPort 1130I: 65 mA
    UPort 1150: 77 mA
    UPort 1150I: 260 mA

  • Housing

    UPort 1110/1130/1130I/1150: ABS + Polycarbonate
    UPort 1150I: Metal

  • Dimensions

    UPort 1110/1130/1130I/1150:
    37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
    UPort 1150I:
    52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)

  • Weight

    UPort 1110/1130/1130I/1150: 65 g (0.14 lb)
    UPort 1150I: 75 g (0.16 lb)

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -20 to 70°C (-4 to 158°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class 1

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    1,949,025 hrs

  • Standards

    MIL-HDBK-217F
    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Driver for UPort 1100 Series (Linux kernel 5.x)
225.1 KB
Driver
SHA-512
v5.1
  • Linux Kernel 5.x
Sep 02, 2021 Sep 02, 2021 Release notes
Driver for UPort 1100 Series (Linux kernel 4.x)
213.2 KB
Driver
SHA-512
v4.1
  • Linux Kernel 4.x
Sep 02, 2021 Sep 02, 2021 Release notes
Driver for UPort 1100 Series (macOS 10.12 to 10.15)
107.4 KB
Driver
SHA-512
v1.0
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
Jun 24, 2020 Jun 24, 2020 Release notes
Driver for UPort 1100 Series (Windows 7 or Windows Server 2008 R2 and later, Windows WHQL certified)
1.9 MB
Driver
SHA-512
v3.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Feb 14, 2020 Feb 14, 2020 Release notes
Driver for UPort 1100 Series (Linux kernel 3.0)
88.3 KB
Driver
SHA-512
v3.0
  • Linux Kernel 3.x
Nov 12, 2019 Nov 12, 2019 Release notes
Driver for UPort 1100 Series (Linux kernel 2.4.x/2.6.x)
172.2 KB
Driver
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
Nov 12, 2019 Nov 12, 2019 Release notes
Driver for UPort 1100 Series (Windows CE 5.0)
328.6 KB
Driver
SHA-512
v1.1
  • Windows CE 5.0
Jan 15, 2019 Jan 15, 2019 Release notes
Driver for UPort 1100 Series (Windows CE 6.0)
320.0 KB
Driver
SHA-512
v1.0
  • Windows CE 6.0
Jan 15, 2019 Jan 15, 2019 Release notes
Driver for UPort 1100 Series (Windows XP or Windows Server 2000 and prior, WHQL certified)
2.1 MB
Driver
SHA-512
v2.0
  • Windows 2000
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Sep 03, 2018 Sep 03, 2018 Release notes
Driver for UPort 1100 Series (Android)
4.3 MB
Driver
SHA-512
v1.0
  • Android
Aug 23, 2013 Aug 23, 2013 Release notes
Utility for UPort 1100 Series (PComm Lite)
1.6 MB
Utility
SHA-512
v1.6
  • Windows
May 14, 2012 May 14, 2012 Release notes
Utility for UPort 1100 Series (ViewCOM for Windows Vista/XP/2000/2003/2008)
434.6 KB
Utility
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Jul 12, 2010 Jul 12, 2010 Release notes

Support Documents

Name Type Version Release Date
Tech Note: Uport Driver Porting Guide for Arm-based Platforms
388.6 KB
Tech Note v1.0 Oct 21, 2021 Oct 21, 2021
QIG for UPort 1100 Series
279.4 KB
QIG v8.1 May 06, 2021 May 06, 2021
Datasheet for UPort 1100 Series
875.2 KB
Datasheet v1.0 Dec 15, 2020 Dec 15, 2020
Manual for UPort 1100 Series
3.6 MB
Manual v9.0 Mar 21, 2017 Mar 21, 2017
2D CAD for UPort 1150I
156.0 KB
2D CAD Nov 05, 2008 Nov 05, 2008
2D CAD for UPort 1110/1130/1150 TOP
322.1 KB
2D CAD Nov 05, 2008 Nov 05, 2008

Available Models (5)

Show Images

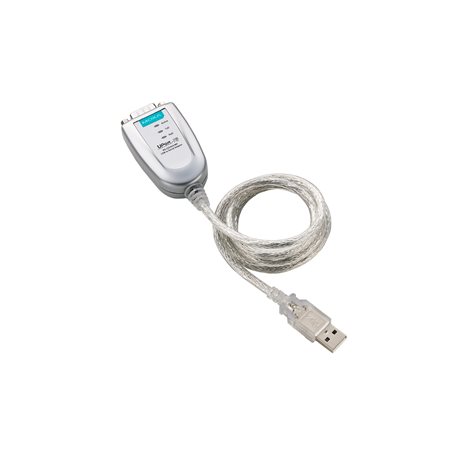

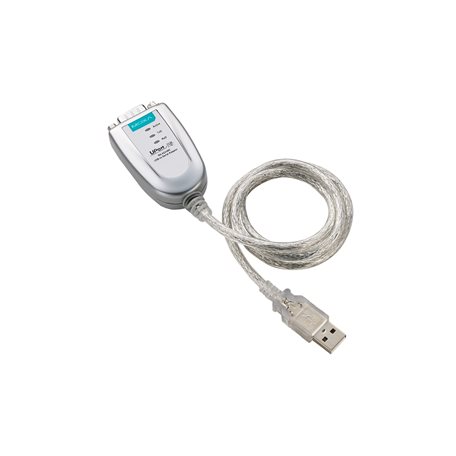

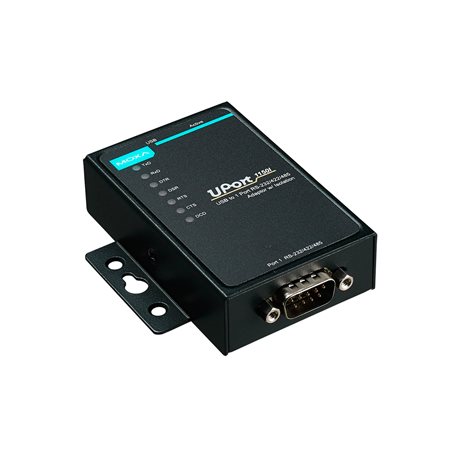

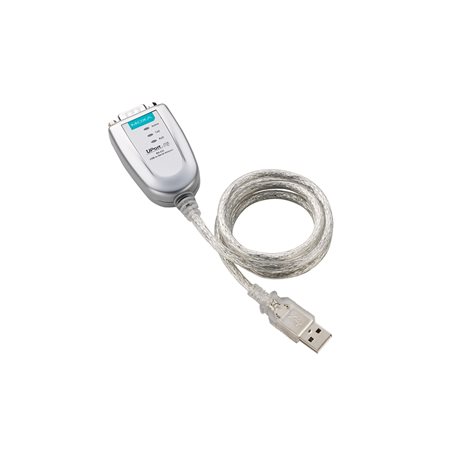

moxa-uport-1150-image.jpg | MoxaUPort 1150moxa-uport-1130-image.jpg | MoxaUPort 1130moxa-image.jpg | MoxaUPort 1110moxa-uport-1150i-image.jpg | MoxaUPort 1150I
USB InterfaceUSB 1.1USB 1.1USB 1.1USB 1.1
Serial StandardsRS-232/422/485RS-422/485RS-232RS-232/422/485
No. of Serial Ports1111
Isolation2 kV
Housing MaterialABS+PCABS+PCABS+PCMetal
Operating Temp.0 to 55°C0 to 55°C0 to 55°C0 to 55°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

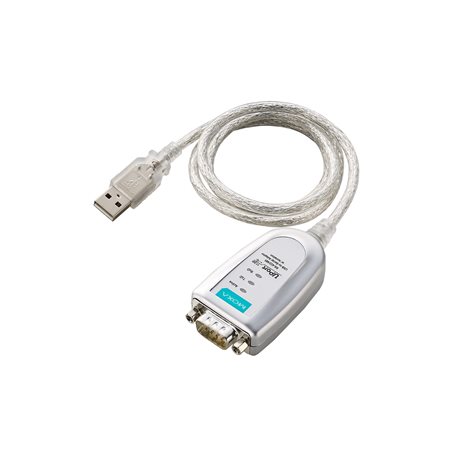

moxa-uport-1130i-image.jpg | MoxaUPort 1130I
