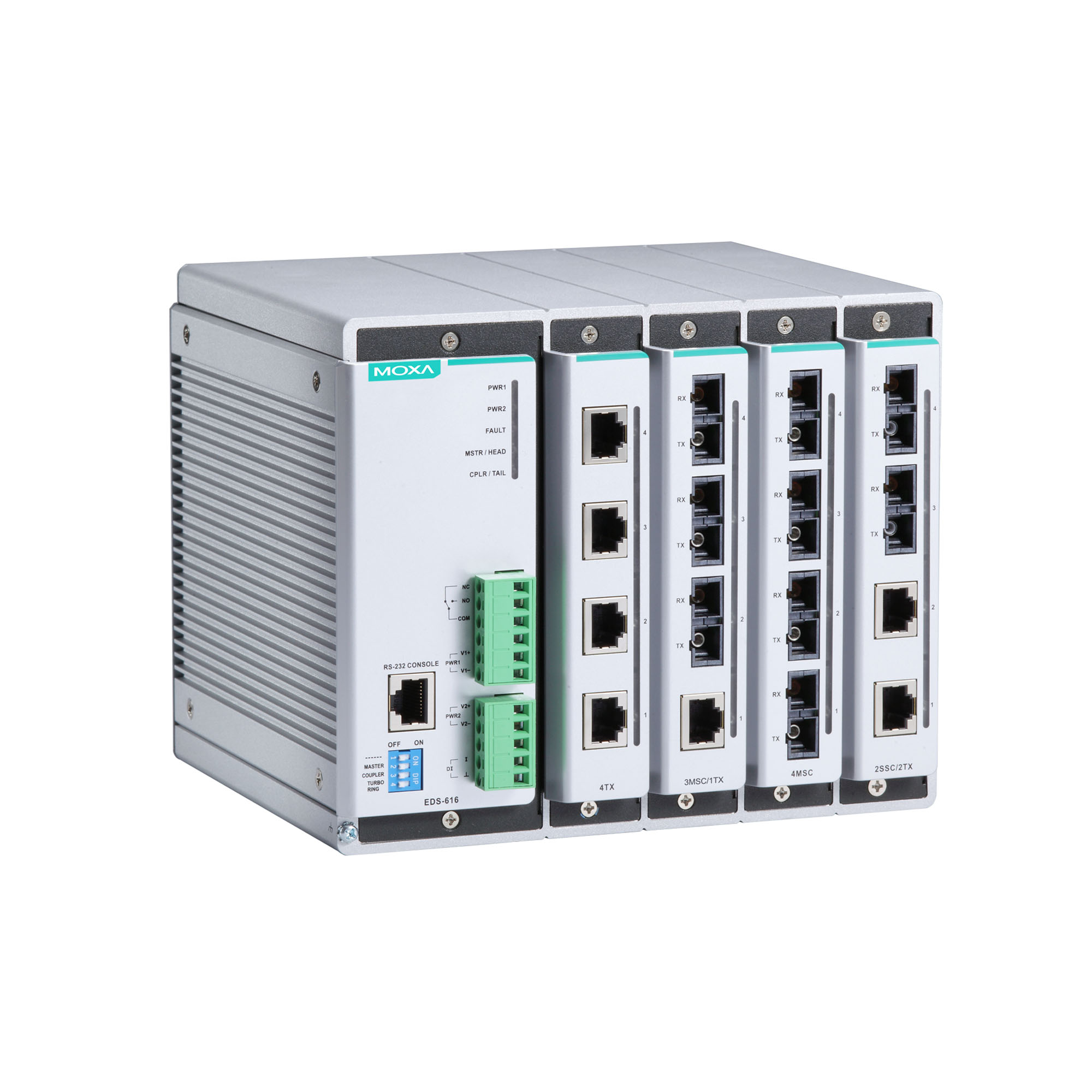

EDS-616 Series

16-port compact modular managed Ethernet switches

moxa-eds-616-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Modular design with 4-port copper/fiber combinations
  • Hot-swappable media modules for continuous operation
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) If the port link speed is 1 Gigabit or higher, the recovery time is < 50 ms. , and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management

Certifications

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

Contact Sales

Introduction

The versatile modular design of the compact EDS-616 Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-616’s modular design lets you install up to 16 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-616 Series supports several reliable and intelligent functions, including EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • SNMP Inform for ensuring reliable event management

  • LLDP for automated topology discovery

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Compatible with PROFINET protocol for transparent data transmission

  • Port mirroring for online debugging

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Automatic warning by exception through email and relay output

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Alarm Contact Channels

    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Module

    4 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control

  • Filter

    GMRP
    GVRP
    IGMP v1/v2
    Port-based VLAN

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP

  • Management

    Back Pressure Flow Control
    BOOTP
    DHCP Option 66/67/82
    DHCP Server/Client
    Flow control
    IPv4/IPv6
    LLDP
    Port Mirror
    RARP
    RMON
    SMTP
    SNMP Inform
    SNMPv1/v2c/v3
    Syslog
    Telnet
    TFTP

  • MIB

    Bridge MIB
    Ethernet-like MIB
    MIB-II
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • Redundancy Protocols

    Link Aggregation
    MSTP
    RSTP
    STP
    Turbo Chain
    Turbo Ring v1/v2

  • Security

    Broadcast storm protection
    HTTPS/SSL
    Port Lock
    RADIUS
    SSH
    TACACS+

  • Time Management

    NTP Server/Client
    SNTP

  • IGMP Groups

    256

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    64

  • Packet Buffer Size

    1 Mbits

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • LED Indicators

    PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

  • Console Port

    RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

  • Ethernet Interface

    Turbo Ring, Master, Coupler, Reserve

  • Connection

    1 removable 6-contact terminal block(s)

  • Input Voltage

    12/24/48 VDC
    Redundant dual inputs

  • Input Current

    2.4 A @ 12 VDC
    Note: These are the input current ratings for the device with the maximum number of modules installed.

  • Power Consumption (Max.)

    28.8 W @ 12 VDC
    Note: These are the power consumption ratings for the device with the maximum number of modules installed.

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • IP Rating

    IP30

  • Dimensions

    185 x 151 x 157.4 mm (7.28 x 5.95 x 6.20 in)

  • Weight

    2,448 g (5.40 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    EDS-616: 0 to 60°C (32 to 140°F)
    EDS-616-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Freefall

    IEC 60068-2-32

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Maritime

    ABS
    DNV
    LR
    NK

  • Railway

    EN 50121-4

  • Safety

    EN 62368-1
    UL 508

  • Shock

    IEC 60068-2-27

  • Traffic Control

    NEMA TS2

  • Vibration

    IEC 60068-2-6

  • Time

    546,937 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Software Package for MXview One Series (Windows version)
300.8 MB
Software Package
SHA-512
v1.4.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Sep 20, 2024 Sep 20, 2024 Release notes
Software Package for MXview One Series (Linux version)
404.8 MB
Software Package
SHA-512
v1.4.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
Sep 20, 2024 Sep 20, 2024 Release notes
Firmware for EDS-616 Series
2.2 MB
Firmware
SHA-512
v3.12
Feb 07, 2024 Feb 07, 2024 Release notes
Firmware for EDS-616 Series
2.2 MB
Firmware
SHA-512
v3.11
Aug 31, 2023 Aug 31, 2023 Release notes
EDS file for EDS-616 Series
10.1 KB
Software Package
SHA-512
v1.4
Aug 31, 2023 Aug 31, 2023 Release notes
Modbus File for Moxa Managed Ethernet Switches
2.3 KB
Software Package
SHA-512
v1.0
Aug 31, 2023 Aug 31, 2023 Release notes
SNMP MIB file for EDS-616 Series
145.9 KB
Software Package
SHA-512
v3.9
Aug 31, 2023 Aug 31, 2023 Release notes
EtherNet/IP AOI (16P) for EDS-616 Series
82.9 KB
Software Package
SHA-512
v1.2.0
Jan 18, 2018 Jan 18, 2018 Release notes
Firmware for EDS-616 Series
1.9 MB
Firmware
SHA-512
v3.8
May 03, 2017 May 03, 2017 Release notes
Moxa Ethernet Switch and Video Server Configurator
1.6 MB
Utility
SHA-512
v5.3
  • Windows
  • Windows XP
Apr 09, 2012 Apr 09, 2012 Release notes

Support Documents

Name Type Version Release Date
FOSS Statement for EDS, EOM, IKS, ICS, SDS Series products
334.0 KB
Declaration v1.0 Jul 31, 2024 Jul 31, 2024
QIG for EDS-608/611/616/619 Series
3.3 MB
QIG v5.6 Jun 12, 2024 Jun 12, 2024
Declaration of Conformity for EDS-608/EDS-611/EDS-616/EDS-619/CM-600 series
451.5 KB
Declaration v1.0 Feb 05, 2024 Feb 05, 2024
Industrial Protocol Users Guide
13.1 MB
Manual v6.5 Aug 31, 2023 Aug 31, 2023
Moxa Managed Ethernet Switch User Manual
7.8 MB
Manual v9.9 Aug 31, 2023 Aug 31, 2023
Datasheet for EDS-616 Series
905.9 KB
Datasheet v1.6 Jun 30, 2023 Jun 30, 2023
Managed Ethernet Switch User Manual
6.4 MB
Manual v9.8 Nov 25, 2022 Nov 25, 2022
Industrial Protocol Users Guide
11.9 MB
Manual v6.3 Sep 12, 2022 Sep 12, 2022
Moxa Managed Ethernet Switch User's Manual
6.4 MB
Manual v9.7 Jun 29, 2022 Jun 29, 2022
Tech Note: Turbo Chain
59.1 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Turbo Ring
59.2 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Ring Coupling for a Turbo Ring
60.4 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Dual Ring for Turbo Ring V2
59.6 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Ring Coupling for Turbo Ring V2
64.3 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Turbo Ring V2
54.9 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Dual Homing for Turbo Ring V2
70.4 KB
Tech Note v1.0 Feb 21, 2019 Feb 21, 2019
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB
Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
Moxa Command Line Interface (FW 4.x) User's Manual
2.3 MB
Manual v5.2 Feb 12, 2019 Feb 12, 2019
2D CAD for EDS-616
495.1 KB
2D CAD Jan 19, 2018 Jan 19, 2018

Available Models (2)

Show Images

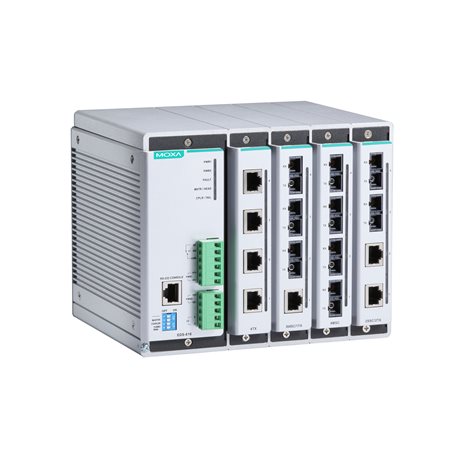

moxa-eds-616-image.jpg | MoxaEDS-616moxa-eds-616-t-image.jpg | MoxaEDS-616-T
Layer22
Total No. of Ports1616
Module
10/100BaseT(X) and/or 100BaseFX
4 slots for up to 16 10/100BaseT(X) and/or 100BaseFX ports4 slots for up to 16 10/100BaseT(X) and/or 100BaseFX ports
Operating Temp.0 to 60°C-40 to 75°C
