PM-7200 Module Series

Gigabit and Fast Ethernet modules for PT Series rackmount Ethernet switches

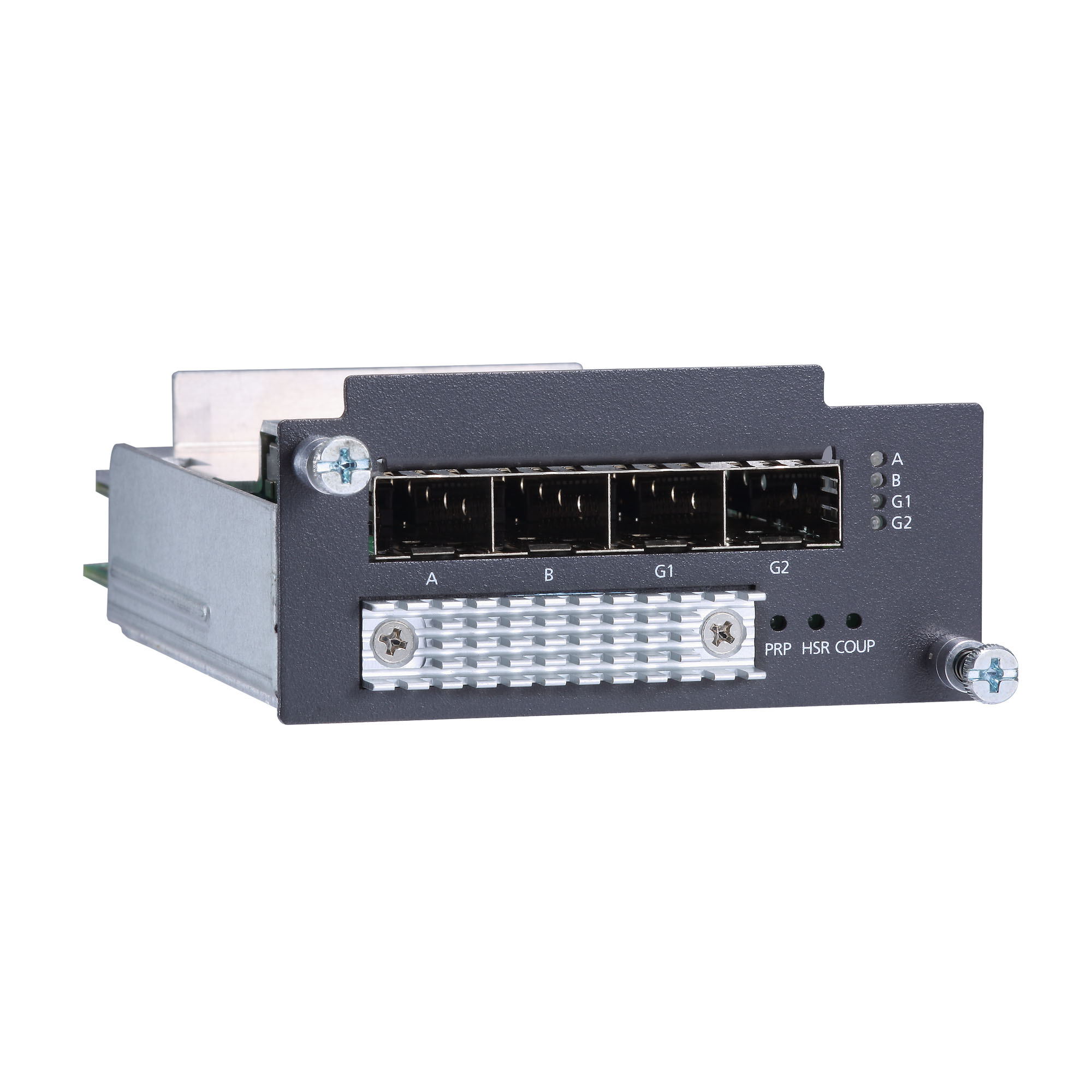

moxa-pm-7200-module-series-image-1-(1).jpg | Moxa

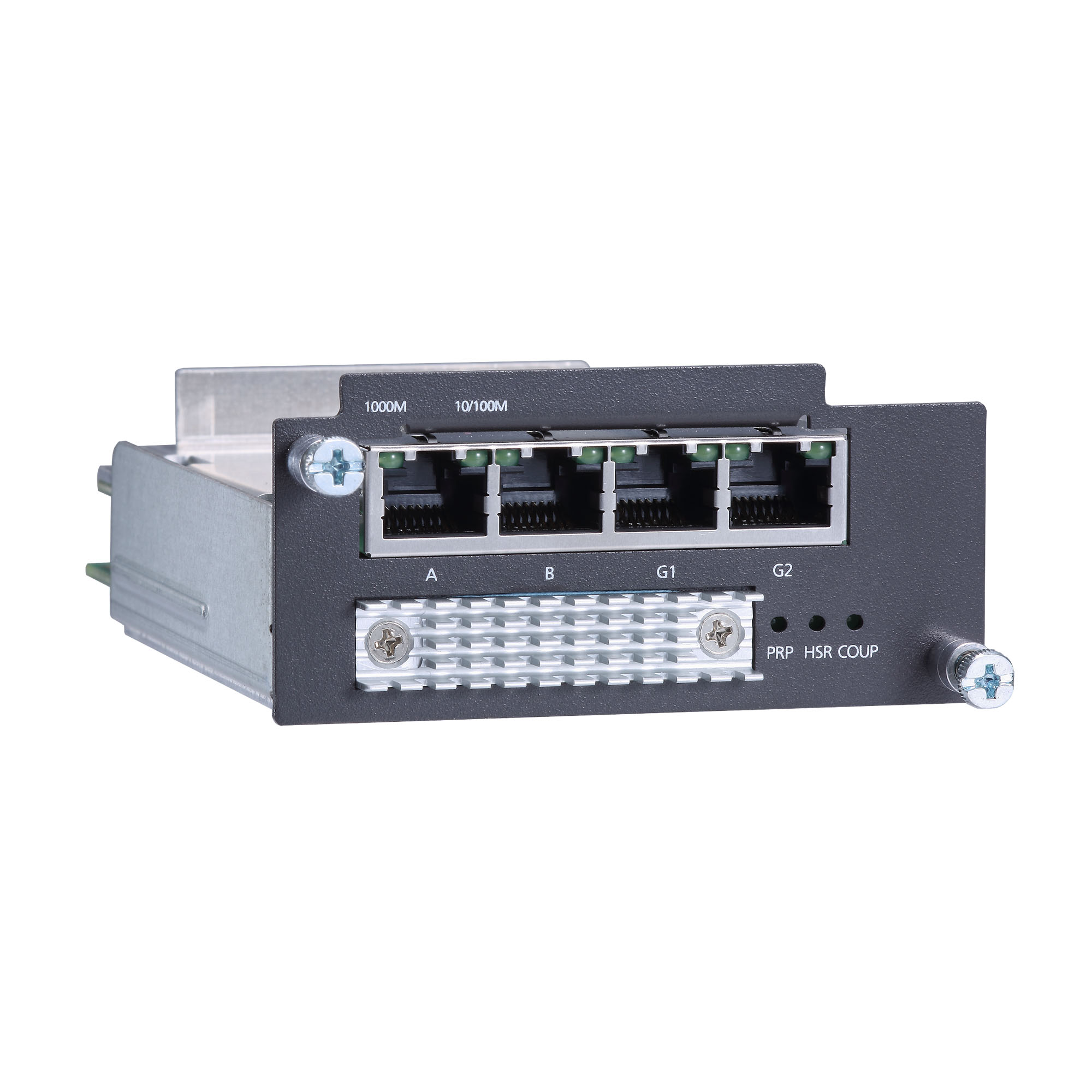

moxa-pm-7200-module-series-image-2-(1).jpg | Moxa

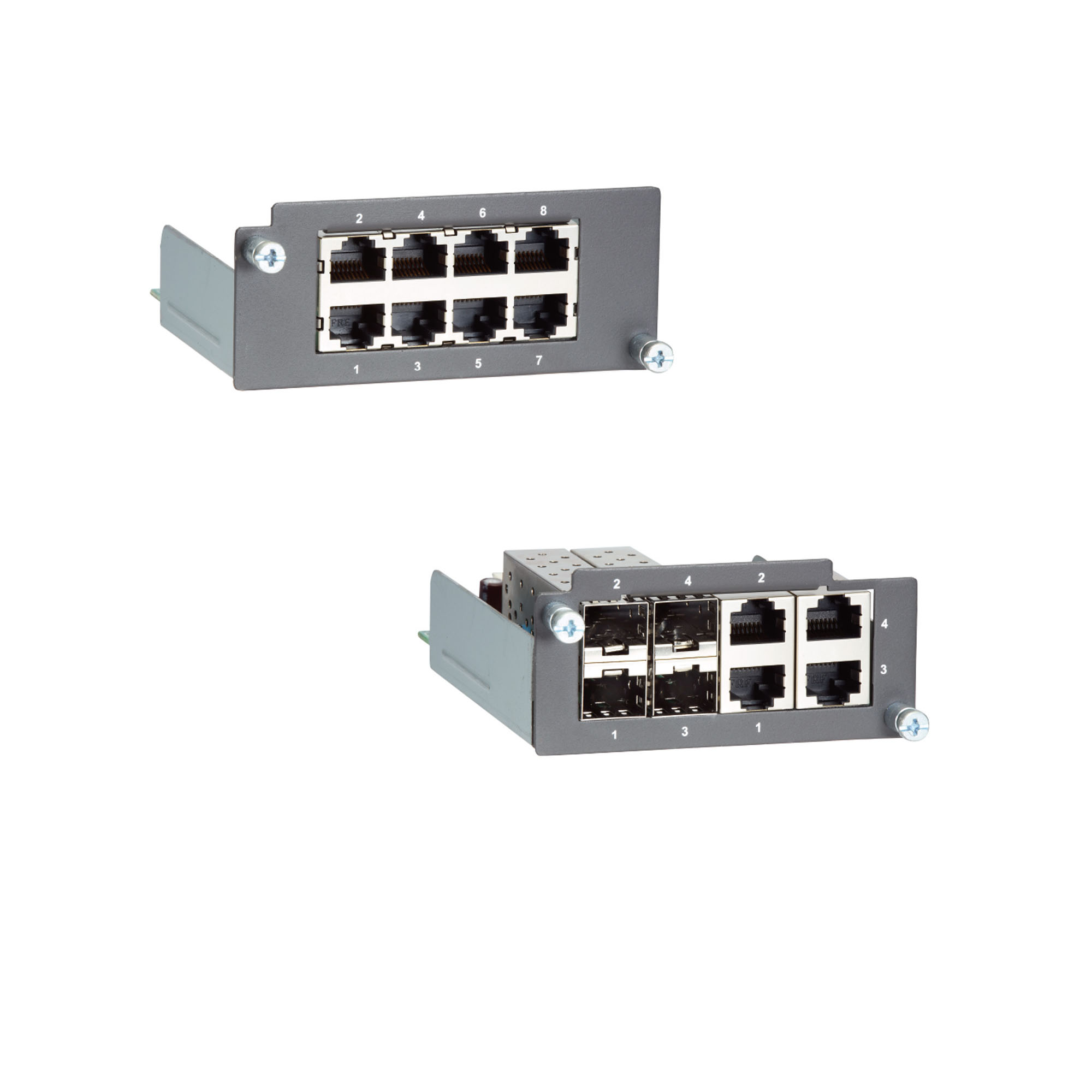

moxa-pm-7200-module-series-image-3-(1).jpg | Moxa

Features and Benefits

  • -40 to 85°C wide operating temperature
  • IEC 61850-3 and IEEE 1613 compliant

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The PM-7200 Module Series includes Gigabit and Fast Ethernet modules for the PT Series rackmount Ethernet switches. IEEE 1588 interface modules provide hardware-based PTP functions for precise time synchronization across the network.

  • Time Management

    PTP models: IEEE 1588 PTP v1/v2 (hardware-based)

  • Redundancy Protocols

    PM-7200-PHR-PTP Series: HSR, PRP

  • Combo Ports (10/100/1000BaseT(X) or 1000BaseSFP)

    PM-7200-2GTXSFP: 2
    PM-7200-4GTXSFP: 4

  • 10/100/1000BaseT(X) Ports PRP/HSR Ports

    PM-7200-4GTX-PHR-PTP: 2

  • 100/1000BaseSFP PRP/HSR Ports

    PM-7200-4GSFP-PHR-PTP: 2

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    PM-7200-4GTX-PHR-PTP: 2

  • 100/1000BaseSFP Ports

    PM-7200-4GSFP-PHR-PTP: 2

  • 10/100BaseT(X) Ports (RJ45 connector)

    PM-7200-2TX Series: 2
    PM-7200-4TX Series: 4
    PM-7200-8TX: 8

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    PM-7200-4M12: 4

  • 100BaseSFP Slots

    PM-7200-8SFP: 8

  • 100BaseFX Ports (multi-mode SC connector)

    PM-7200-1MSC: 1
    PM-7200-2MSC Series: 2
    PM-7200-4MS Series: 4
    PM-7200-6MSC: 6

  • 100BaseFX Ports (multi-mode ST connector)

    PM-7200-1MST: 1
    PM-7200-2MST Series: 2
    PM-7200-4MST Series: 4
    PM-7200-6MST: 6

  • 100BaseFX Ports (single-mode SC connector)

    PM-7200-2SSC Series: 2
    PM-7200-4SSC2TX: 4
    PM-7200-6SSC: 6

  • 100BaseFX Ports, Multi-Mode MTRJ Connector

    PM-7200-8MTRJ: 8

  • PPS Output, BNC Connector

    PM-7200-1BNC2MST-PTP: 1

  • Optical Fiber

Support Documents

Name Type Version Release Date
Datasheet for PM-7200 Module Series
282.8 KB
Datasheet v1.1 2019-04-26 Apr 26, 2019
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB
Tech Note v1.0 2019-02-12 Feb 12, 2019
Datasheet for PM-7200 Module Series
281.2 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
2D CAD for PM-7200-4MSC-PTP
312.4 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4MST-PTP
334.8 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4TX-PTP
273.6 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-1BNC2MSC
266.2 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-1BNC2MST
324.2 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4GTXSFP
2.4 MB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-6SSC
2.4 MB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PT-7200-8SFP
2.4 MB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-1LSC6TX
84.3 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-1MSC
61.5 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-1MST
61.4 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-2GTXSFP
71.1 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-2MSC
66.4 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-2MSC4TX-2SSC4TX
81.5 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-2MST
66.3 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-2MST4TX
83.2 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4MSC2TX-4SSC2TX
89.6 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4MST2TX
88.7 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-6MSC
89.1 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-6MST
88.6 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-8TX
68.5 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4FIBER-PTP PCBA
574.7 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4TX-PTP PCBA
695.2 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4GSFP-PHR
471.2 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4GTX-PHR
517.1 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-2MTRJ TOP
140.0 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4MST-FL PCBA
266.1 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-4MST-FL TOP
211.5 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-8MTRJ PCBA
269.9 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-8MTRJ TOP
143.5 KB
2D CAD 2018-01-19 Jan 19, 2018
2D CAD for PM-7200-1BNC2MST PCBA
492.3 KB
2D CAD 2018-01-19 Jan 19, 2018
Moxa Command Line Interface (FW 4.x) User's Manual
2.3 MB
Manual v5.2 2017-10-19 Oct 19, 2017
Communication Redundancy User's Manual
1.2 MB
Manual v5.0 2014-08-13 Aug 13, 2014

Available Models (26)

Show Images
PM-7200-1MSCmoxa-pm-7200-1mst-image.jpg | MoxaPM-7200-1MSTmoxa-pm-7200-2gtxsfp-image.jpg | MoxaPM-7200-2GTXSFPmoxa-pm-7200-2msc-image.jpg | MoxaPM-7200-2MSC
1000 Mbps2 x combo port,
10/100/1000BaseT(X)
or 1000BaseSFP
100 Mbps1 x 100BaseFX, multi-mode, SC connector1 x 100BaseFX, multi-mode, ST connector2 x 100BaseFX, multi-mode, SC connector
PPS Output
Hardware-Based IEEE 1588 PTP V2
PRP/HSR
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pm-7200-2msc4tx-image.jpg | MoxaPM-7200-2MSC4TXmoxa-pm-7200-2mst-image.jpg | MoxaPM-7200-2MSTmoxa-pm-7200-2mst4tx-image.jpg | MoxaPM-7200-2MST4TXmoxa-pm-7200-2ssc-image.jpg | MoxaPM-7200-2SSC
1000 Mbps
100 Mbps4 x 10/100BaseT(X)
2 x 1000BaseFX, multi-mode, SC connector
2 x 100BaseFX, multi-mode, ST connector4 x 10/100BaseT(X)
2 x 100BaseFX, multi-mode, ST connector
2 x 100BaseFX, single-mode, SC connector
PPS Output
Hardware-Based IEEE 1588 PTP V2
PRP/HSR
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pm-7200-2ssc4tx-image.jpg | MoxaPM-7200-2SSC4TXmoxa-pm-7200-4gtxsfp-image.jpg | MoxaPM-7200-4GTXSFPmoxa-pm-7200-4m12-image.jpg | MoxaPM-7200-4M12moxa-pm-7200-4msc2tx-image.jpg | MoxaPM-7200-4MSC2TX
1000 Mbps4 x combo port,
10/100/1000BaseT(X)
or 1000BaseSFP
100 Mbps4 x 10/100BaseT(X)
2 x 100BaseFX, single-mode, SC connector
4 x 10/100BaseT(X), M12 connectors2 x 10/100BaseT(X)
4 x 100BaseFX, multi-mode, SC connector
PPS Output
Hardware-Based IEEE 1588 PTP V2
PRP/HSR
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pm-7200-4mst2tx-image.jpg | MoxaPM-7200-4MST2TXmoxa-pm-7200-4ssc2tx-image.jpg | MoxaPM-7200-4SSC2TXmoxa-pm-7200-6msc-image.jpg | MoxaPM-7200-6MSCmoxa-pm-7200-6mst-image.jpg | MoxaPM-7200-6MST
1000 Mbps
100 Mbps2 x 10/100BaseT(X)
4 x 100BaseFX, multi-mode, ST connector
2 x 10/100BaseT(X)
4 x 100BaseFX, single-mode, SC connector
6 x 100BaseFX, multi-mode, SC connector6 x 100BaseFX, multi-mode, ST connector
PPS Output
Hardware-Based IEEE 1588 PTP V2
PRP/HSR
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pm-7200-6ssc-image.jpg | MoxaPM-7200-6SSCmoxa-pm-7200-8sfp-image.jpg | MoxaPM-7200-8SFPmoxa-pm-7200-8tx-image.jpg | MoxaPM-7200-8TXmoxa-pm-7200-1bnc2mst-ptp-image.jpg | MoxaPM-7200-1BNC2MST-PTP
1000 Mbps
100 Mbps6 x 100BaseFX, single-mode, SC connector8 x 100BaseFX8 x 10/100BaseT(X)2 x 100BaseFX, multi-mode, ST connector
PPS Output1 x BNC connector
Hardware-Based IEEE 1588 PTP V2
PRP/HSR
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pm-7200-8mtrj-image.jpg | MoxaPM-7200-8MTRJmoxa-pm-7200-4tx-ptp-image.jpg | MoxaPM-7200-4TX-PTPmoxa-pm-7200-4mst-ptp-image.jpg | MoxaPM-7200-4MST-PTPmoxa-pm-7200-4msc-ptp-image.jpg | MoxaPM-7200-4MSC-PTP
1000 Mbps
100 Mbps8 x 100BaseFX, multi-mode, MTRJ connector4 x 10/100BaseT(X)4 x 100BaseFX, multi-mode, ST connector4 x 100BaseFX, multi-mode, SC connector
PPS Output
Hardware-Based IEEE 1588 PTP V2
PRP/HSR
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-pm-7200-4gtx-phr-ptp-image.jpg | MoxaPM-7200-4GTX-PHR-PTPmoxa-pm-7200-4gsfp-phr-ptp-image.jpg | MoxaPM-7200-4GSFP-PHR-PTP
1000 Mbps2 x 10/100/1000BaseT(X)2 x 100/1000BaseSFP
100 Mbps
PPS Output
Hardware-Based IEEE 1588 PTP V2
PRP/HSR2 x 10/100/1000BaseT(X) PRP/HSR ports2 x 100/1000BaseSFP PRP/HSR ports
Operating Temp.-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView Bag
