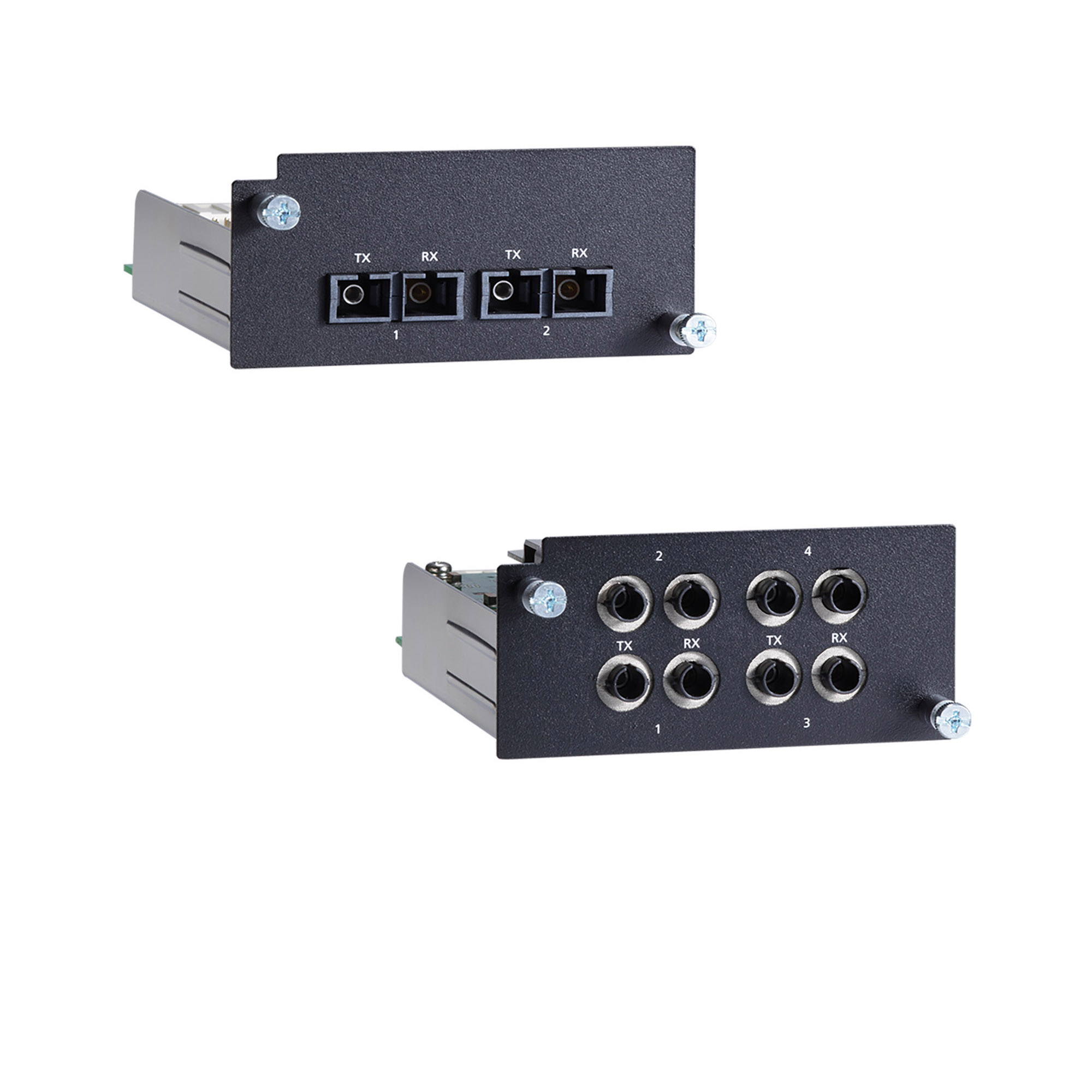

PM-7500 Module Series

Gigabit and Fast Ethernet modules for the PT-7528-24TX Series rackmount Ethernet switches

moxa-pm-7500-module-series-image-1-(1).jpg | Moxa
moxa-pm-7500-module-series-image-2-(1).jpg | Moxa
moxa-pm-7500-module-series-image-3-(1).jpg | Moxa
moxa-pm-7500-module-series-image-4-(1).jpg | Moxa
moxa-pm-7500-module-series-image-5-(1).jpg | Moxa
moxa-pm-7500-module-series-image-6-(1).jpg | Moxa
moxa-pm-7500-module-series-image-7-(1).jpg | Moxa

Features and Benefits

  • -40 to 85°C wide operating temperature
  • IEC 61850-3 and IEEE 1613 compliant

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The PM-7500 Module Series includes Gigabit and Fast Ethernet modules for the PT-7528-24TX Series rackmount Ethernet switches.

  • 100BaseFX Ports (multi-mode SC connector)

    PM-7500-2MSC: 2
    PM-7500-4MSC: 4

  • 100BaseFX Ports (multi-mode ST connector)

    PM-7500-2MST: 2
    PM-7500-4MST: 4

  • 100BaseFX Ports (single-mode SC connector)

    PM-7500-2SSC: 2
    PM-7500-4SSC: 4

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    PM-7500-2GTXSFP: 2
    PM-7500-4GTXSFP: 4

  • Optical Fiber

    100BaseFX
    Multi-Mode Single-Mode
    Fiber Cable Type OM1 50/125 µm G.652
    800 MHz x km
    Typical Distance 4 km 5 km 40 km
    Wavelength Typical (nm) 1300 1310
    TX Range (nm) 1260 to 1360 1280 to 1340
    RX Range (nm) 1100 to 1600 1100 to 1600
    Optical Power TX Range (dBm) -10 to -20 0 to -5
    RX Range (dBm) -3 to -32 -3 to -34
    Link Budget (dB) 12 29
    Dispersion Penalty (dB) 3 1
    Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
    Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Support Documents

FILTER

All 2D CAD Datasheet Manual Tech Note
Name Type Version Release Date
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB 		Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
Datasheet for PM-7500 Module Series
342.1 KB 		Datasheet v1.0 Nov 12, 2018 Nov 12, 2018
2D CAD for PM-7500-2MSC TOP
27.7 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-2MST
389.8 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-2MST TOP
28.3 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-4GTXSFP
351.2 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-2GTXSFP
348.4 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-1MSC TOP
26.9 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-2MSC
240.5 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-1MST TOP
27.2 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-4MSC
373.1 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-4MSC TOP
29.4 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-4MST
417.0 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
2D CAD for PM-7500-4MST TOP
31.1 KB 		2D CAD Jan 19, 2018 Jan 19, 2018
Manual for PT-7528 Series
4.9 MB 		Manual v3.1 Oct 20, 2017 Oct 20, 2017
Moxa Command Line Interface (FW 4.x) User's Manual
2.3 MB 		Manual v5.2 Oct 19, 2017 Oct 19, 2017
Communication Redundancy User's Manual
1.2 MB 		Manual v5.0 Aug 13, 2014 Aug 13, 2014

Available Models (8)

Show Images
Compare

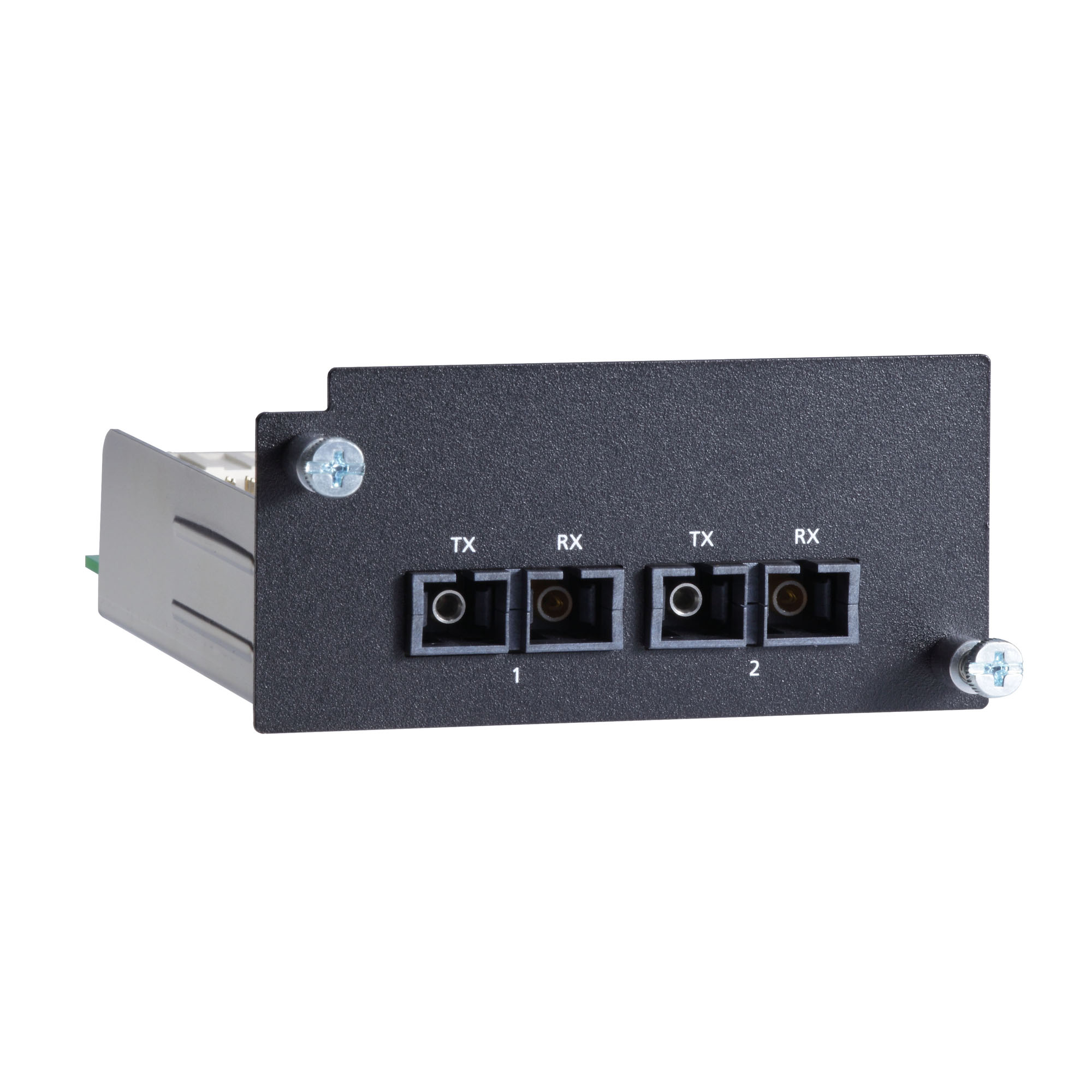

moxa-pm-7500-2msc-image.jpg | MoxaPM-7500-2MSC
Compare

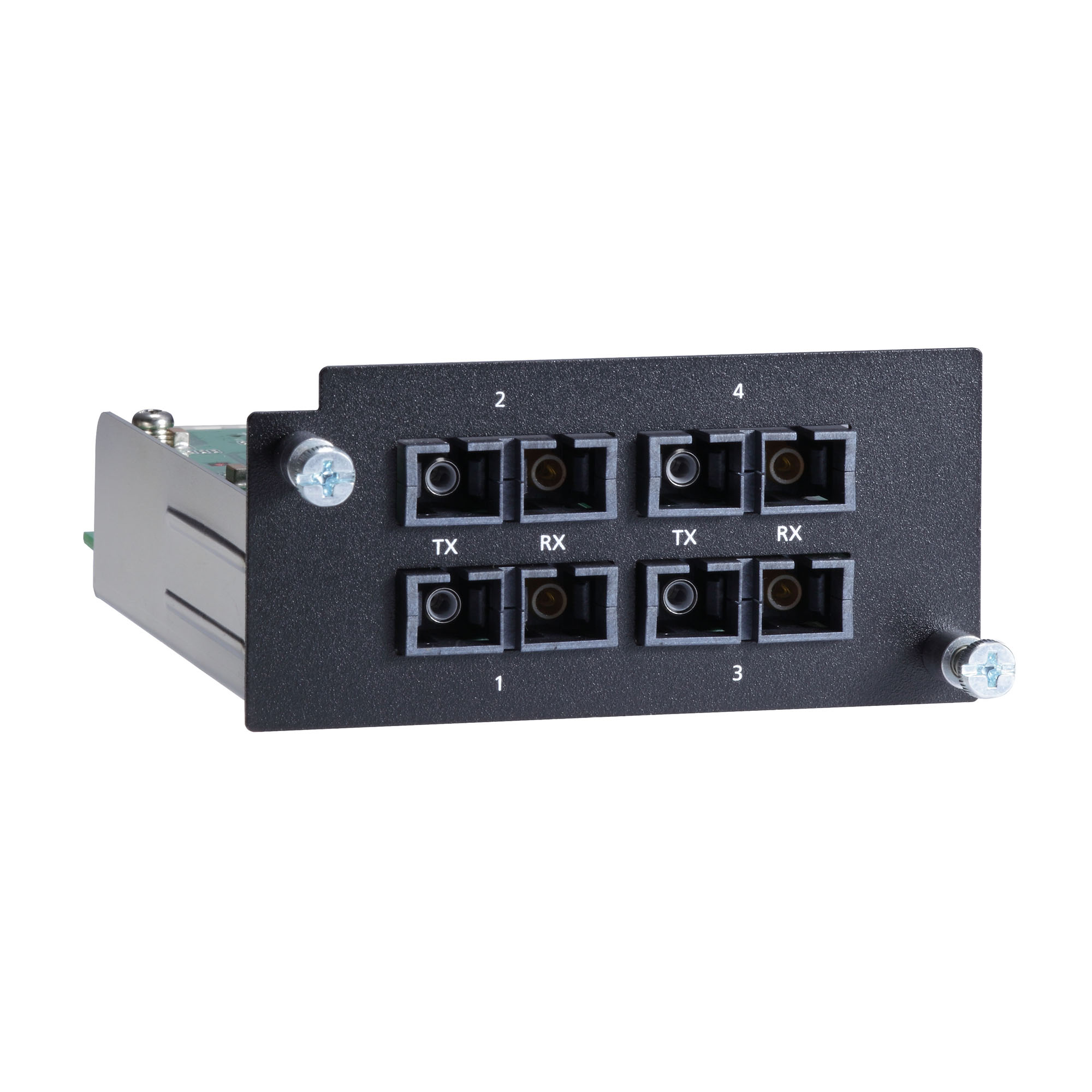

moxa-pm-7500-4msc-image.jpg | MoxaPM-7500-4MSC
Compare

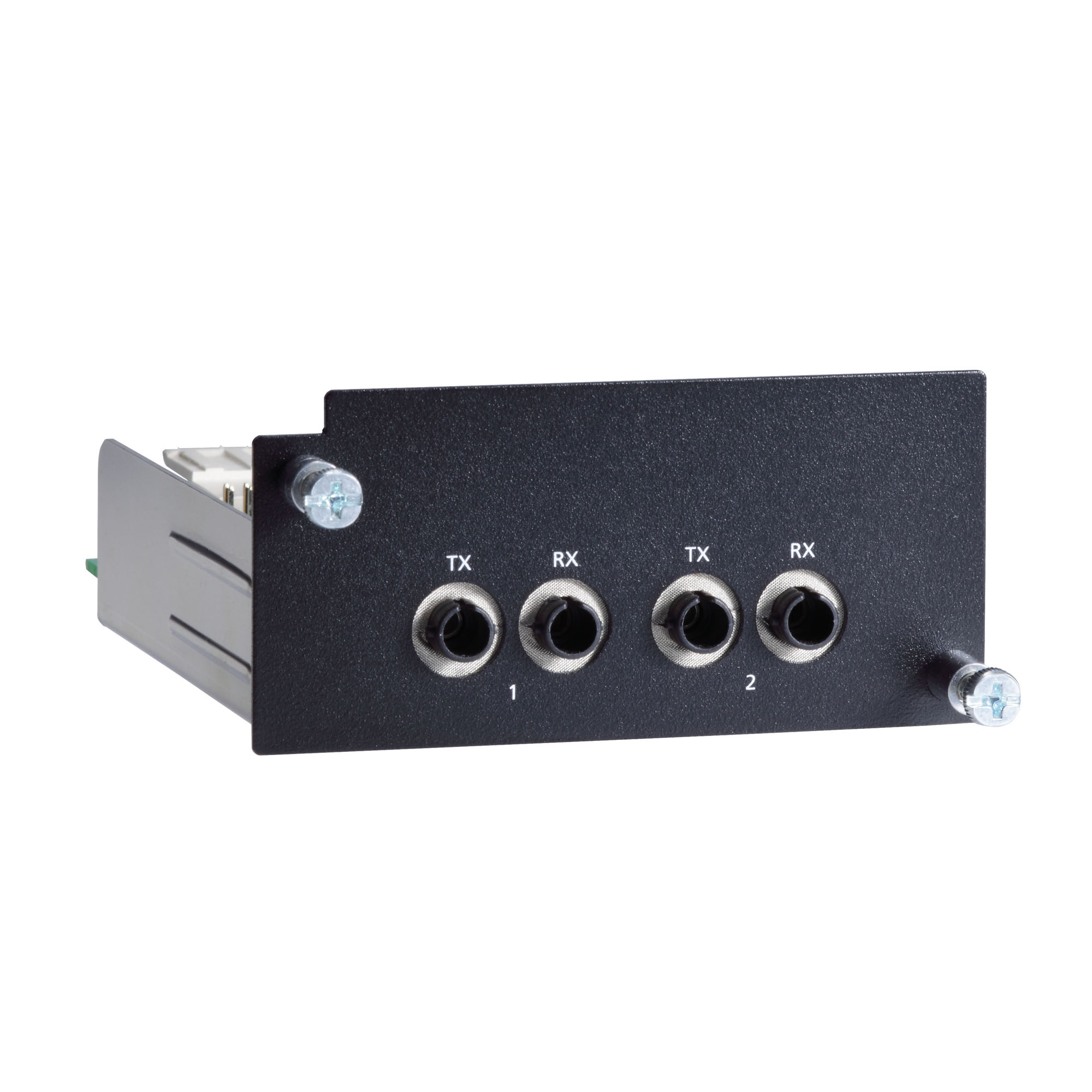

moxa-pm-7500-2mst-image.jpg | MoxaPM-7500-2MST
Compare

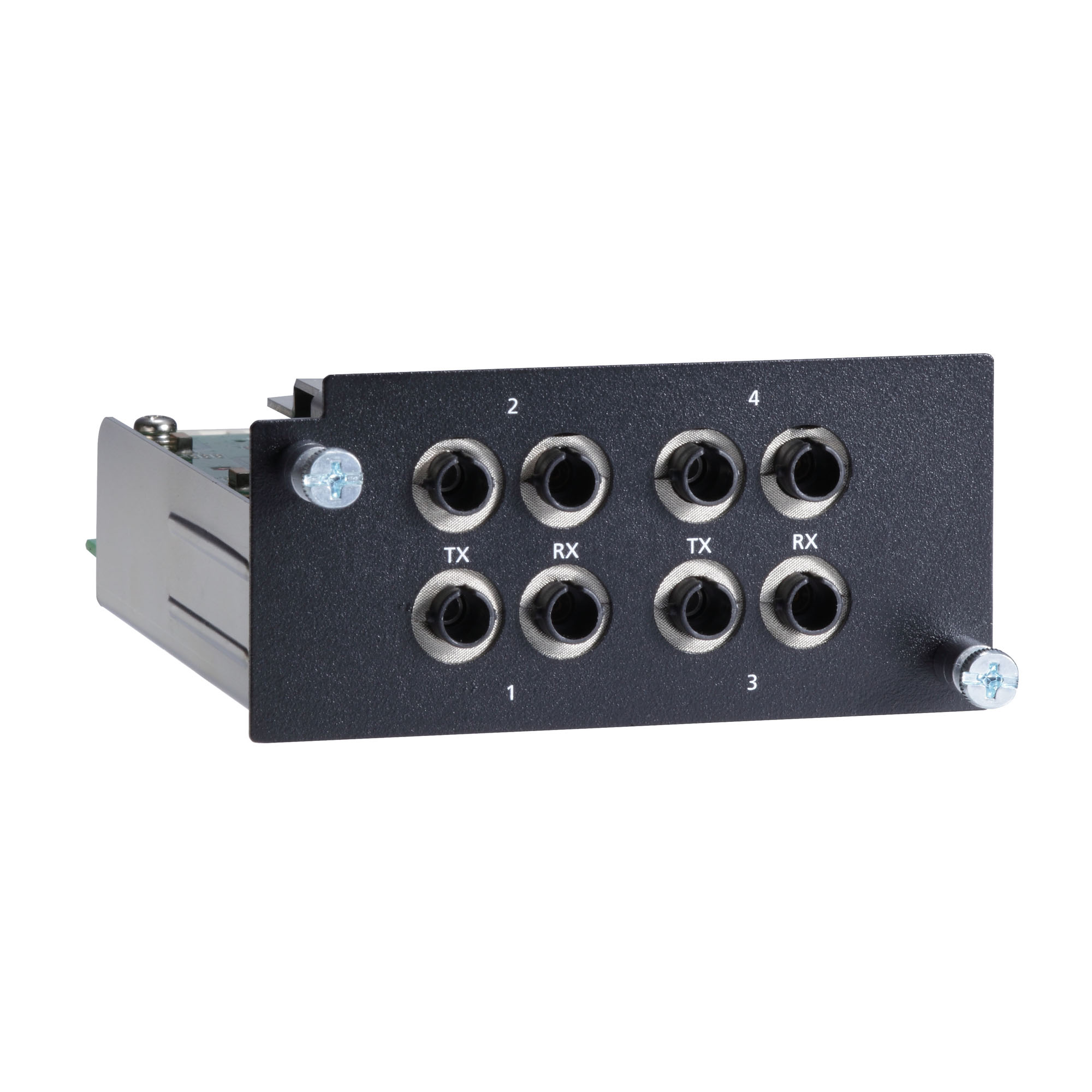

moxa-pm-7500-4mst-image.jpg | MoxaPM-7500-4MST
100BaseFX Multi-Mode Ports with SC Connectors24––
100BaseFX Multi-Mode Ports with ST Connectors––24
Single-Mode Ports with SC Connectors––––
Combo Ports, 10/100/1000BaseT(X) or 100/1000BaseSFP––––
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-pm-7500-2ssc-image.jpg | MoxaPM-7500-2SSC
Compare
moxa-pm-7500-4ssc-image.jpg | MoxaPM-7500-4SSC
Compare

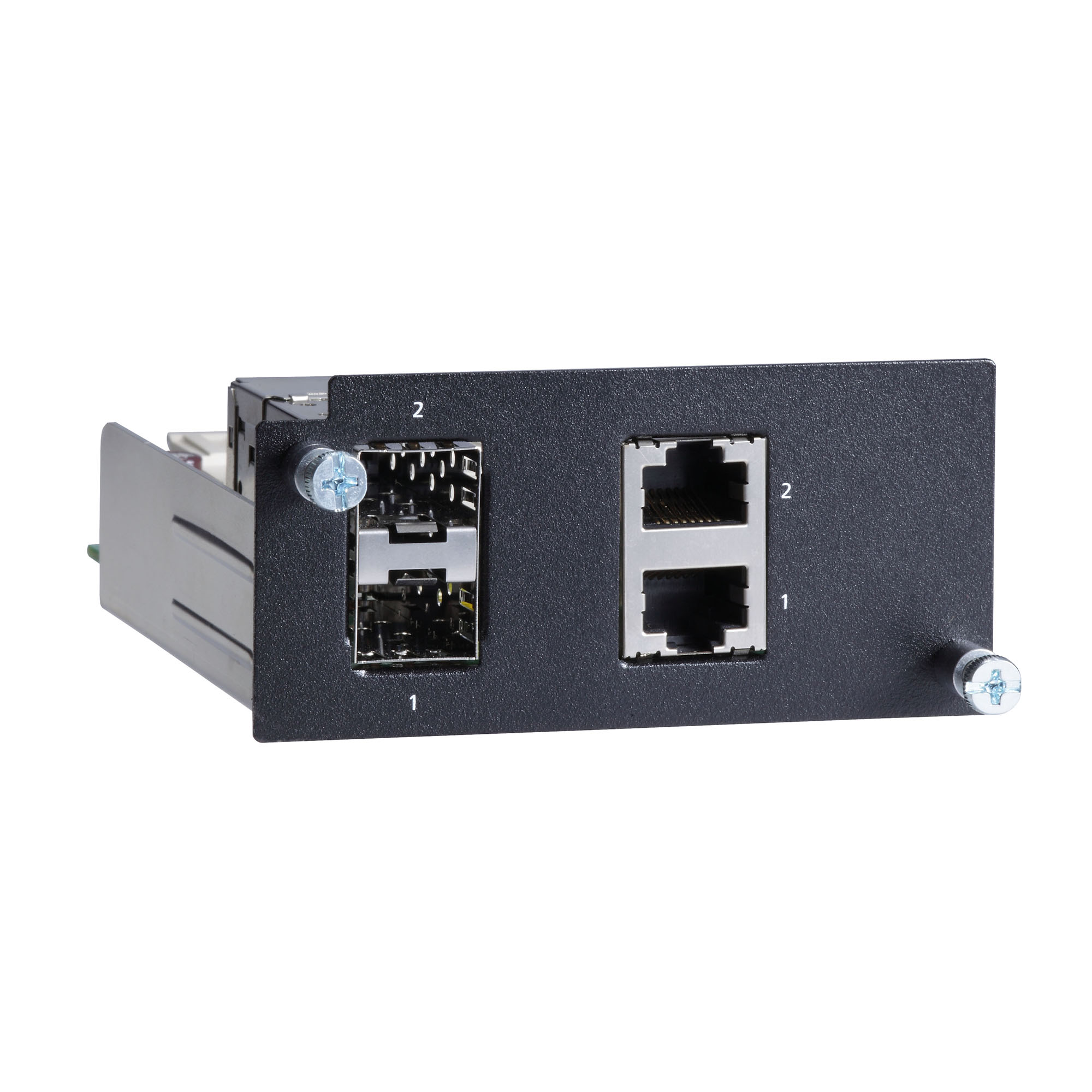

moxa-pm-7500-2gtxsfp-image.jpg | MoxaPM-7500-2GTXSFP
Compare

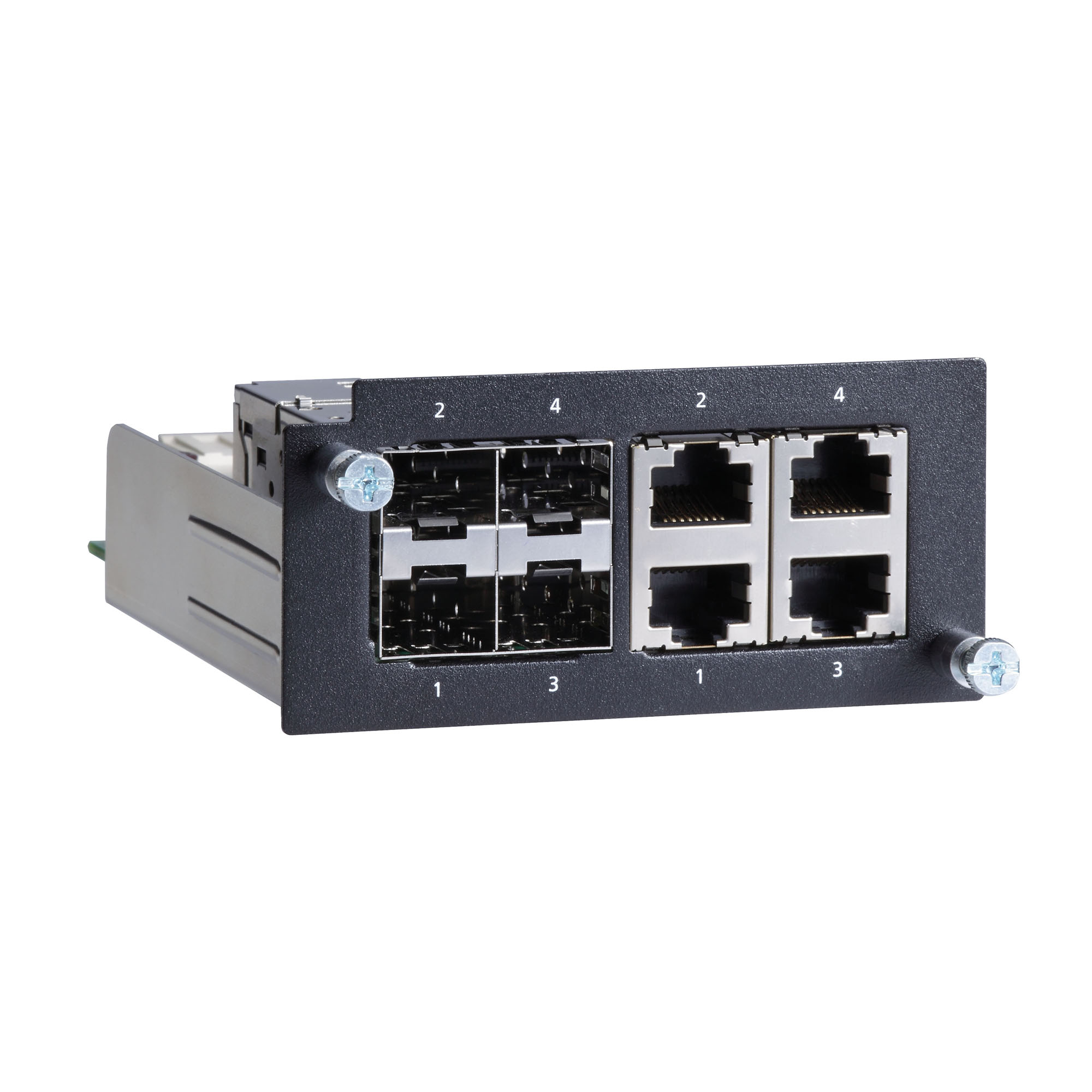

moxa-pm-7500-4gtxsfp-image.jpg | MoxaPM-7500-4GTXSFP
100BaseFX Multi-Mode Ports with SC Connectors––––
100BaseFX Multi-Mode Ports with ST Connectors––––
Single-Mode Ports with SC Connectors24––
Combo Ports, 10/100/1000BaseT(X) or 100/1000BaseSFP––24
Operating Temp.-45 to 85°C-45 to 85°C-45 to 85°C-45 to 85°C
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
