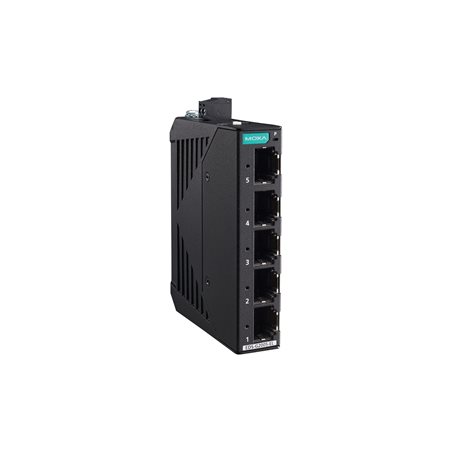

EDS-G2005-EL-T
EDS-G2005-EL Series

Unmanaged full Gigabit Ethernet switch with 5 10/100/1000 BaseT(X) ports, 12/24/48 power input, metal housing, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 5
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.1p for Class of Service
      IEEE 802.3x for flow control
Switch Properties
  • Processing Type

    • Store and Forward
  • MAC Table Size

    • 4 K
  • Packet Buffer Size

    • 1.5 Mbits
DIP Switch Configuration
  • Ethernet Interface

    • Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
  • Connection

    • 1 removable 2-contact terminal block(s)
  • Input Current

    • 0.21 A (max.)
  • Input Voltage

    • 12/24/48 VDC
  • Operating Voltage

    • 9.6 to 60 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Dimensions

    • 18 x 81 x 65 mm (0.71 x 3.19 x 2.56 in)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Weight

    • 120 g (0.26 lb)
  • Housing

    • Metal
Environmental Limits
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
Standards and Certifications
  • Safety

    • UL 61010-2-201
      EN 62368-1 (LVD)
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR, 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-32
MTBF
  • Time

    • 3,404,784 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
