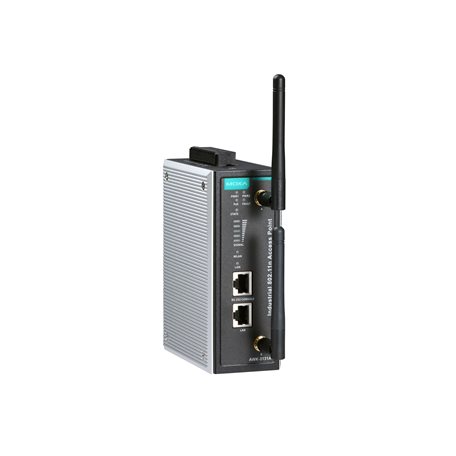

AWK-3131A-US-T
AWK-3131A Series

Industrial 802.11a/b/g/n access point, US band, -40 to 75°C operating temperature

WLAN Interface
  • WLAN Standards

    • 802.11a/b/g/n
      802.11i Wireless Security
  • Modulation Type

    • DSSS
      MIMO-OFDM
      OFDM
  • Frequency Band for US (20 MHz operating channels)

    • 2.412 to 2.462 GHz (11 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (8 channels) excluding 5.600 to 5.640 GHz DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.745 to 5.825 GHz (5 channels)
  • Wireless Security

    • WEP encryption (64-bit and 128-bit)
      WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2-Personal
  • Transmission Rate

    • 802.11b: 1 to 11 Mbps
      802.11a/g: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps
  • Transmitter Power for 802.11a

    • 23±1.5 dBm @ 6 to 24 Mbps
      21±1.5 dBm @ 36 Mbps
      20±1.5 dBm @ 48 Mbps
      18±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11b

    • 26±1.5 dBm @ 1 Mbps
      26±1.5 dBm @ 2 Mbps
      26±1.5 dBm @ 5.5 Mbps
      25±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g

    • 23±1.5 dBm @ 6 to 24 Mbps
      21±1.5 dBm @ 36 Mbps
      19±1.5 dBm @ 48 Mbps
      18±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz)

    • 23±1.5 dBm @ MCS0/8 20 MHz
      18±1.5 dBm @ MCS7/15 20 MHz
      23±1.5 dBm @ MCS0/8 40 MHz
      17±1.5 dBm @ MCS7/15 40 MHz
  • Transmitter Power for 802.11n (5 GHz)

    • 23±1.5 dBm @ MCS0/8 20 MHz
      18±1.5 dBm @ MCS7/15 20 MHz
      23±1.5 dBm @ MCS0/8 40 MHz
      17±1.5 dBm @ MCS7/15 40 MHz
  • Transmitter Power

  • Receiver Sensitivity for 802.11a

    • -90 dBm @ 6 Mbps
      -88 dBm @ 9 Mbps
      -88 dBm @ 12 Mbps
      -85 dBm @ 18 Mbps
      -81 dBm @ 24 Mbps
      -78 dBm @ 36 Mbps
      -74 dBm @ 48 Mbps
      -72 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11b

    • -93 dBm @ 1 Mbps
      -93 dBm @ 2 Mbps
      -93 dBm @ 5.5 Mbps
      -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g

    • -88 dBm @ 6 Mbps
      -86 dBm @ 9 Mbps
      -85 dBm @ 12 Mbps
      -85 dBm @ 18 Mbps
      -85 dBm @ 24 Mbps
      -82 dBm @ 36 Mbps
      -78 dBm @ 48 Mbps
      -74 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz)

    • -70 dBm @ MCS7 20 MHz
      -69 dBm @ MCS15 20 MHz
      -67 dBm @ MCS7 40 MHz
      -67 dBm @ MCS15 40 MHz
  • Receiver Sensitivity for 802.11n (5 GHz)

    • -69 dBm @ MCS7 20 MHz
      -71 dBm @ MCS15 20 MHz
      -63 dBm @ MCS7 40 MHz
      -68 dBm @ MCS15 40 MHz
  • WLAN Operation Mode

    • Access point, Client, Client-Router, Master, Slave, Sniffer
  • Antenna

    • External, 2/2 dBi, Omni-directional
  • Antenna Connectors

    • 2 RP-SMA female
Ethernet Interface
  • PoE Ports (10/100/1000BaseT(X), RJ45 connector)

    • 1
  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3af for PoE
      IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
  • Management

    • DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Wireless Search Utility, VLAN, MXview, MXconfig
  • Redundancy Protocols

    • RSTP, STP
  • Security

    • HTTPS/SSL, RADIUS, SSH
  • Time Management

    • SNTP Client
  • Unicast Routing

    • Static Route
Firewall
  • Filter

    • ICMP, MAC address, IP protocol, Port-based
Serial Interface
  • Console Port

    • RS-232, 8-pin RJ45
LED Interface
  • LED Indicators

    • PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, WLAN, LAN
Input/Output Interface
  • Digital Inputs

    • 2
      Max. input current: 8 mA
      +13 to +30 V for state 1
      +3 to -30 V for state 0
  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons

    • Reset button
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 52.7 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)
  • Weight

    • 860 g (1.9 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
  • Input Current

    • 0.6 A @ 12 VDC, 0.15 A @ 48 VDC
  • Input Voltage

    • 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
  • Power Connector

    • 1 removable 10-contact terminal block(s)
  • Power Consumption

    • 7.2 W (max.)
  • Reverse Polarity Protection

    • Supported
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx
  • Radio

    • ANATEL, EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, MIC, NCC, RCM, SRRC, WPC, KC
  • Safety

    • EN 60950-1, UL 60950-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 570,854 hrs
  • Standards

    • Telcordia SR332
