AWK-3252A Series

Industrial IEEE 802.11a/b/g/n/ac wireless AP/bridge/client

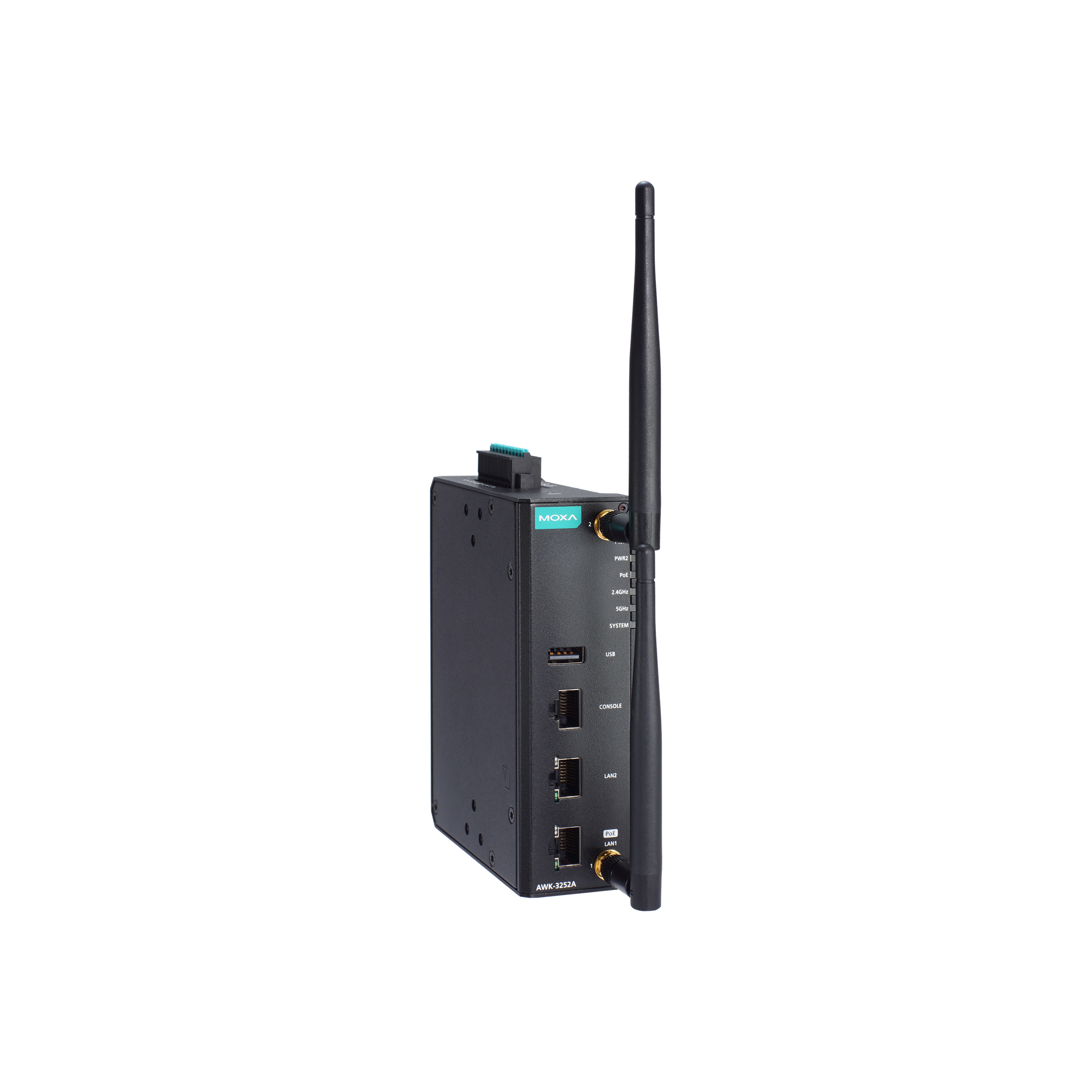

moxa-awk-3252a-series-image-(1).jpg | Moxa

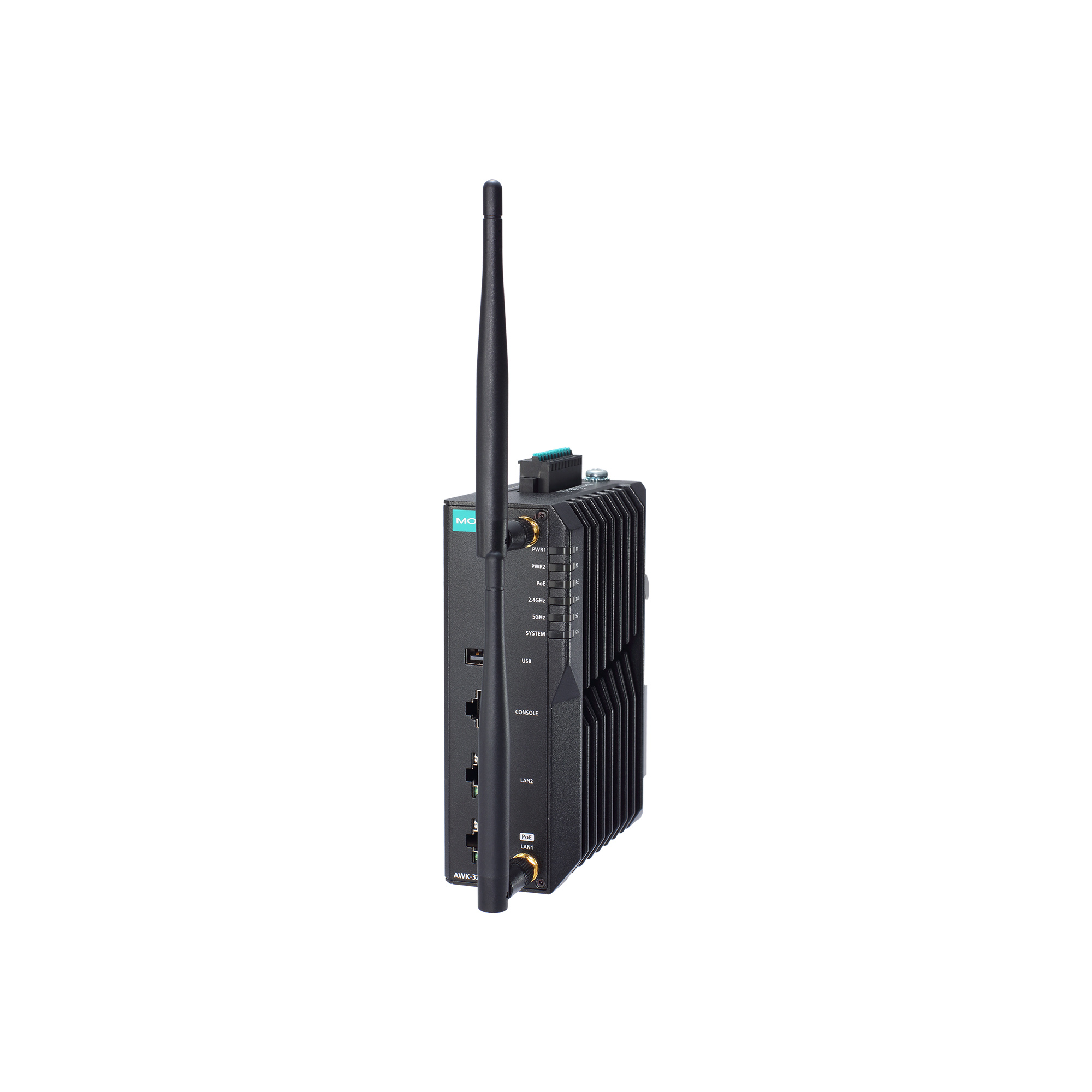

moxa-awk-3252a-series-image-1-(1).jpg | Moxa

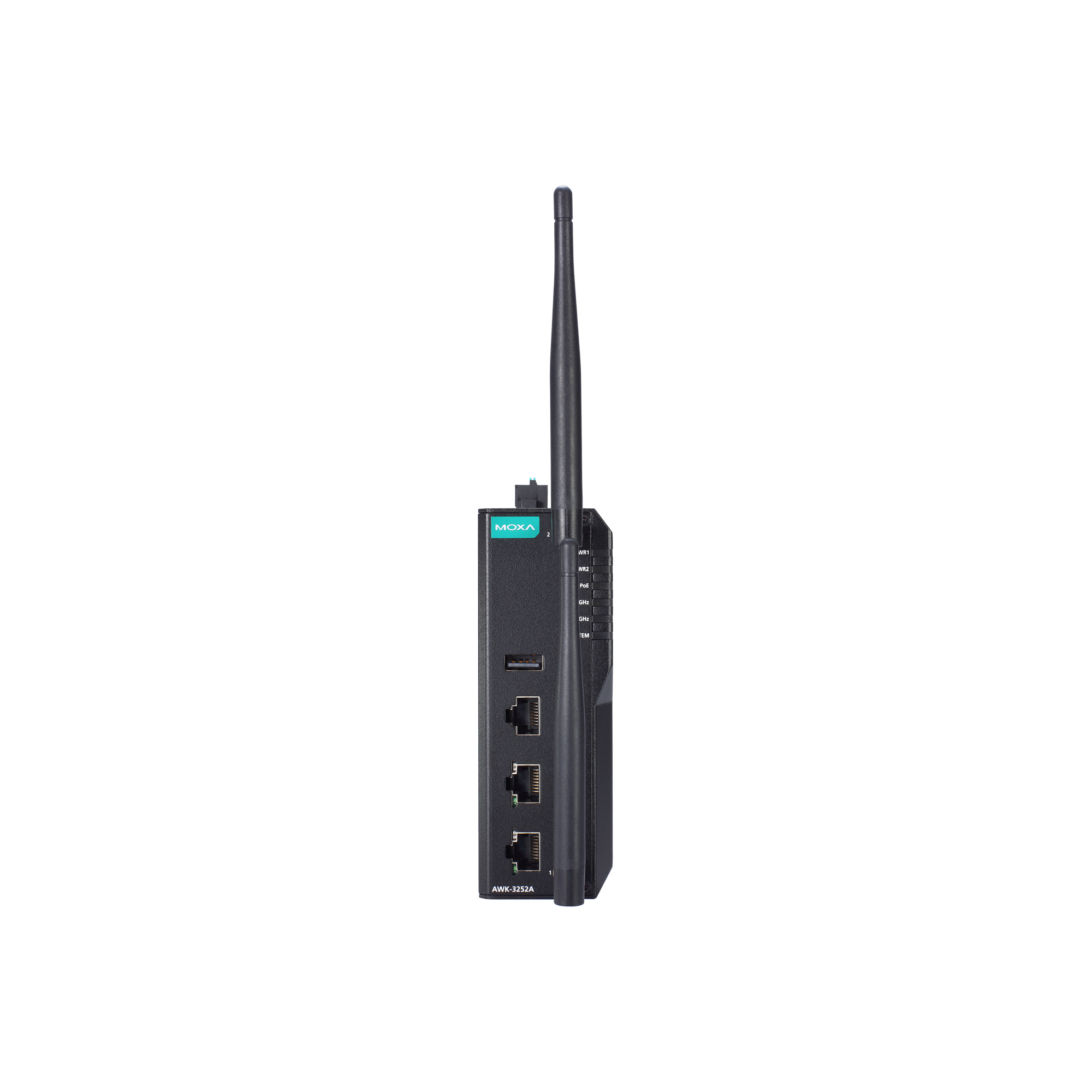

moxa-awk-3252a-series-image-2-(1).jpg | Moxa

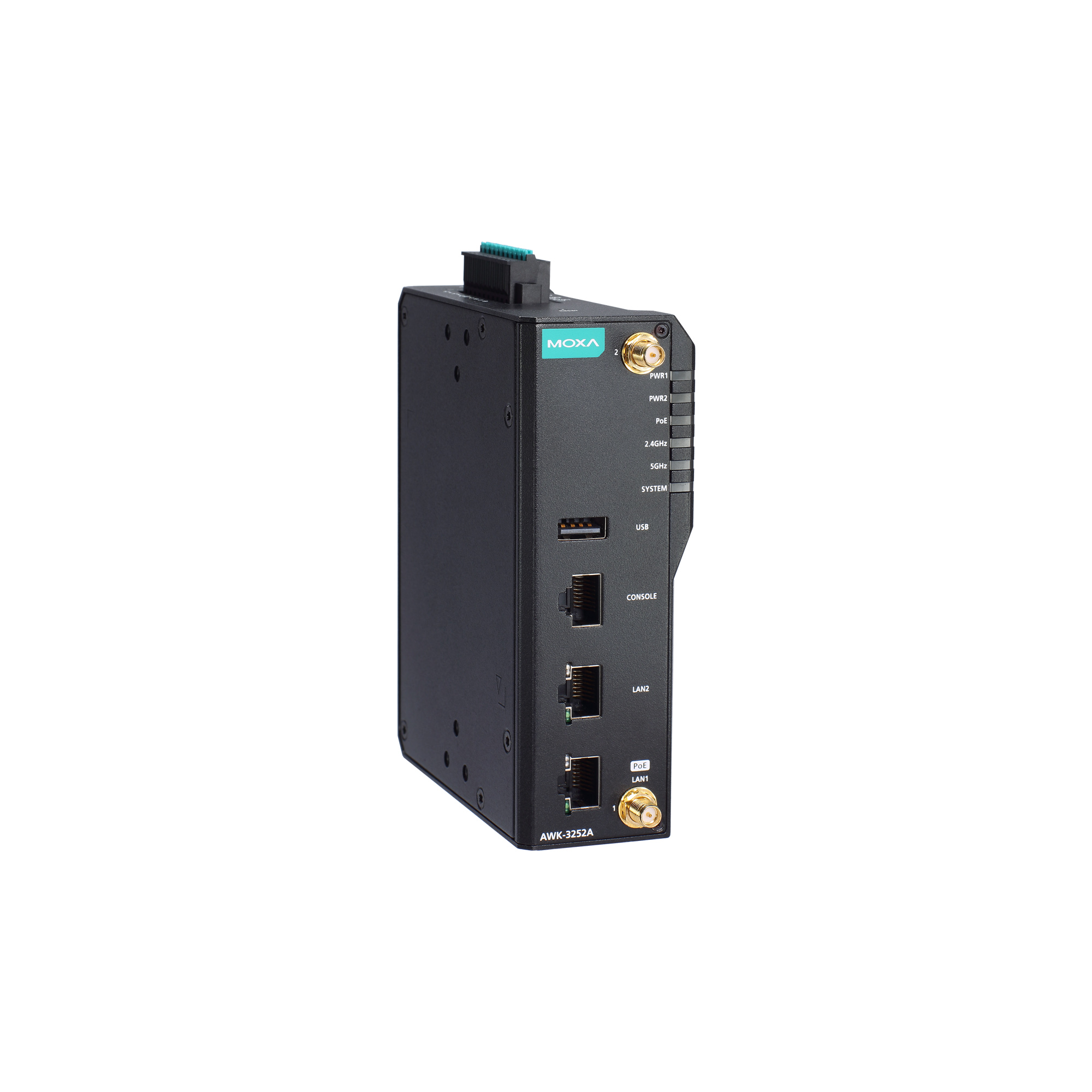

moxa-awk-3252a-series-image-3-(1).jpg | Moxa

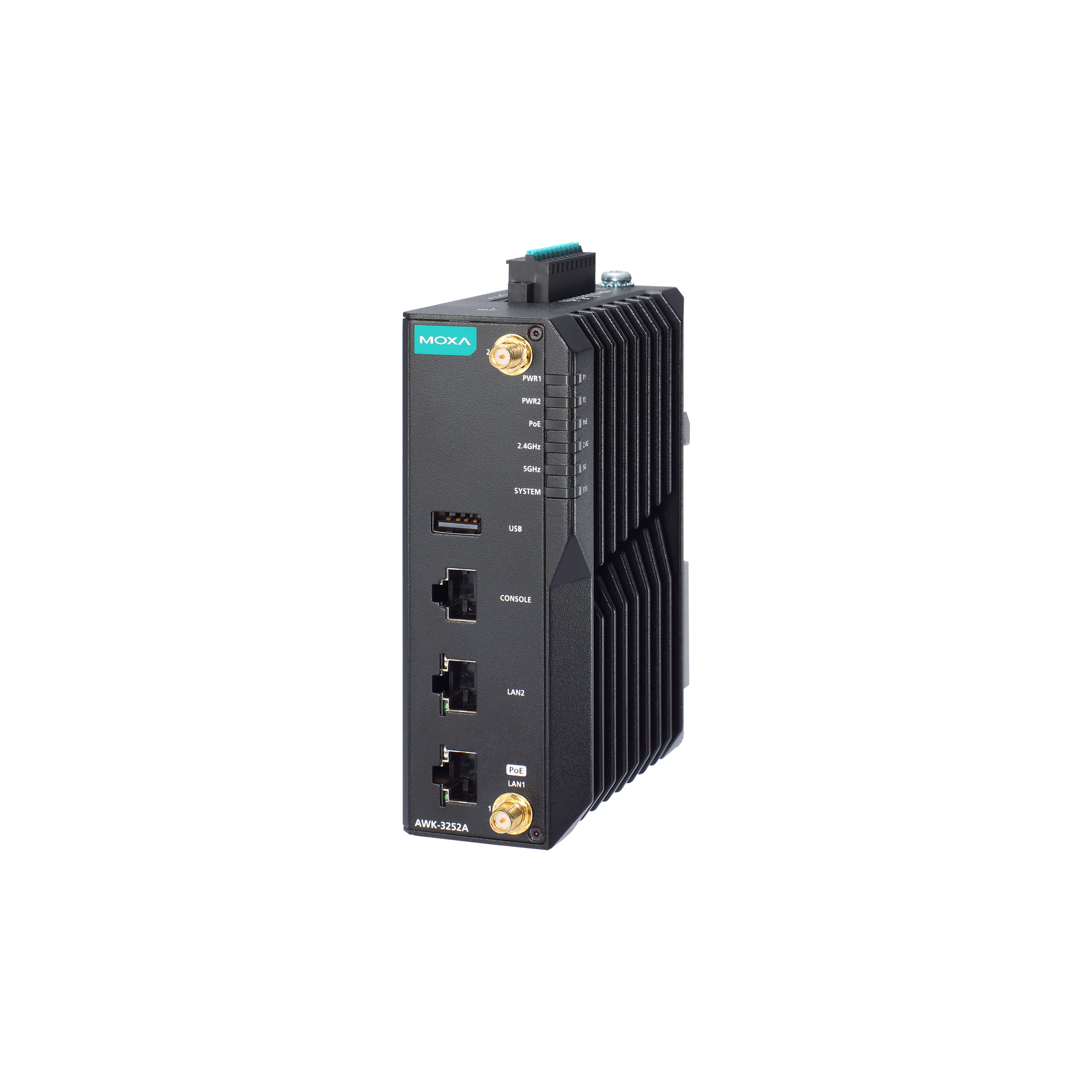

moxa-awk-3252a-series-image-4-(1).jpg | Moxa

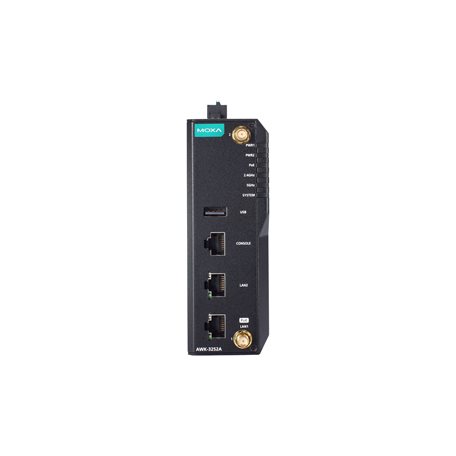

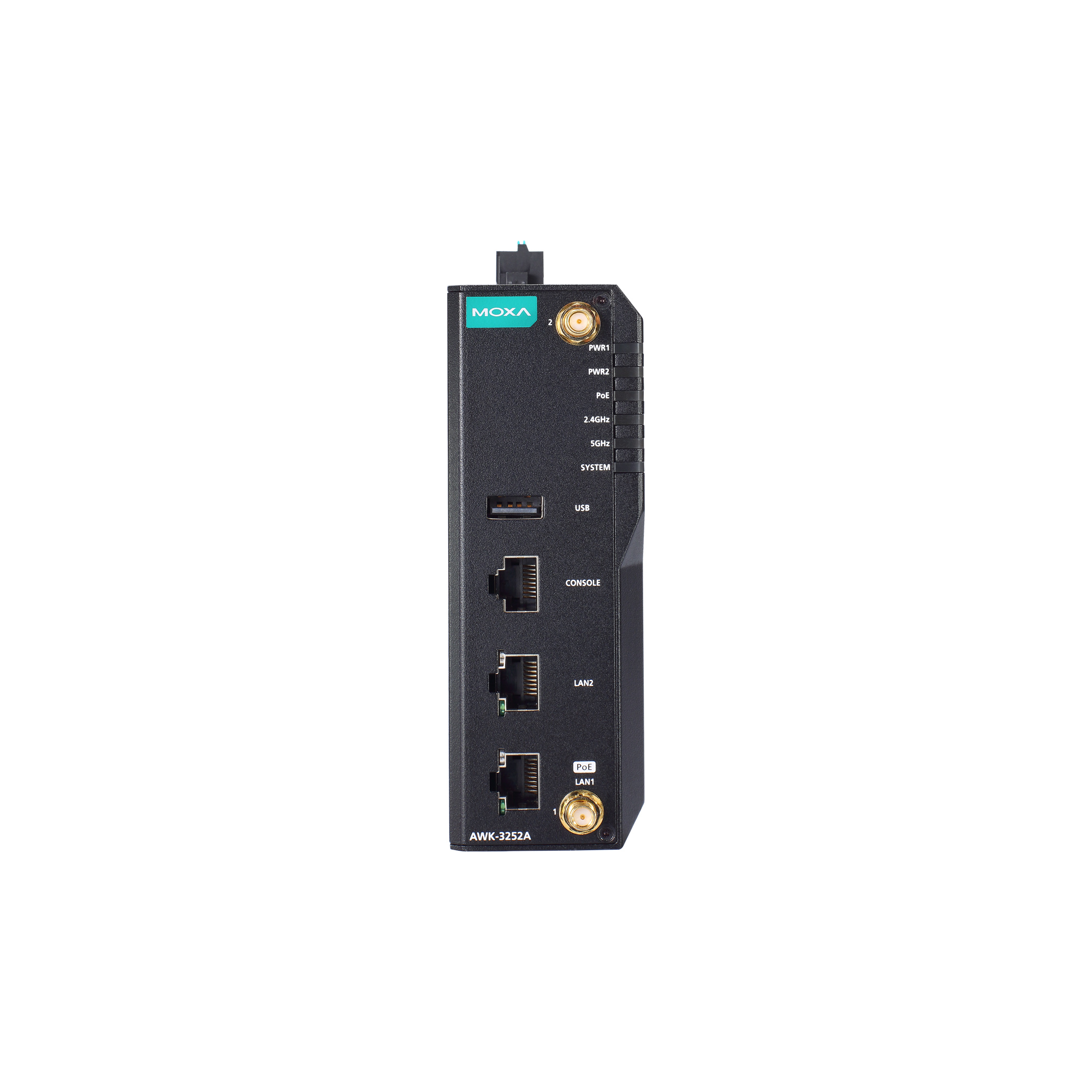

moxa-awk-3252a-series-image-5-(1).jpg | Moxa

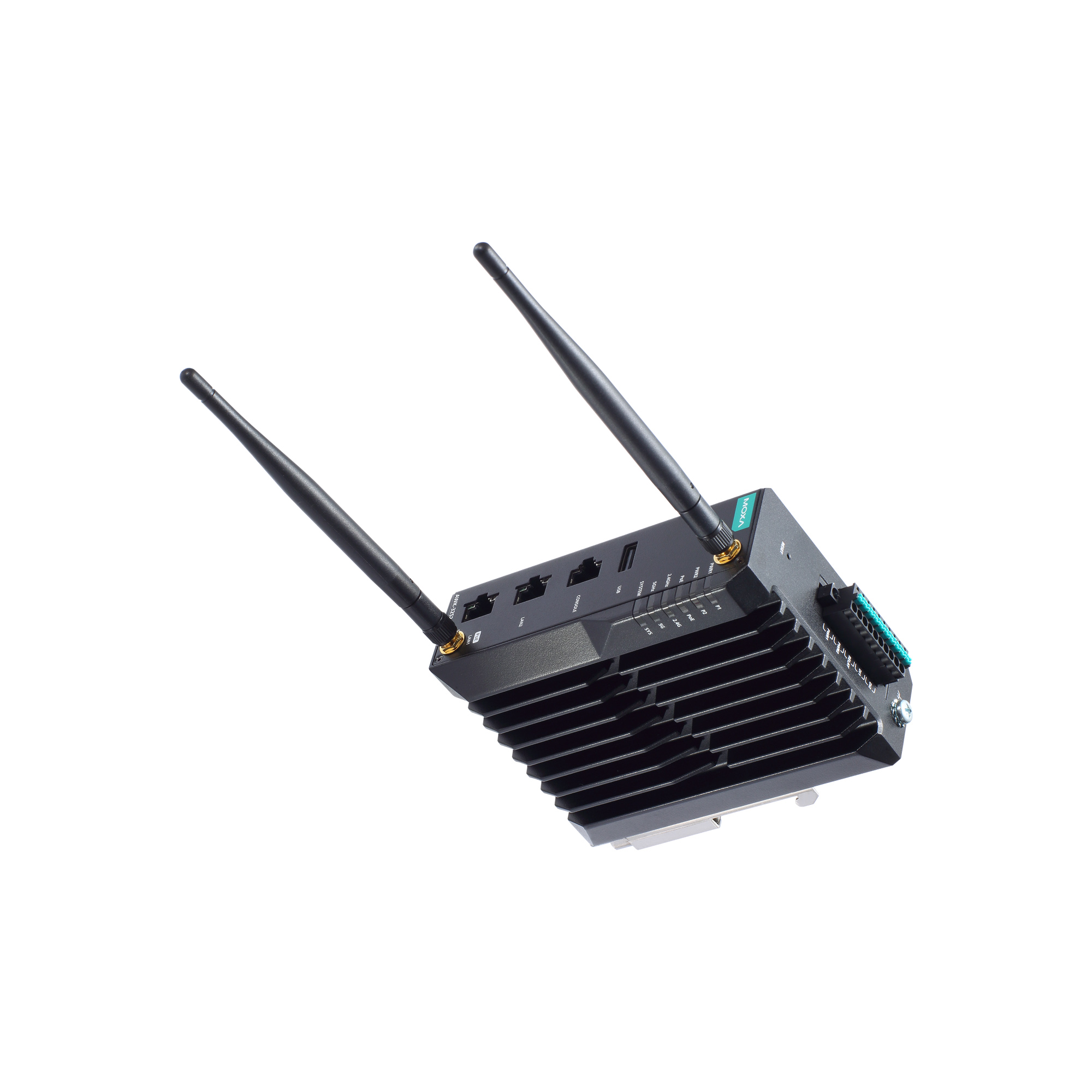

moxa-awk-3252a-series-image-6-(1).jpg | Moxa

Features and Benefits

  • IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
  • Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
  • Latest WPA3 encryption for enhanced wireless network security
  • Universal (UN) models with configurable country or region code for more flexible deployment
  • Easy network setup with Network Address Translation (NAT)
  • Millisecond-level Client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
  • Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
  • -40 to 75°C wide operating temperature range (-T models)
  • Integrated antenna isolation
  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards

Certifications

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The AWK-3252A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for aggregated data rates of up to 1.267 Gbps. The AWK-3252A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3252A can be powered via PoE to facilitate flexible deployment. The AWK-3252A can operate concurrently on both the 2.4 and 5 GHz bands and is backwards-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.

The AWK-3252A Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

Advanced 802.11ac Industrial Wireless Solution

  • 802.11a/b/g/n/ac compliant AP/bridge/client for flexible deployment

  • DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

  • Seamless roaming with client-based Turbo Roaming The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual. for < 150 ms roaming recovery time between APs (Client Mode)

Industrial Ruggedness

  • Integrated antenna isolation designed to provide protection against external electrical interference

  • -40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

  • WLAN Standards

    2.4 GHz: 802.11b/g/n with 256 QAM support
    5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support

  • Frequency Band for US (20 MHz operating channels)

    AWK-3252A US Models Only:
    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)

  • Frequency Band for UN (20 MHz operating channels)

    AWK-3252A UN Models Only:
    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.745 to 5.825 GHz (5 channels)
    Available channels change depending on the selected country or region code.

  • Wireless Security

    WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
    WPA/WPA2/WPA3-Personal

  • Transmission Rate

    2.4 GHz:
    802.11b: 1 to 11 Mbps
    802.11g: 6 to 54 Mbps
    802.11n: 6.5 to 400 Mbps

    5 GHz:
    802.11a: 6 to 54 Mbps
    802.11n: 6.5 to 300 Mbps
    802.11ac: 6.5 to 867 Mbps

  • Transmitter Power for 802.11a (Dual Chain)

    25±1.5 dBm @ 6 Mbps
    23±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz, Dual Chain)

    25±1.5 dBm @ MCS0 20 MHz
    22±1.5 dBm @ MCS7 20 MHz
    24±1.5 dBm @ MCS0 40 MHz
    22±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ac (Dual Chain)

    25±1.5 dBm @ MCS0 20 MHz
    22±1.5 dBm @ MCS8 20 MHz
    24±1.5 dBm @ MCS0 40 MHz
    21±1.5 dBm @ MCS9 40 MHz
    23±1.5 dBm @ MCS0 80 MHz
    20±1.5 dBm @ MCS9 80 MHz

  • Transmitter Power for 802.11b (Dual Chain)

    29±1.5 dBm @ 1 Mbps
    29±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g (Dual Chain)

    29±1.5 dBm @ 6 Mbps
    26±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

    28±1.5 dBm @ MCS0 20 MHz
    25±1.5 dBm @ MCS7 20 MHz
    28±1.5 dBm @ MCS0 40 MHz
    25±1.5 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    Typ. -88 @ 6 Mbps
    Typ. -72 @ 54 Mbps

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    Typ. -88 dBm @ MCS0 20 MHz
    Typ. -68 dBm @ MCS7 20 MHz
    Typ. -84 dBm @ MCS0 40 MHz
    Typ. -66 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11ac

    Typ. -88 dBm @ MCS0 20 MHz
    Typ. -65 dBm @ MCS8 20 MHz
    Typ. -85 dBm @ MCS0 40 MHz
    Typ. -60 dBm @ MCS9 40 MHz
    Typ. -81 dBm @ MCS0 80 MHz
    Typ. -55 dBm @ MCS9 80 MHz

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    Typ. -96 dBm @ 1 Mbps
    Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    Typ. -90 dBm @ 6 Mbps
    Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    Typ. -90 dBm @ MCS0 20 MHz
    Typ. -70 dBm @ MCS7 20 MHz
    Typ. -87 dBm @ MCS0 40 MHz
    Typ. -69 dBm @ MCS7 40 MHz

  • WLAN Operation Mode

    Access point
    Client
    Client-Router
    Master
    Slave
    Sniffer
    Mesh

  • Antenna

    External, 2/2 dBi
    Omni-directional

  • Antenna Connectors

    2 RP-SMA female

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3af for PoE
    IEEE 802.3at for PoE
    IEEE 802.3az for Energy-Efficient Ethernet
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1X for authentication

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    1

  • PoE Ports (10/100/1000BaseT(X), RJ45 connector)

    1

  • Management

    DHCP Server
    DHCP Client
    DNS
    HTTP
    IPv4/IPv6
    LLDP
    SMTP
    SNMPv1/v2c/v3
    Syslog
    TCP/IP
    Telnet
    UDP
    VLAN
    MXconfig

  • Routing

    Port forwarding
    Static Route
    NAT

  • Security

    HTTPS/SSL
    RADIUS
    SSH
    Certificate Management

  • Time Management

    SNTP Client

  • Filter

    ICMP
    MAC address
    IP protocol
    Port-based
    Wi-Fi ACL
    Client Isolation

  • Console Port

    RS-232
    8-pin RJ45

  • Storage Port

    USB Type A

  • LED Indicators

    PWR1, PWR2, PoE, SYS, 2.4G, 5G, LAN1, LAN2

  • Digital Inputs

    2
    Max. input current: 8 mA
    +13 to +30 V for state 1
    +3 to -30 V for state 0

  • Alarm Contact Channels

    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    Reset button

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)

  • Weight

    700 g (1.5 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Input Current

    12-48 VDC, 2.2-0.5 A

  • Input Voltage

    12 to 48 VDC
    Redundant dual inputs
    48 VDC Power-over-Ethernet

  • Power Connector

    1 removable 10-contact terminal block(s)

  • Power Consumption

    28.4 W (max.)

  • Operating Temperature

    Standard Models: -25 to 60°C (-13 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4
    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V/m
    IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    IEC 60950-1
    IEC 62368-1
    UL 62368-1

  • Hazardous Locations

    ATEX
    Class I Division 2
    IECEx

  • Road Vehicles

    E mark E1

  • Vibration

    IEC 60068-2-6

  • Radio

    EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC

  • Industrial Cybersecurity

    IEC 62443-4-1
    IEC 62443-4-2

  • Time

    653,801 hrs

  • Standards

    Telcordia Standard SR-332
