UPort 1600-8-G2 系列

8 埠 RS-232/422/485 USB 轉串列轉換器

moxa-uport-1600-8-g2-series-image-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-1-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-2-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-3-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-4-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-5-(1).jpg | Moxa
moxa-uport-1600-8-g2-series-image-6-(1).jpg | Moxa

特色與優點

  • USB 3.2 超高速功能
  • 512 位元芯片上 FIFO 快取和流量控制可增強效能
  • 支援多種作業系統的驅動程式,包括 Windows 和 Linux
  • 50 bps 至 921.6 kbps 鮑率(支援非標準鮑率)
  • 角落的雙面 LED 可全方位顯示電源、TX 和 RX 狀態
  • 可串聯使用多達 32 個端口而無須額外電源
  • 更牢固的閉鎖式 USB 銅纜連接設計
  • 適合 -40 至 75°C(-40 至 167°F)作業環境的寬溫度型號
  • 內建 2 kV 光電隔離保護的串列埠(適用於「-I」型號)

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-kc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

UPort® 1600-8-G2 系列 USB 轉串列轉換器非常適合需要串列埠擴充的筆電或工作站電腦。對於需要在現場連接不同串列設備或是沒有標準 COM 埠或 DB9 接頭獨立介面轉換器的電腦來說,必不可少。電腦還配備了 USB 銅纜,其具有閉鎖和螺絲鎖以確保 UPort 和電腦之間更加安全的連接。透過 UPort® 1650-8-G2-Hub 的級聯功能,無需電源適配器即可將多達 32 個串列埠連結到 UPort。UPort® 1600-8-G2 系列可將 USB 轉換成 RS-232/422/485。所有產品皆與傳統串列設備相容,適用於儀器控制與銷售點應用。

  • USB Standards

    USB 1.1/2.0 compliant
    USB 3.2 Gen 2

  • Speed

    5 Gbps, 480 Mbps, 12 Mbps

  • No. of USB Ports

    1 x UFP for all models, and 3 additional DFP for UPort 1650-8-G2-Hub

  • USB Connector

    USB type B (UFP) for all models, and type A (DFP) for UPort 1650-8-G2-Hub

  • Connector

    DB9 male

  • No. of Ports

    8

  • Serial Standards

    RS-232: UPort 1610-8-G2
    RS-232/422/485: All other models

  • FIFO

    512 bytes

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Parity

    None, Even, Odd, Space, Mark

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Flow Control

    RTS/CTS, XON/XOFF

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Surge

    0.5 kV

  • Isolation

    2 kV (I models)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    Windows 11, 10, 8.1, 8, and 7
    Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2

  • Linux Drivers

    Kernel 6.x, 5.x and 4.x

  • Mac Drivers

    macOS version (Intel 64): 13, 12, 11 and 10.1x

  • Virtual Machine

    VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4)
    Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)

  • Arm®-based Platform Support

    Linux kernel 6.x, 5.x and 4.x

  • Android API

    Android 3.1.x and later

  • Input Voltage

    UPort 1610-8-G2/1650-8-G2 models:
    5 VDC by USB bus power or 12 to 48 VDC by external power adaptor

    UPort 1650I-8-G2 models/1650-8-G2-Hub:
    12 to 48 VDC by external power adaptor

  • Input Current

    UPort 1610-8-G2: 308 mA @ USB 2.0, 495 mA @ USB 3.2, 260 mA @ 12 VDC
    UPort 1650-8-G2 models: 466 ma @ USB 2.0, 652 mA & USB 3.2, 350 mA @ 12 VDC
    UPort 1650I-8-G2 models: 530 mA @ 12 VDC
    UPort 1650-8-G2-Hub: 2,250 mA @ 12 VDC

  • Output Power Rating

    UPort 1650-8-G2-Hub: 900 mA @ 5 VDC (USB 3.2)
    500 mA @ 5 VDC (USB 2.0)

  • Housing

    Metal

  • Dimensions

    216 x 41.5 x 121.6 mm (8.50 x 1.63 x 4.79 in)

  • Weight

    UPort 1610-8-G2: 650 g (1.43 lb)
    UPort 1650-8-G2 models: 670 g (1.48 lb)
    UPort 1650I-8-G2 models: 678 g (1.49 lb)
    UPort 1650-8-G2-Hub: 689 g (1.52 lb)

  • IP Rating

    IP20

  • Operating Temperature

    Standard models: 0 to 60°C (32 to 140°F)
    -T models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV
    IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz
    IEC 61000-4-8 PFMF

  • Safety

    IEC 62368-1
    EN 62368-1
    UL 62368-1 (CB)
    KC

  • Green Product

    RoHS, CRoHS, WEEE

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Standards

    Telcordia Standard SR332, Telcordia Issue 2

  • Time

    UPort 1610-8-G2: 1,431,860 hrs
    UPort 1650-8-G2 models: 951,145 hrs
    UPort 1650I-8-G2 models: 782,795 hrs
    UPort 1650-8-G2-Hub: 823,983 hrs

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Driver for UPort 1200/1400/1600/G2 Series (Windows XP or Windows Server 2008 and prior, WHQL certified)
1.4 MB
驅動程式
SHA-512
v2.1
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2024年3月7日 2024年3月7日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Windows 11 and Windows Server 2022 and later, WHQL certified)
8.6 MB
驅動程式
SHA-512
v4.1
  • Windows
  • Windows 11
  • Windows Server 2022
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
11.4 MB
驅動程式
SHA-512
v3.3
  • Windows
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 5.x)
646.4 KB
驅動程式
SHA-512
v5.2
  • Linux Kernel 5.x
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (macOS 10.12 to 13)
413.6 KB
驅動程式
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 6.x)
644.1 KB
驅動程式
SHA-512
v6.1
  • Linux Kernel 6.x
2023年10月13日 2023年10月13日 版本說明
Driver for UPort 1200/1400/1600/1200-G2/1400-G2/1600-8-G2 Series (Linux kernel 4.x)
722.5 KB
驅動程式
SHA-512
v4.2
  • Linux Kernel 4.x
2023年10月13日 2023年10月13日 版本說明
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
工具程式
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月19日 2023年6月19日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
FOSS Statement for Moxa PComm Lite Suite for Windows
108.5 KB
聲明書 英文 v1.0 2025年2月7日 2025年2月7日
FOSS Statement for Moxa ViewCOM for Windows
139.9 KB
聲明書 英文 v1.0 2025年2月7日 2025年2月7日
FOSS Statement for UPort 1200, 1400, 1600, 1200-G2, 1400-G2 and 1600-8-G2 Series macOS Driver
115.8 KB
聲明書 英文 v1.0 2024年10月29日 2024年10月29日
FOSS Statement for UPort 1200, 1400, 1600, 1200-G2, 1400-G2 and 1600-8-G2 Series Windows Driver
187.6 KB
聲明書 英文 v1.0 2024年10月29日 2024年10月29日
QIG for UPort 1600-8-G2 Series
3.5 MB
QIG 英文 v1.1 2024年3月5日 2024年3月5日
Manual for UPort 1200-G2/1400-G2/1600-8-G2 Series
10.3 MB
使用者手冊 英文 v2.0 2024年1月31日 2024年1月31日
Declaration of Conformity for UPort 1600-8-G2 Series
314.3 KB
聲明書 英文 v1.0 2023年12月19日 2023年12月19日
UPort 1600-8-G2 系列產品資料表
2.8 MB
產品資料表 中文 v1.1 2023年10月16日 2023年10月16日
QIG for UPort 1400-G2 and UPort 1600-8-G2 Series
4.4 MB
QIG 英文 v1.0 2023年10月13日 2023年10月13日
Tech Note: UPort Driver Arm-based Platform Porting Guide
423.1 KB
技術說明 英文 v1.2 2023年10月13日 2023年10月13日

可供選擇的機型 (6)

顯示圖片

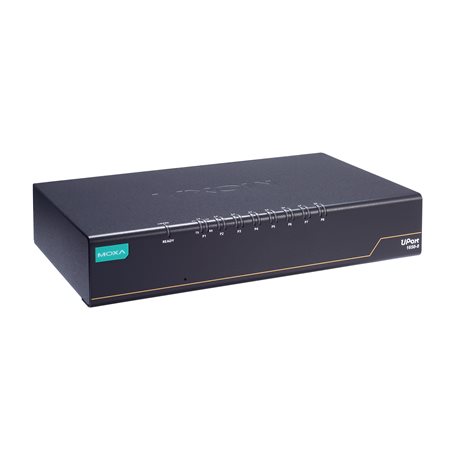

moxa-uport-1610-8-g2-image.jpg | MoxaUPort 1610-8-G2moxa-uport-1650-8-g2-image.jpg | MoxaUPort 1650-8-G2moxa-uport-1650-8-g2-t-image.jpg | MoxaUPort 1650-8-G2-Tmoxa-uport-1650-8-g2-hub-image.jpg | MoxaUPort 1650-8-G2-Hub
Serial StandardsRS-232RS-232/422/485RS-232/422/485RS-232/422/485
No. of Serial Ports8888
Isolation----
Power InputUSB bus power/
Power adapter
USB bus power/
Power adapter
USB bus power/
Power adapter
Power adapter
Operating Temp.0 to 60°C0 to 60°C-40 to 75°C0 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細

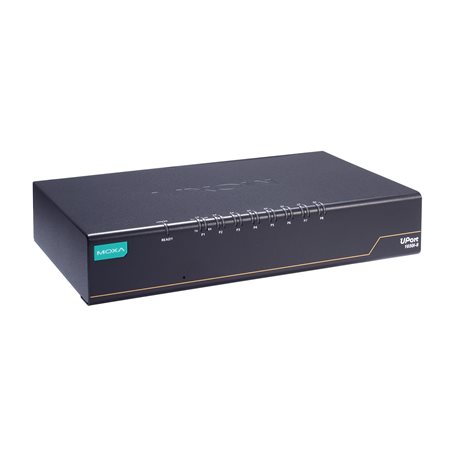

moxa-uport-1650i-8-g2-image.jpg | MoxaUPort 1650I-8-G2moxa-uport-1650i-8-g2-t-image.jpg | MoxaUPort 1650I-8-G2-T
Serial StandardsRS-232/422/485RS-232/422/485
No. of Serial Ports88
Isolation2 kV2 kV
Power InputPower adapterPower adapter
Operating Temp.0 to 60°C-40 to 75°C
