LNA-1000 Series

Industrial Cellular Low-noise Amplifiers

moxa-lna-1000-series-image-(1).jpg | Moxa

Features and Benefits

  • Industrial-grade signal amplifier for 5G networks
  • Compact size for easy installation
  • Easy integration with Moxa 5G user equipment
  • Stabilizes and improves low-power 5G signal performance
  • -40 to 70°C wide-temperature design

Contact Sales

Introduction

The LNA-1000 Series low-noise amplifier modules are designed to amplify the performance and sensitivity of weak signals while minimizing the introduction of additional noise. The LNA-1000 Series modules are suitable for a wide variety of communications and signal processing applications.

  • Cellular Antenna Connectors

    2 x SMA(J) signal input (including one power input)
    2 x SMA(J) signal output

  • Frequency Bands Supported

    Cellular broadband LTE and NR frequencies

  • System

    Power

  • Source of Input Power

    Powered by 5G user equipment (UE) via RF cable

  • Dimensions

    75.4 x 60.4 x 15.5 mm (2.97 x 2.38 x 0.61 in)

  • Housing

    Metal

  • IP Rating

    IP30

  • Weight

    73 g (0.16 lb)

  • Installation

    Wall mounting

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Time

    14,090,649 hrs

  • Standards

    Telcordia SR332

Support Documents

FILTER

All Datasheet QIG
Name Type Version Release Date
Datasheet for LNA-1000 Series
1.0 MB 		Datasheet v1.0 Dec 27, 2023 Dec 27, 2023
QIG for LNA-1120-T
1.0 MB 		QIG v1.0 Dec 20, 2023 Dec 20, 2023

Available Models (1)

Show Images
Compare

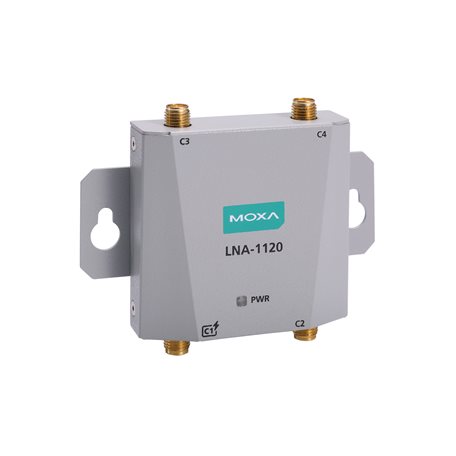

moxa-lna-1120-t-image.jpg | MoxaLNA-1120-T
Supported DevicesCCG-1500 Series
Cellular BandsCellular broadband LTE and NR frequencies
HousingIP30
Operating Temp.-40 to 70°C
