MAT-WDB-CA-RM-2-0205 Series

2 dBi at 2.4 GHz or 5 dBi at 5 GHz, RP-SMA-type(male), 2x2 MIMO, dual-band ceiling antennas

moxa-mat-wdb-ca-rm-2-0205-series-image-1-(1).jpg | Moxa

Features and Benefits

  • RP-SMA-type (male) connector
  • Lightweight
  • Easy to mount on the ceiling
  • -40 to 75°C operating temperature range

Contact Sales

Introduction

The MAT-WDB-CA-RM-2-0205 antenna is a lightweight MIMO 2x2 dual-band ceiling antenna with a RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and is designed to operate in temperatures from -40 to 75°C.

Field Patterns

Port 1 Frequency: 2.4 GHz

Port 2 Frequency: 2.4 GHz

Port 1 Frequency: 5 GHz

Port 2 Frequency: 5 GHz

  • Frequency

    2.4 to 2.5, 4.9 to 5.9 GHz

  • Antenna Type

    MIMO 2x2, Omni-directional

  • Typical Antenna Gain

    2/5 dBi

  • Connector

    RP-SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Linear

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    2:1 max.

  • Power Handling

    10 W (max.)

  • Weight

    115 g (0.25 lb)

  • Height

    37 mm (1.46 in)

  • Diameter

    210.9 mm (8.3 in)

  • Radome Color

    White

  • Radome Material

    ABS

  • Installation

    Ceiling mount

  • Cable

    RG-178

  • Cable Length

    250 mm (9.84 in)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

Name Type Version Release Date
Datasheet for MAT-WDB-CA-RM-2-0205 Series
1.9 MB
Datasheet v1.0 Nov 12, 2018 Nov 12, 2018

Available Models (1)

Show Images

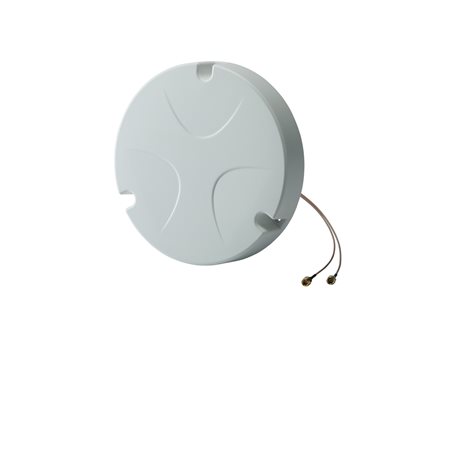

moxa-mat-wdb-ca-rm-2-0205-image.jpg | MoxaMAT-WDB-CA-RM-2-0205
Frequency2.4 to 2.5, 4.9 to 5.9 GHz
Antenna TypeMIMO 2x2, Omni-directional
Antenna Gain2/5 dBi
ConnectorRP-SMA (male)
