DA-720-Ethernet Series Expansion Modules

Expansion modules with PRP/HSR ports and Gigabit Ethernet

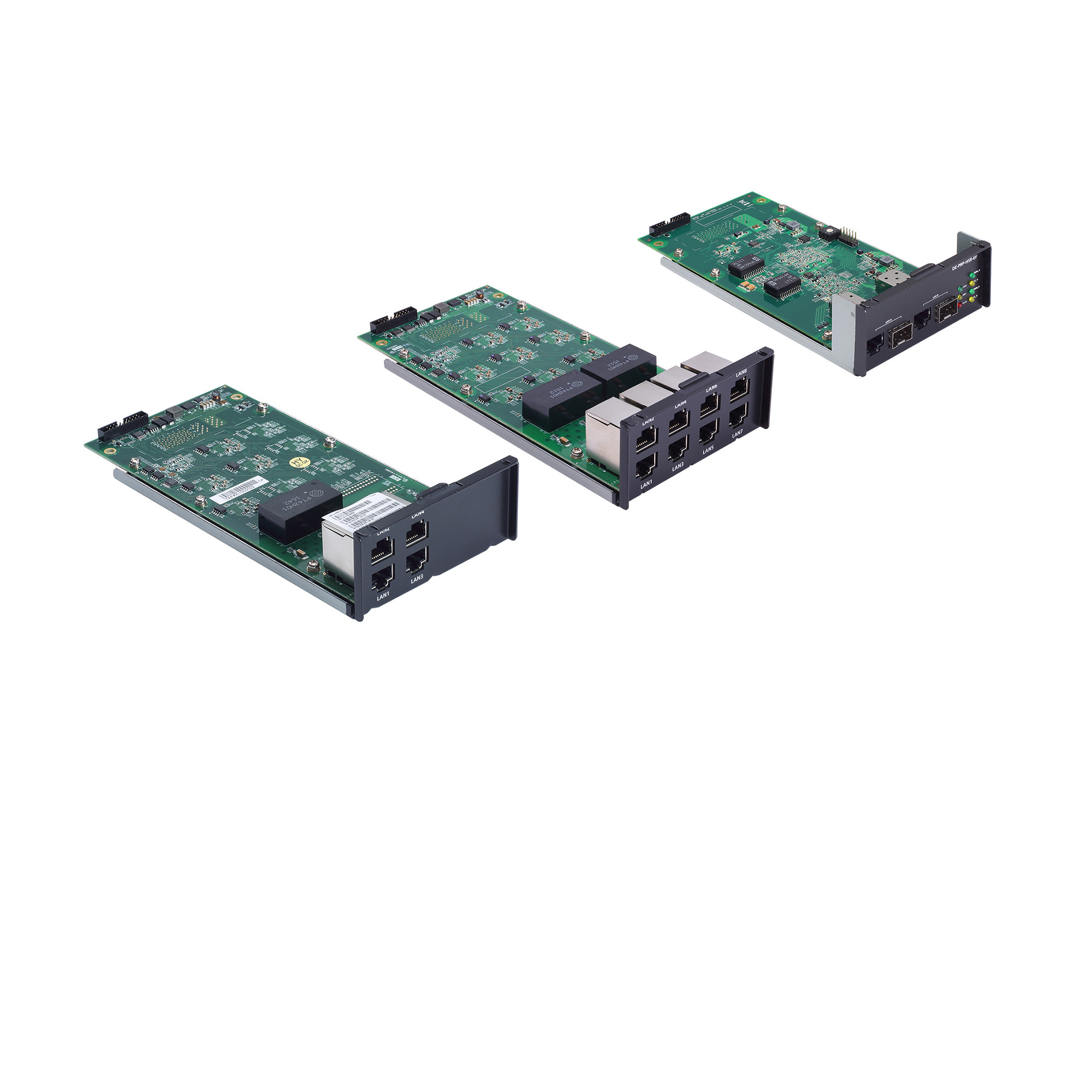

moxa-da-720-ethernet-series-expansion-modules-image-1-(1).jpg | Moxa

Features and Benefits

  • PRP/HSR module
  • 4-port Gigabit LAN module
  • 8-port Giga LAN module

Contact Sales

Introduction

DA-720-Ethernet peripheral expansion modules include a 4-port Giga LAN module, an 8-port Giga LAN module, and a PRP/HSR module for setting up industrial communication applications with Ethernet-based devices. All modules are designed to offer the greatest flexibility for setting up applications and performing industrial tasks.

The PRP-HSR expansion module is compliant with IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) to ensure the highest system availability and data integrity for mission-critical applications that require redundancy and zero-time recovery. With dual Gigabit Ethernet port design, the DA-PRP-HSR module provides high performance for redundant network systems. Moxa’s DA-720 Series industrial computer with the DA-PRP-HSR module installed is the ideal solution for power substation automation and process automation systems.

Appearance

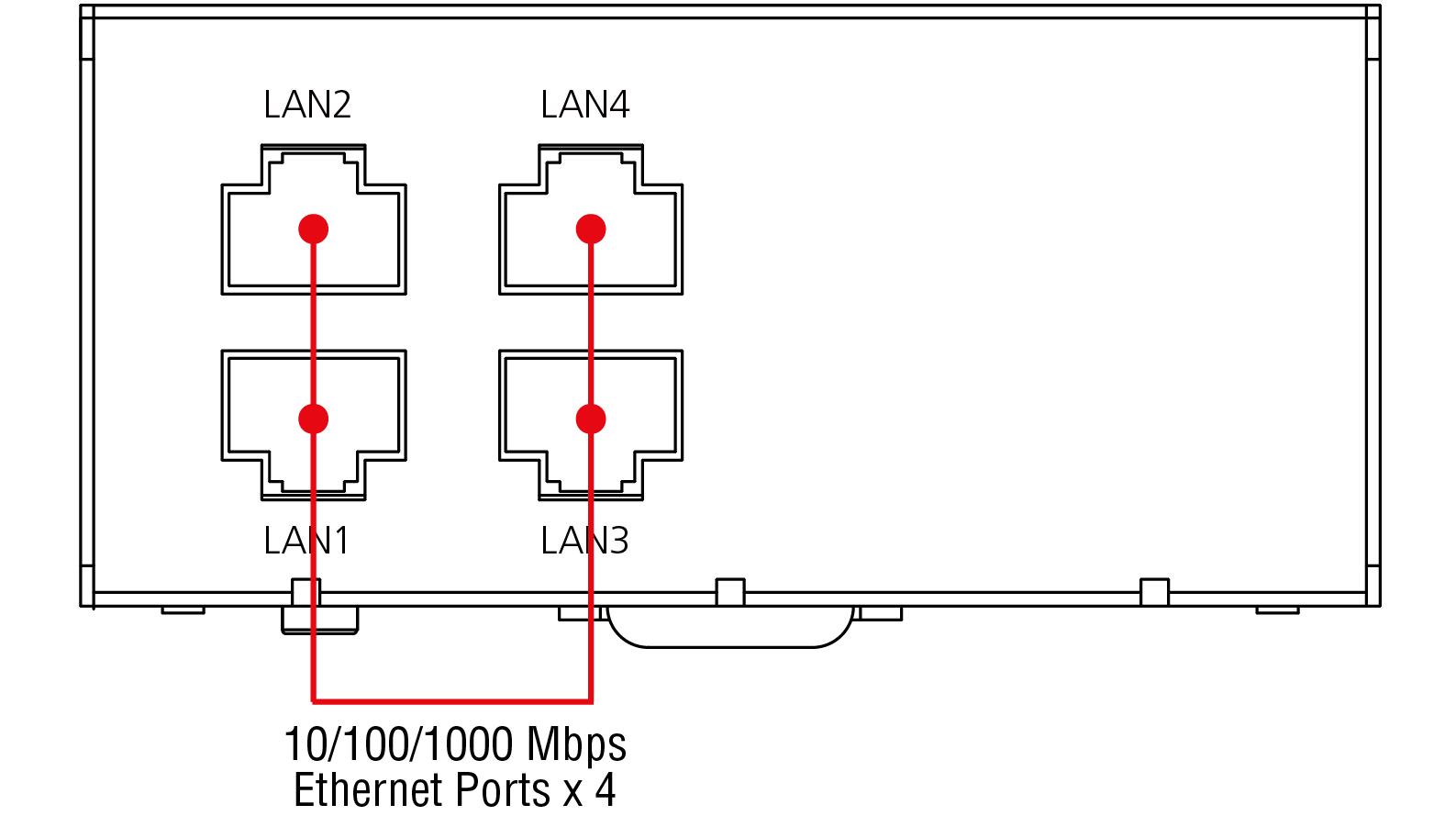

DE-LN04-RJ

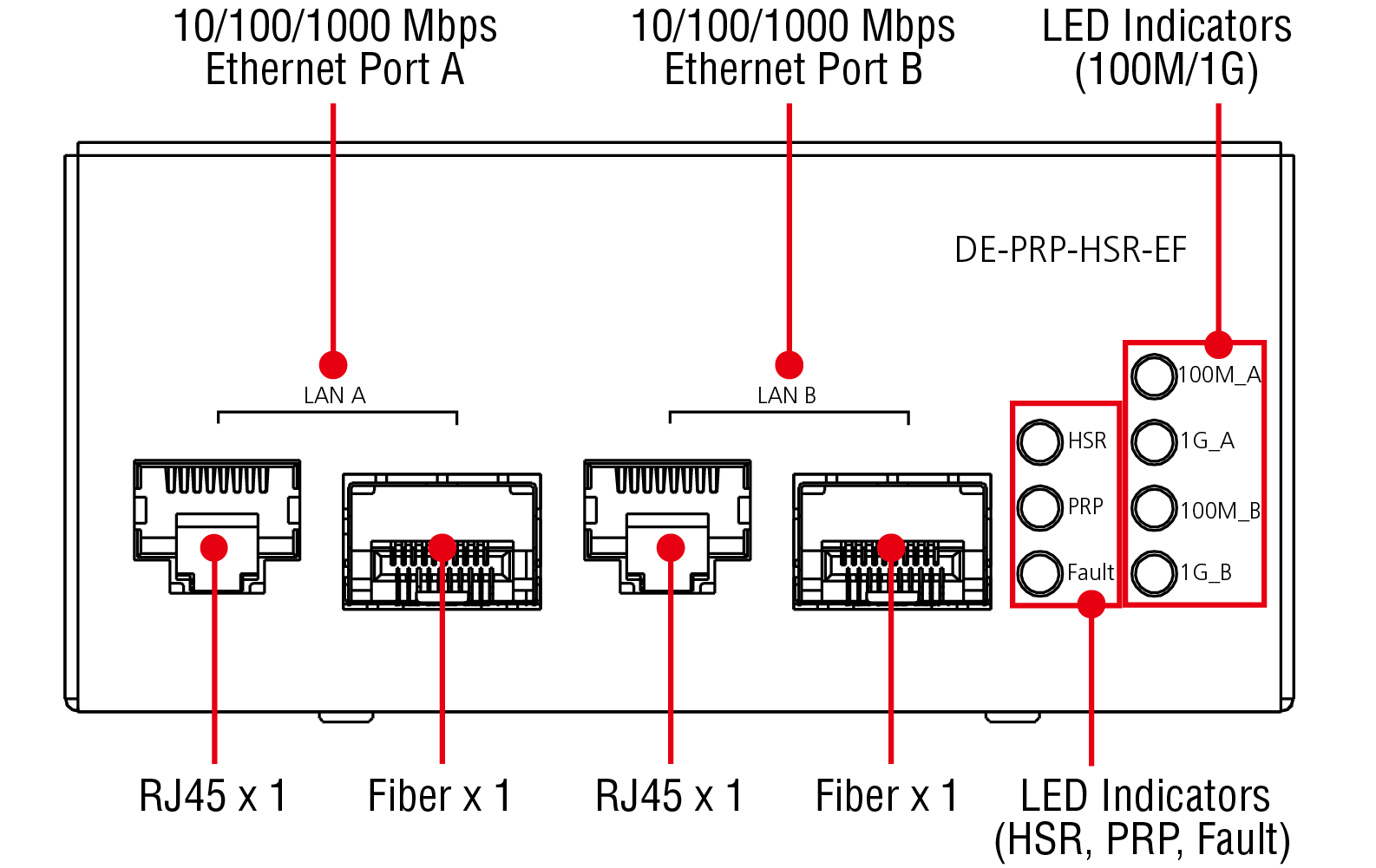

DE-PRP-HSR-EF

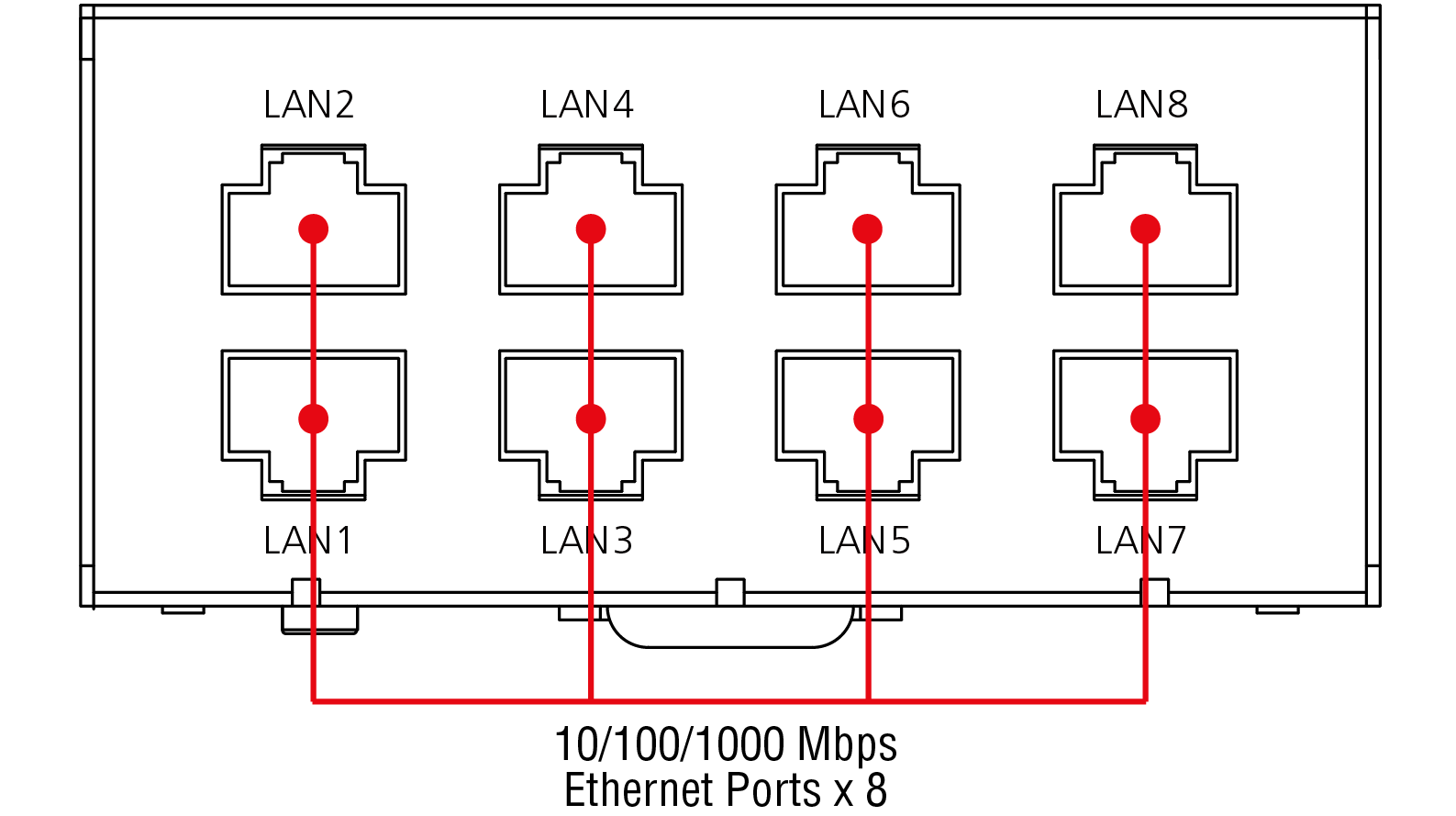

DE-LN08-RJ

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    DE-LN04-RJ: 4
    DE-LN08-RJ: 8
    DE-PRP-HSR-EF: 2

  • 1000BaseSFP Slots

    DE-PRP-HSR-EF: 2

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Dimensions

    213.31 x 95 mm (8.398 x 3.74 in)

  • Weight

    DE-LN04-RJ: 335 g (0.74 lb)
    DE-LN08-RJ: 365 g (0.80 lb)
    DE-PRP-HSR-EF: 365 g (0.80 lb)

  • Operating Temperature

    -25 to 55°C (-13 to 131°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    DE-LN04-RJ: 2,126,091 hrs
    DE-LN08-RJ: 1,459,164 hrs
    DE-PRP-HSR-EF: 1,895,911 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Driver Utility
Name Type Checksum Version Operating System Release Date
Utility for DA-720-Ethernet Series Expansion Modules (DE-PRP-HSR for Linux)
27.8 KB 		Utility
SHA-512
v1.0
  • Debian 8.x
 May 22, 2018 May 22, 2018 Release notes
Utility for DA-720-Ethernet Series Expansion Modules (DE-PRP-HSR for Windows 10)
1.4 MB 		Utility
SHA-512
v1.0
  • Windows 10 Enterprise LTSB
 May 22, 2018 May 22, 2018 Release notes
Driver for DA-720-Ethernet Series Expansion Modules (Perpheral for Windows 10)
897.3 MB 		Driver
SHA-512
v1.1
  • Windows 10 Enterprise LTSB
 May 25, 2017 May 25, 2017 Release notes
Driver for DA-720-Ethernet Series Expansion Modules (Expansion Module for Windows 10)
226.1 MB 		Driver
SHA-512
v1.0
  • Windows 10 Enterprise LTSB
 May 25, 2017 May 25, 2017 Release notes
Driver for DA-720-Ethernet Series Expansion Modules (gpio_misc for Linux)
86.4 KB 		Driver
SHA-512
v1.0
  • Debian 8.x
 Nov 12, 2016 Nov 12, 2016 Release notes
Driver for DA-720-Ethernet Series Expansion Modules (watchdog for Linux)
78.1 KB 		Driver
SHA-512
v1.0
  • Debian 8.x
 Nov 12, 2016 Nov 12, 2016 Release notes
Driver for DA-720-Ethernet Series Expansion Modules (mxser for Linux)
1.1 MB 		Driver
SHA-512
v1.0
  • Debian 8.x
 Nov 12, 2016 Nov 12, 2016 Release notes

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for DA-720-Ethernet Series Expansion Modules
864.4 KB 		Datasheet v1.0 Nov 12, 2018 Nov 12, 2018

Available Models (3)

Show Images
Compare

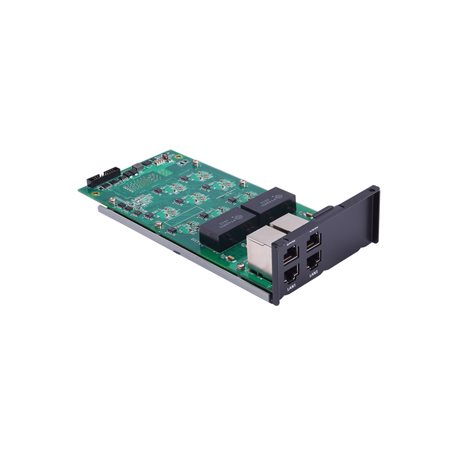

moxa-de-ln04-rj-image.jpg | MoxaDE-LN04-RJ
Compare

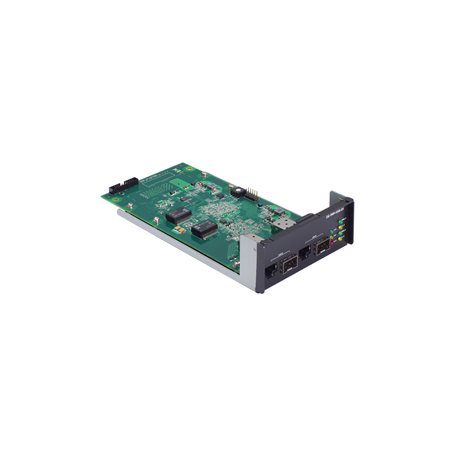

moxa-de-prp-hsr-ef-image.jpg | MoxaDE-PRP-HSR-EF
Compare

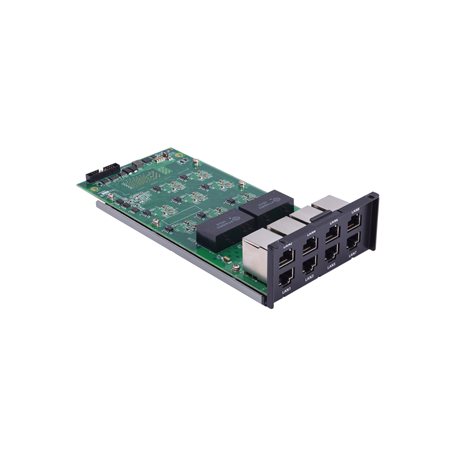

moxa-de-ln08-rj-image.jpg | MoxaDE-LN08-RJ
No. of Ports428
100/1000 Mbps✓✓✓
RJ45✓✓✓
1000Base SFP–✓–
PRP/HSR–✓–
