MiiNePort E1 Series

10/100 Mbps embedded serial device servers

moxa-miineport-e1-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Same size as an RJ45 connector—only 33.9 x 16.25 x 13.5 mm
  • Extremely low power consumption
  • Uses the MiiNe, Moxa’s second-generation SoC
  • NetEZ technology makes integration incredibly easy
  • Variety of operation modes, including Real COM, RFC2217, TCP, and UDP

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s MiiNePort E1 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E1 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, serial baudrates up to 921.6 kbps, a versatile selection of ready-to-use operation modes, and requires only a small amount of power. By using Moxa’s innovative NetEZ technology, the MiiNePort E1 can be used to convert any device with a standard serial interface to an Ethernet enabled device in no time. In addition, the MiiNePort E1 is the size of an RJ45 connector, making it easy to fit into virtually any existing serial device.

Moxa’s Second-generation SoC

The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E1, which uses the MiiNe for its SoC, is one of the world’s tiniest embedded device servers and has the lowest power consumption of any similar product. The MiiNe has the following features:

  • Designed for 1 or 2-port serial-to-Ethernet applications

  • Uses a 32-bit Arm 7 core

  • Uses Moxa’s own advanced UART technology

  • 2 MB Flash and 4 MB SDRAM memory built in

NetEZ Technology

Moxa’s NetEZ technology makes the MiiNePort E1 one of the most user-friendly embedded device servers by promising ease-of-use with minimal integration work required. Moxa’s NetEZ technology gives serial device manufacturers a range of powerful tools for integrating Ethernet capability into serial devices. These tools include EXTrigger, MCSC (multi-channel serial communications), Serial Communication Mode (SCM), and AutoCFG. With EXTrigger, resetting and restarting the device can be done in an instant by simply pressing the EXTrigger button, making troubleshooting much easier. There is no need to open the device's casing or interrupt operations. MCSC provides dual connections and dual channels for multitask applications, which enable the device to be a server and client at the same time. The MiiNePort's user-friendly SCM allows users to configure the network through serial communications inside the serial device. This function provides another option for on-site troubleshooting without an Internet connection. AutoCFG enables auto-configuration with mass configuration software in order to place default settings on multiple modules simultaneously. This technology not only accelerates time-to-market but also prevents manual errors.

  • CPU

    32-bit Arm Core

  • Flash

    2 MB

  • SDRAM

    4 MB

  • Configurable DIO Channels (by software)

    1

  • Digital Input Channels

    1

  • Digital Output Channels

    1

  • 10/100BaseT(X) Ports, Auto MDI/MDI-X

    8-pin RJ45

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP), Windows Utility, Telnet Console, Serial Console

  • Management

    ARP, BOOTP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, ICMP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • No. of Ports

    1

  • Serial Standards

    TTL

  • Operation Modes

    MiiNePort E1 Series: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode
    MiiNePort E1-SDK: Real COM mode, Ethernet Modem mode

  • Baudrate

    MiiNePort E1 Series: 50 bps to 230.4 kbps
    MiiNePort E1-H/-SDK Series: 50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • TTL

    • • TxD, RxD, RTS, CTS, RST (reset circuit), GND
  • NetEZ Functions

    ExTrigger, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication)

  • Serial to Ethernet Sample Source Code

    MiiNePort E1-SDK (Integrated in MiiNePort-IDE):
    1. TCP Server Echo
    2. TCP Server to Serial (Single connection)
    3. TCP Server to Serial (Multi-connection)
    4. TCP Client Echo
    5. TCP Client to Serial (Startup)
    6. TCP Client to Serial (Any character)
    7. TCP Client to Serial (Designed destination TCP/IP port from serial)
    8. UDP Echo
    9. UDP to Serial

  • Input Current

    MiiNePort E1 Series: 160 mA @ 3.3 VDC max.
    MiiNePort E1-H/-SDK Series: 195 mA @ 3.3 VDC max.

  • Input Voltage

    3.3 VDC

  • Dimensions

    MiiNePort E1-ST/-SDK Series: 140 x 100 mm (5.51 x 3.94 in)
    MiiNePort E1/E1-H/E1-SDK Series: 33.9 x 16.25 x 13.5 mm (1.33 x 0.64 x 0.53 in)

  • Weight

    MiiNePort E1/E1-H/E1-SDK Series: 9 g (0.02 lb)

  • Form Factor Type

    Drop-in modules

  • Operating Temperature

    Standard models: 0 to 55˚C (32 to 131˚F)
    Wide Temp. models: -40 to 85˚C (-40 to 185˚F)

  • Storage Temperature (package included)

    -40 to 60°C (-40 to 140°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-3

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    5,515,294 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Real TTY drivers for Linux 2.x.x
92.2 KB
Driver v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2019-10-24 Oct 24, 2019 Release notes
Real TTY drivers for Linux 3.x.x
95.0 KB
Driver v3.0
  • Linux Kernel 3.x
2019-10-24 Oct 24, 2019 Release notes
Real TTY drivers for Linux 4.x.x
95.4 KB
Driver v4.0
  • Linux Kernel 4.x
2019-10-24 Oct 24, 2019 Release notes
Real TTY drivers for Linux 5.x.x
95.3 KB
Driver v5.0
  • Linux Kernel 5.x
2019-10-24 Oct 24, 2019 Release notes
Device Search Utility
1.1 MB
Utility v2.3
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Vista
  • Windows XP
2019-09-01 Sep 01, 2019 Release notes
Windows Driver Manager (for Windows 7, Server 2008, or later)
2.9 MB
Driver v3.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2019-05-20 May 20, 2019 Release notes
Utility for MiiNePort E1 Series (MiiNePort-IDE)
138.8 MB
Utility v1.0
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2019-04-12 Apr 12, 2019 Release notes
Driver for MiiNePort E1 Series (TTY driver for Unix)
73.0 KB
Driver v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
2019-01-18 Jan 18, 2019 Release notes
Windows Driver Manager
2.6 MB
Driver v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2018-08-22 Aug 22, 2018 Release notes
Device Server Android API
18.1 MB
Driver v1.0
  • Android
2018-01-19 Jan 19, 2018 Release notes
Firmware for MiiNePort E1 Series
637.2 KB
Firmware v1.8
2016-11-30 Nov 30, 2016 Release notes
Driver for MiiNePort E1 Series (WinCE 5)
230.5 KB
Driver v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012-11-14 Nov 14, 2012 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012-05-13 May 13, 2012 Release notes
Driver for MiiNePort E1 Series (WinXP Embedded)
1.2 MB
Driver v1.14
  • Windows XP Embedded
2012-04-04 Apr 04, 2012 Release notes
Software Package for MiiNePort E1 Series (DIO Tester)
111.3 KB
Software Package v2.1
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2009-09-28 Sep 28, 2009 Release notes
Library for MiiNePort E1 Series (DIO Tester)
111.2 KB
Library v2.1
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2009-09-27 Sep 27, 2009 Release notes

Support Documents

Name Type Version Release Date
Datasheet for MiiNePort E1 Series
918.1 KB
Datasheet v1.2 2019-11-08 Nov 08, 2019
QIG for MiiNePort E Series
1.8 MB
QIG v1.0 2019-11-05 Nov 05, 2019
Manual for MiiNePort E1 Series (MiiNePort E1-SDK)
4.0 MB
Manual v4.0 2019-04-12 Apr 12, 2019
Manual for MiiNePort E1 Series
6.3 MB
Manual v7.0 2018-01-18 Jan 18, 2018
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
Tech Note v1.0 2014-11-17 Nov 17, 2014
Tech Note: TCP Server Mode for NPort
311.3 KB
Tech Note v1.0 2013-06-29 Jun 29, 2013
Tech Note: MiiNePort Dual-Channel Multitasking With MCSC
933.1 KB
Tech Note v1.0 2012-06-29 Jun 29, 2012
Manual for MiiNePort E1 Series (E1-ST board BOM file)
37.0 KB
Manual v1.0 2012-06-13 Jun 13, 2012
3D CAD for MiiNePort E1
213.4 KB
3D CAD 2012-05-31 May 31, 2012
2D CAD for MiiNe E1
804.4 KB
2D CAD 2012-05-31 May 31, 2012
Tech Note: Auto-configuration of the MiiNePort Series
515.7 KB
Tech Note v1.0 2012-05-30 May 30, 2012
Manual for MiiNePort E1 Series (Schematic Design Guide)
44.1 KB
Manual v1.0 2010-08-23 Aug 23, 2010
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: NPort's Pair Connection Mode
211.4 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: Real COM Mode for NPort
253.0 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: TCP Client Mode for NPort
224.4 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: UDP Mode for NPort
173.2 KB
Tech Note v1.0 2009-11-03 Nov 03, 2009
Tech Note: Fixed TTY Driver for NPort
207.6 KB
Tech Note v1.0 2009-05-21 May 21, 2009
Tech Note: Real TTY Driver for NPort
204.2 KB
Tech Note v1.0 2009-05-21 May 21, 2009

Available Models (7)

Show Images
moxa-miineport-e1-image.jpg | MoxaMiiNePort E1moxa-miineport-e1-h-image.jpg | MoxaMiiNePort E1-Hmoxa-miineport-e1-t-image.jpg | MoxaMiiNePort E1-Tmoxa-miineport-e1-h-t-image.jpg | MoxaMiiNePort E1-H-T
No. of Serial Ports1111
Supported Baudrates50 bps to 230.4 kbps50 bps to 921.6 kbps50 bps to 230.4 kbps50 bps to 921.6 kbps
Operating Temp.0 to 55°C0 to 55°C-40 to 85°C-40 to 85°C
With MiiNePort E1
With Evaluation Board
With Software Development Kit
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-miineport-e1-st-image.jpg | MoxaMiiNePort E1-STmoxa-miineport-e1-st-w-o-module-image.jpg | MoxaMiiNePort E1-ST (w/o module)moxa-miineport-e1-sdk-image.jpg | MoxaMiiNePort E1-SDK
No. of Serial Ports111
Supported Baudrates50 bps to 921.6 kbps50 bps to 921.6 kbps50 bps to 921.6 kbps
Operating Temp.0 to 55°C0 to 55°C0 to 55°C
With MiiNePort E1
With Evaluation Board
With Software Development Kit
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Added To Bag

MiiNePort E1 Series

MiiNePort E1

moxa-miineport-e1-image.jpg | Moxa

Buy online from our distributors

MiiNePort E1 Series

MiiNePort E1-H

moxa-miineport-e1-h-image.jpg | Moxa

Buy online from our distributors

MiiNePort E1 Series

MiiNePort E1-T

moxa-miineport-e1-t-image.jpg | Moxa

Buy online from our distributors

MiiNePort E1 Series

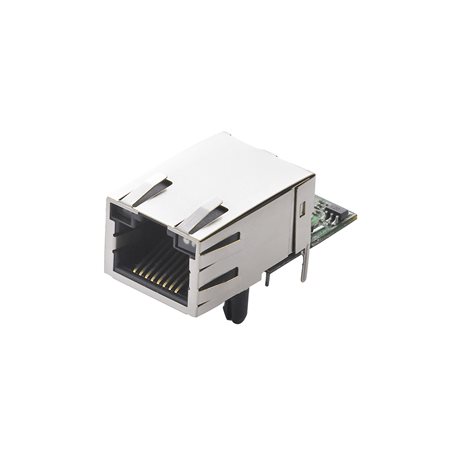

MiiNePort E1-H-T
