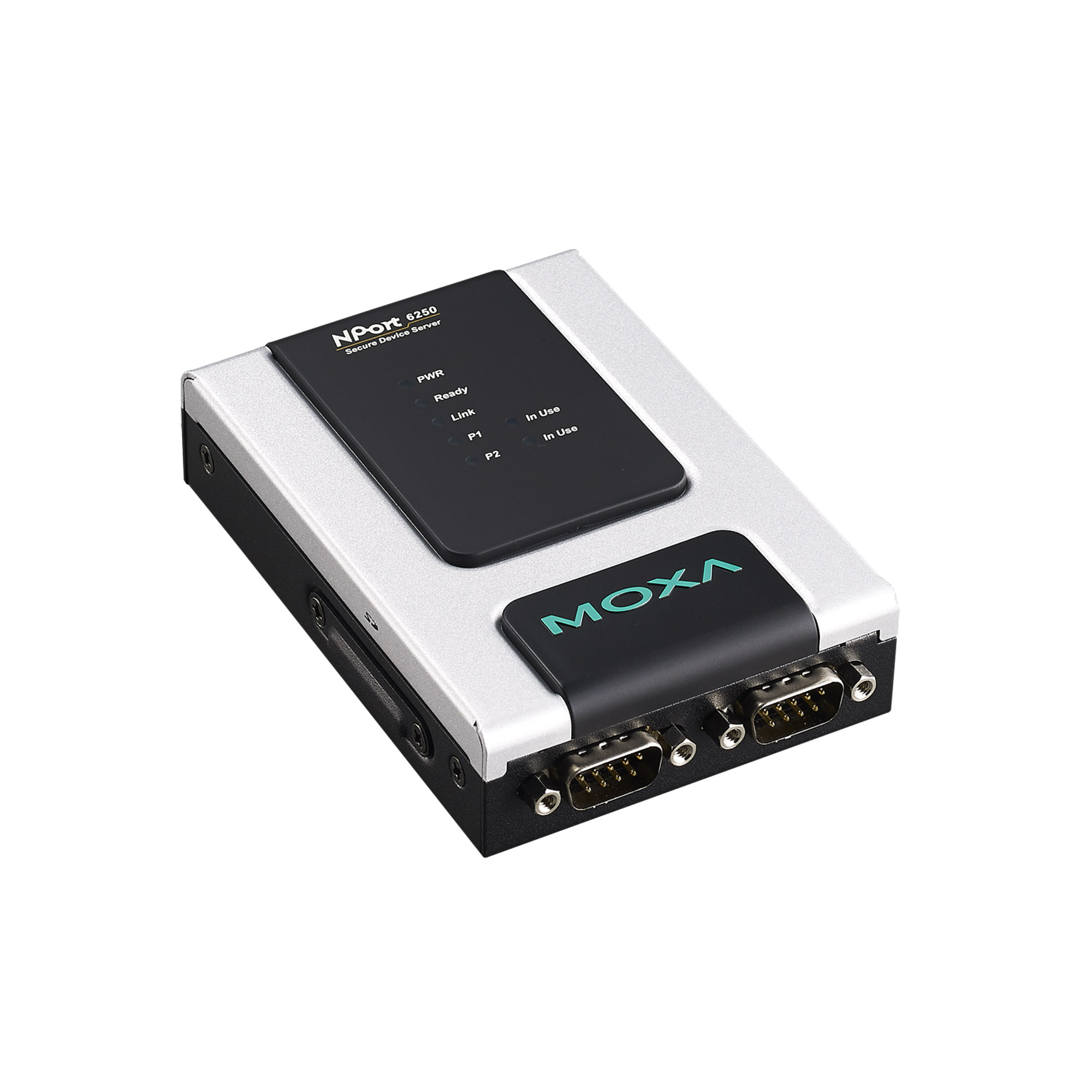

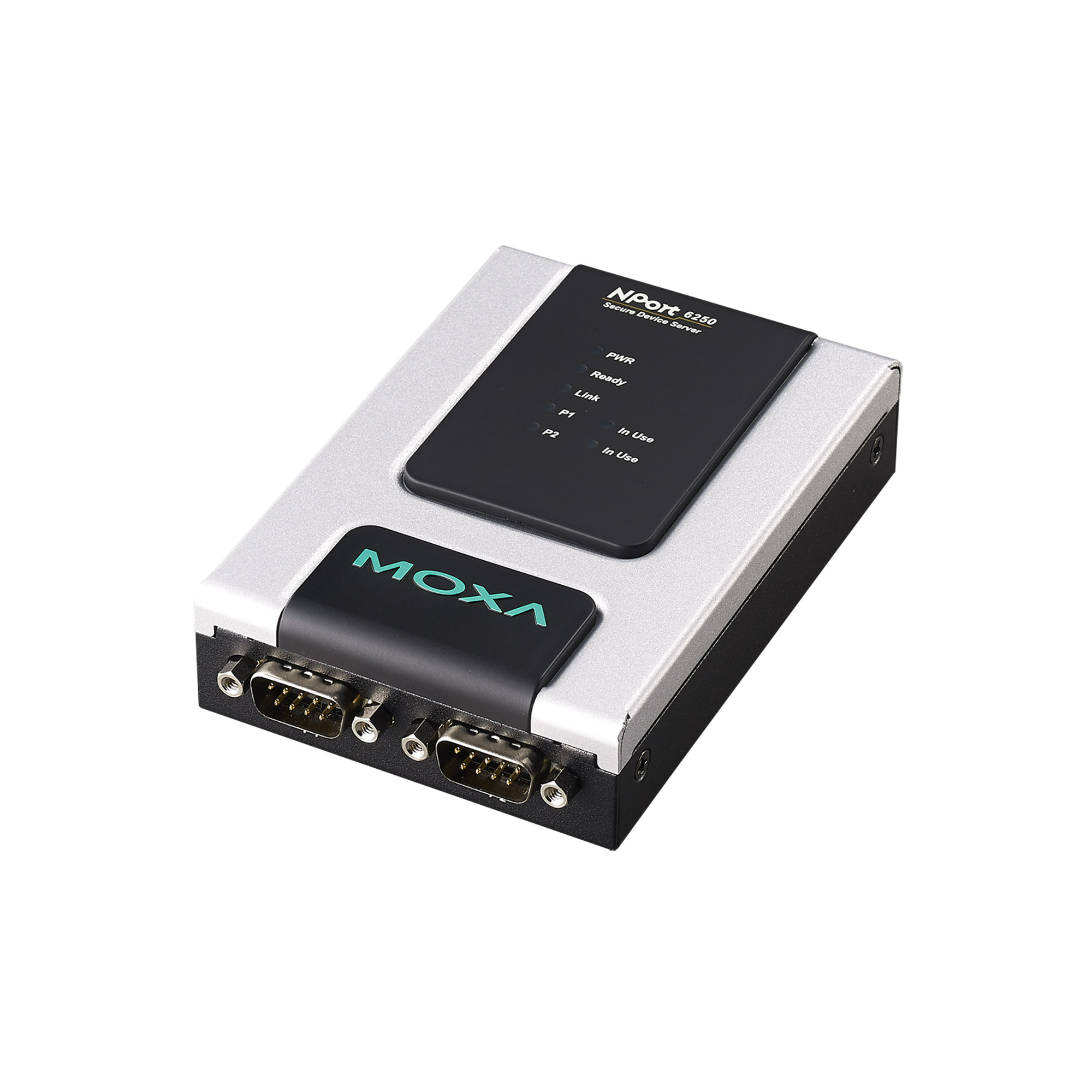

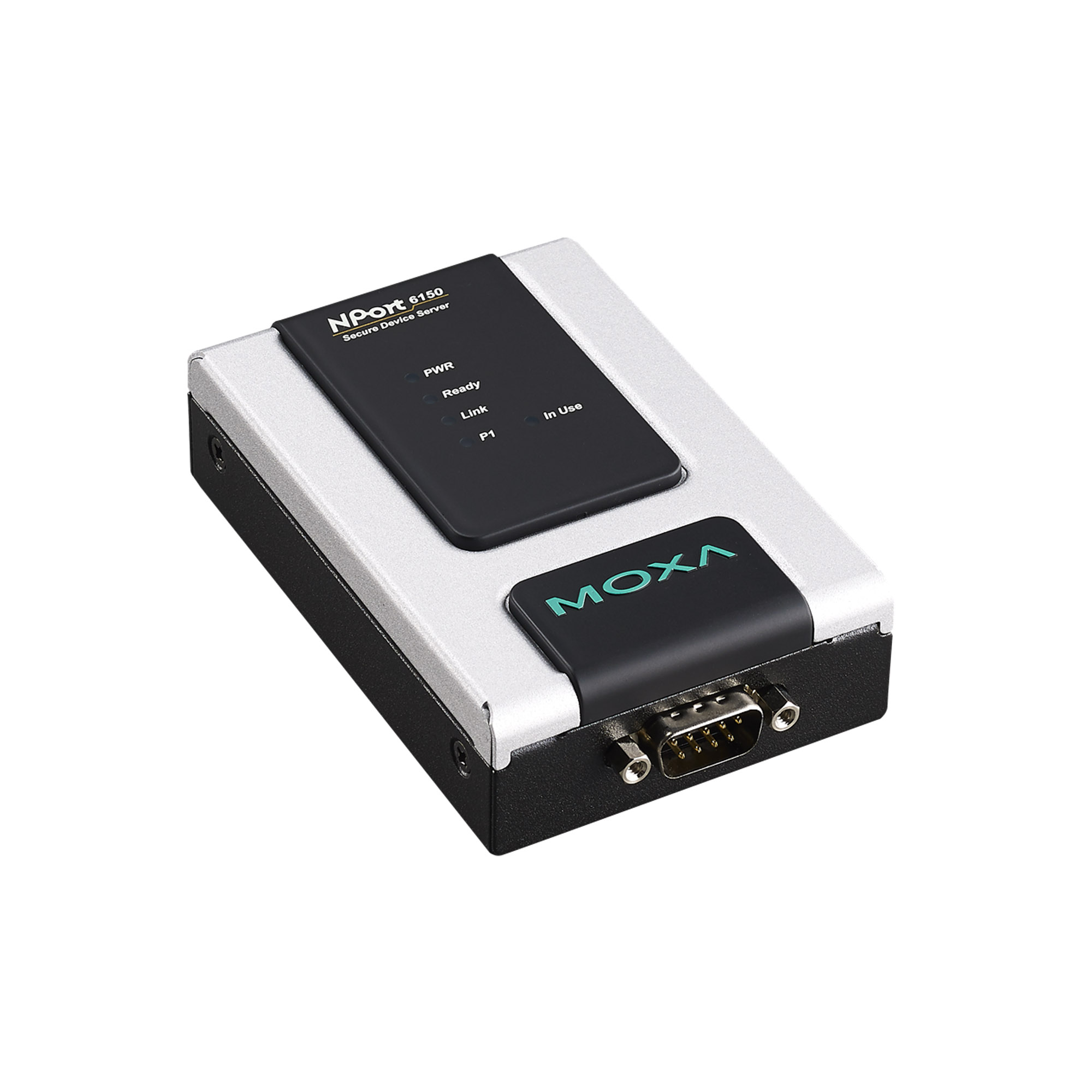

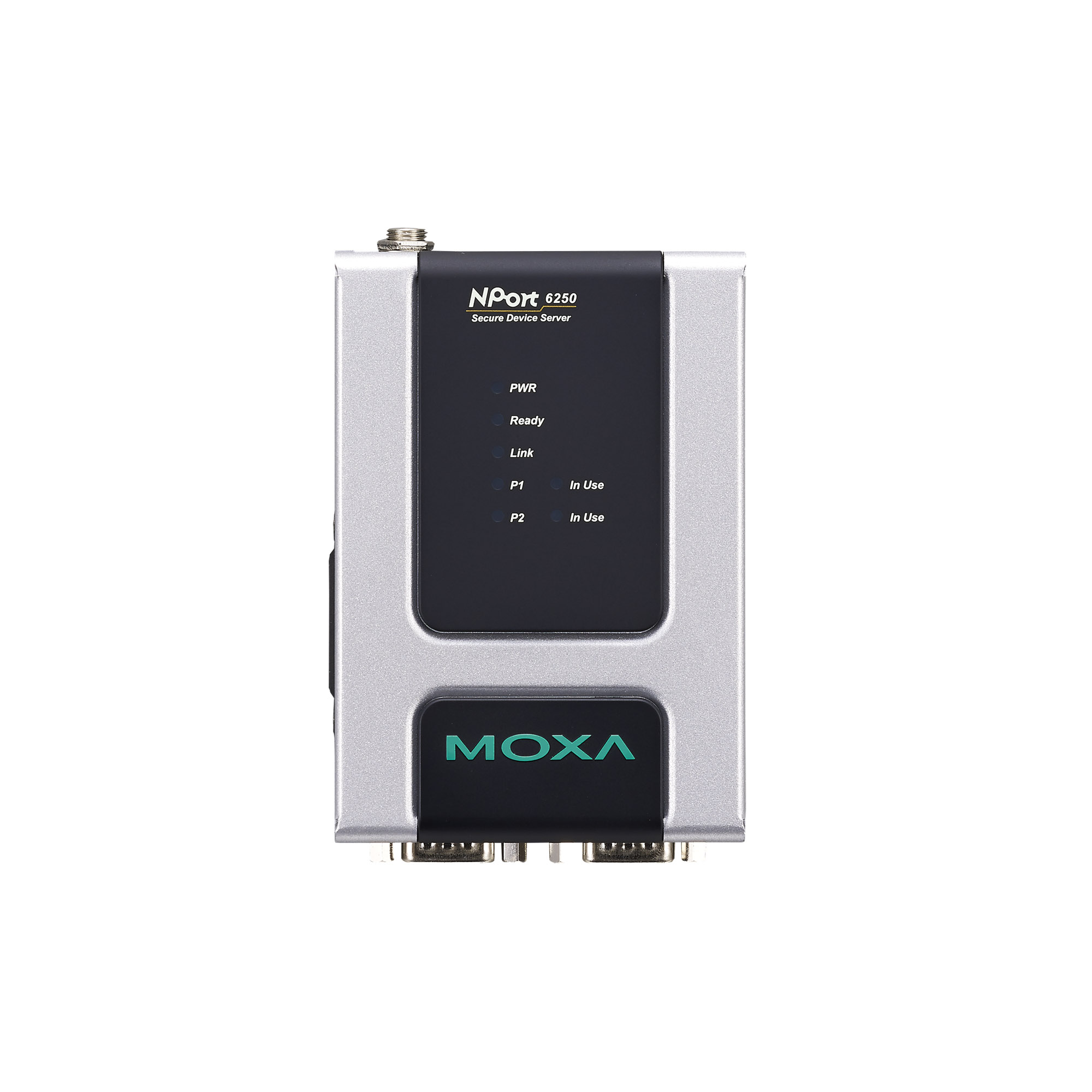

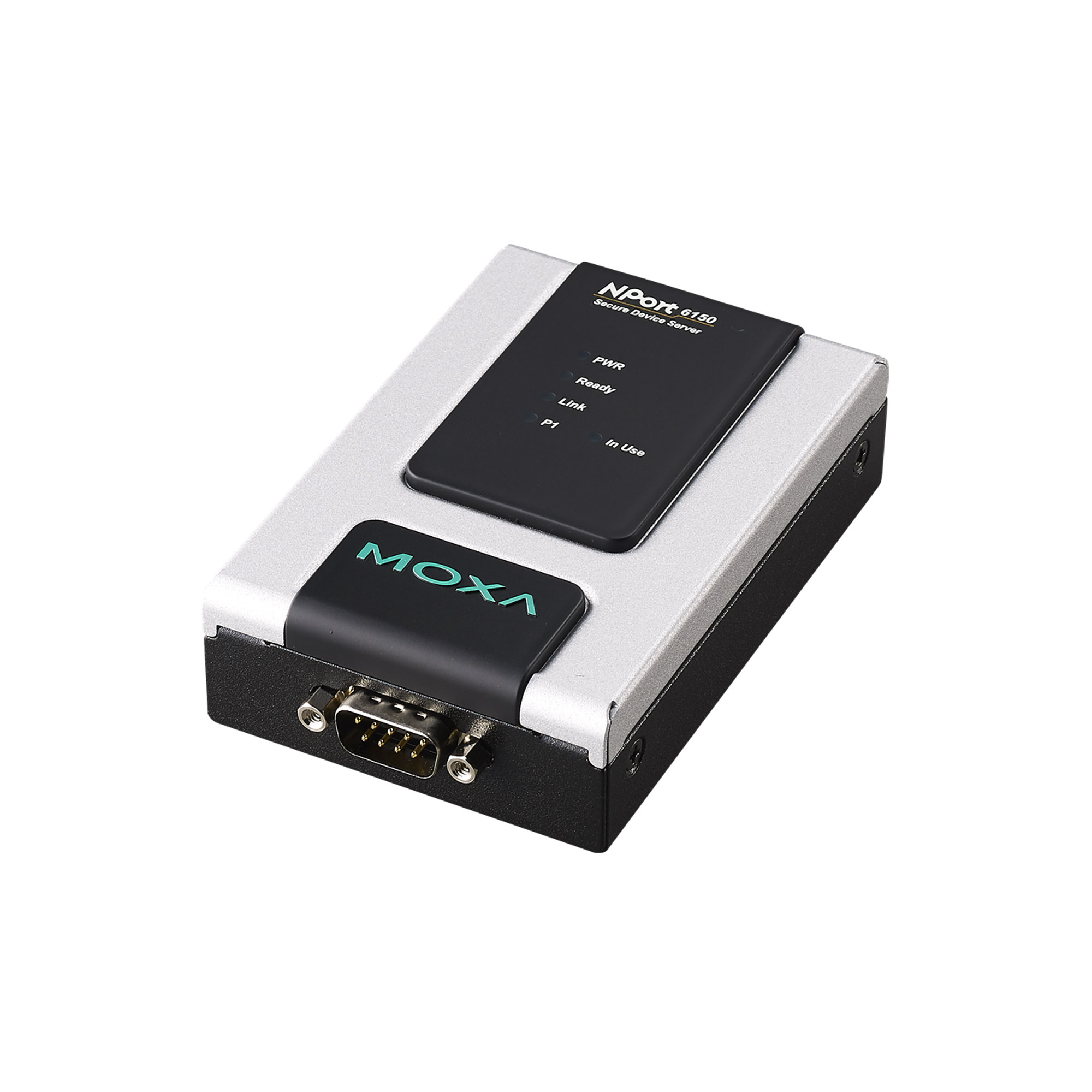

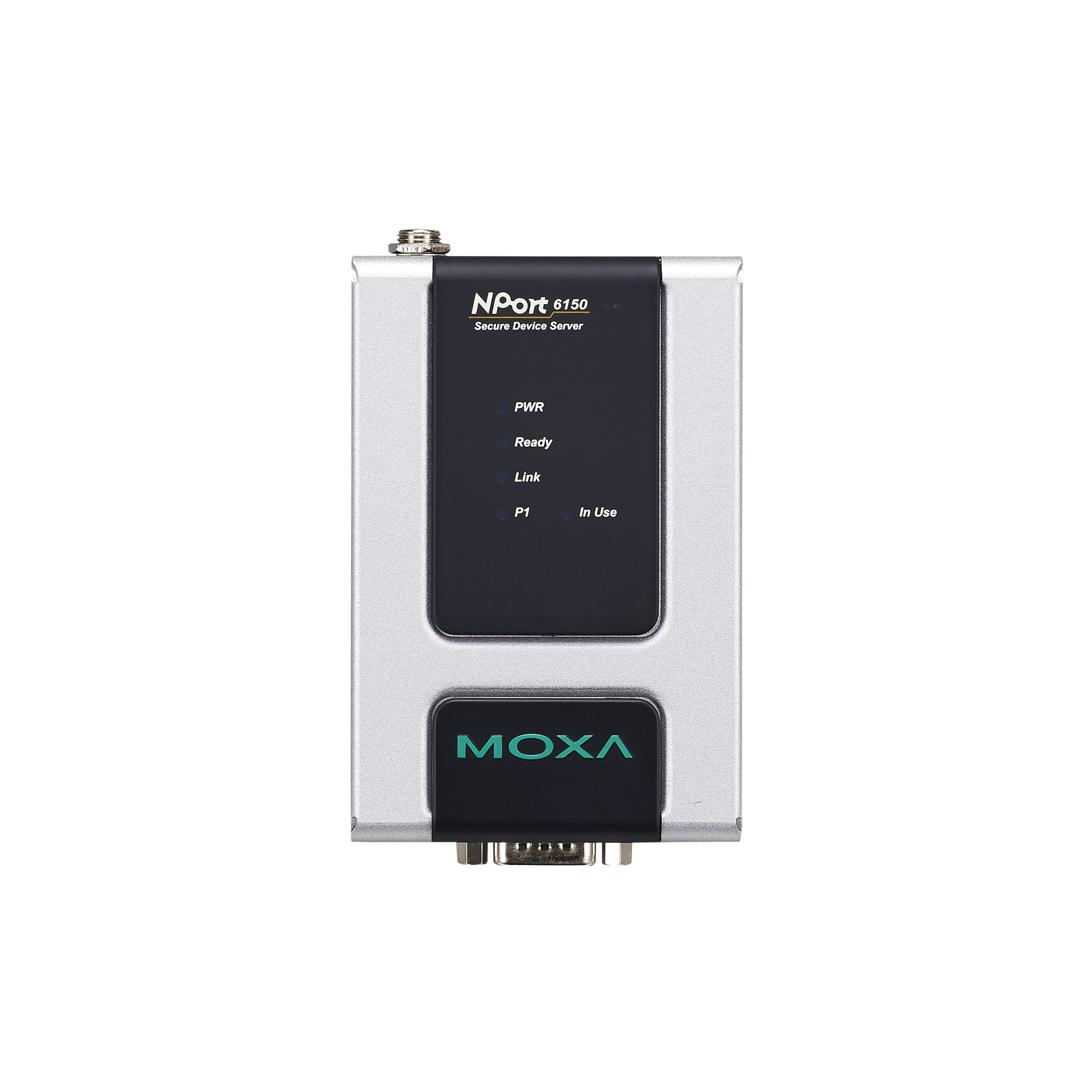

NPort 6100/6200 Series

1/2-port RS-232/422/485 secure terminal servers

moxa-nport-6100-6200-series-image-2-(1).jpg | Moxa

moxa-nport-6100-6200-series-image-3-(1).jpg | Moxa

moxa-nport-6100-6200-series-image-4-(1).jpg | Moxa

moxa-nport-6100-6200-series-image-5-(1).jpg | Moxa

moxa-nport-6100-6200-series-image-6-(1).jpg | Moxa

Features and Benefits

Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
Supports nonstandard baudrates with high precision
NPort 6250: Choice of network medium: 10/100BaseT(X) or 100BaseFX
Enhanced remote configuration with HTTPS and SSH
Port buffers for storing serial data when the Ethernet is offline
Supports IPv6
Generic serial commands supported in Command-by-Command mode
Security features based on IEC 62443

Certifications

Contact Sales

Introduction

The NPort® 6000 device servers use the SSL and SSH protocols to transmit encrypted serial data over Ethernet. The NPort® 6000’s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort® 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fiber network. Both single-mode and multi-mode fiber are supported.

Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the SSL and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6000, users can rest assured that serial data is transmitted securely over both private and public networks.

Zero Data Loss If Ethernet Connection Fails

The NPort® 6250 device servers help guarantee reliability by providing users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6250 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6250 will immediately release all of the data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

SD Slot

NPort 6200 Series: Up to 32 GB (SD 2.0 compatible)

10/100BaseT(X) Ports (RJ45 connector)

NPort 6150/6150-T: 1
NPort 6250/6250-T: 1
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)

NPort 6250-M-SC Series: 1
100BaseFX Ports (single-mode SC connector)

NPort 6250-S-SC Series: 1
Magnetic Isolation Protection

1.5 kV (built-in)
Optical Fiber

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Configuration Options

Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
Management

ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4/IPv6, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, PPPOE, ICMP
Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API

Android 3.1.x and later
MIB

MIB-II
Unicast Routing

RIPV1/V2, Static Route

Connector

DB9 male
No. of Ports

NPort 6150 Series: 1
NPort 6250 Series: 2
Serial Standards

RS-232, RS-422, RS-485
Secure Operation Modes

Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
Standard Operation Modes

Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
Baudrate

50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits

5, 6, 7, 8
Stop Bits

1, 1.5, 2
Flow Control

RTS/CTS, DTR/DSR, XON/XOFF
Parity

None, Even, Odd, Space, Mark
Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485

120 ohms
RS-485 Data Direction Control

ADDC® (automatic data direction control)

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND

Input Current

NPort 6150/6150-T: 285 mA @ 12 VDC
NPort 6250/6250-T: 333 mA @ 12 VDC
NPort 6250-M-SC/6250-M-SC-T: 428 mA @ 12 VDC
NPort 6250-S-SC/6250-S-SC-T: 376 mA @ 12 VDC
Input Voltage

12 to 48 VDC

Automatic Reboot Trigger

Built-in WDT
Alert Tools

Built-in buzzer and RTC (real-time clock)

Housing

Metal
Dimensions (with ears)

NPort 6150 Series: 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in)
NPort 6250 Series: 89 x 111 x 29 mm (3.50 x 4.37 x 1.1 in)
Dimensions (without ears)

NPort 6150 Series: 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in)
NPort 6250 Series: 77 x 111 x 29 mm (3.30 x 4.37 x 1.1 in)
Weight

NPort 6150 Series: 700 g (1.54 lb)
NPort 6250 Series: 730 g (1.61 lb)
Installation

Desktop, DIN-rail mounting (with optional kit), Wall mounting

Operating Temperature

Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/24
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Safety

UL 60950-1
Traffic Control

NEMA TS2 (excluding fiber models)
Vibration

IEC 60068-2-6
Freefall

IEC 60068-2-34

Green Product

RoHS, CRoHS, WEEE

Time

NPort 6150/6150-T: 2,097,705 hrs
NPort 6250/6250-T: 1,947,486 hrs
NPort 6250-M-SC/6250-M-SC-T: 1,092,794 hrs
NPort 6250-S-SC/6250-S-SC-T: 1,477,682 hrs
Standards

Telcordia (Bellcore) Standard TR/SR

Warranty Period

5 years
Details

See www.moxa.com/warranty
