NPort 6400/6600 Series

4/8/16/32-port RS-232/422/485 secure terminal servers

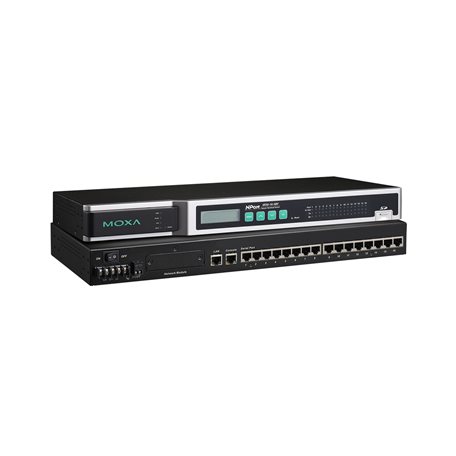

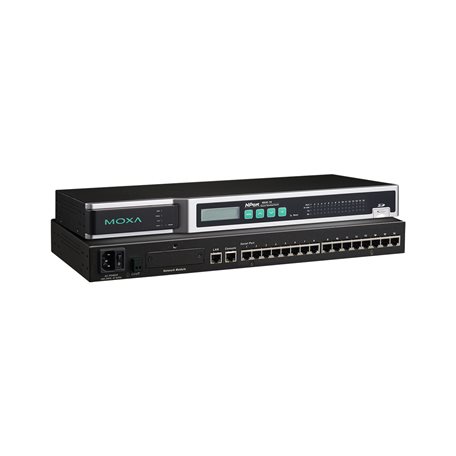

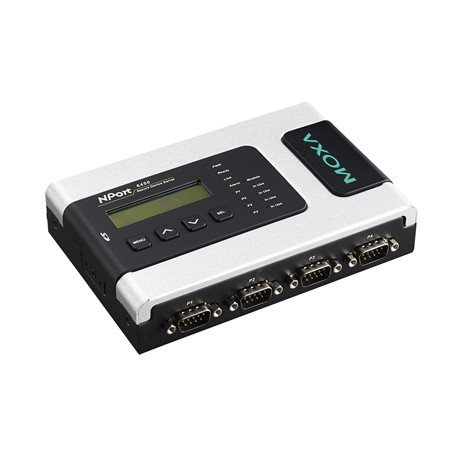

moxa-nport-6400-6600-series-image-(1).jpg | Moxa
moxa-nport-6400-6600-series-image-1-(1).jpg | Moxa
moxa-nport-6400-6600-series-image-2-(1).jpg | Moxa
moxa-nport-6400-6600-series-image-3-(1).jpg | Moxa
moxa-nport-6400-6600-series-image-4-(1).jpg | Moxa
moxa-nport-6400-6600-series-image-5-(1).jpg | Moxa

Features and Benefits

  • LCD panel for easy IP address configuration (standard temp. models)
  • Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Nonstandard baudrates supported with high precision
  • Port buffers for storing serial data when the Ethernet is offline
  • Supports IPv6
  • Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
  • Generic serial commands supported in Command-by-Command mode
  • Security features based on IEC 62443

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NPort® 6000 is a terminal server that uses the TLS and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for AES encryption algorithm. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.

No Data Loss If Ethernet Connection Fails

The NPort® 6000 is a reliable device server that provides users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6000 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6000 will immediately release all data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.

LCD Panel Makes Configuration Easy

The NPort® 6600 has a built-in LCD panel for configuration. The panel displays the server name, serial number, and IP address, and any of the device server’s configuration parameters, such as IP address, netmask, and gateway address, can be updated easily and quickly.

Note: The LCD panel is only available with standard-temperature models.

Adjustable Resistor Values for RS-485 Communication

The NPort® 6600 provides adjustable termination, pull high, and pull low resistors for RS-485 communication. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high and pull low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values works for every environment, the NPort® 6600 allows manual adjustment of the resistor values for each serial port using built-in DIP switches.

  • SD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Alarm Contact Channels

    Resistive load: 1 A @ 24 VDC

  • 10/100BaseT(X) Ports (RJ45 connector)

    1
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Compatible Modules

    NM Series expansion modules for optional extension of RJ45 and fiber Ethernet ports

  • Optical Fiber

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Windows Utility
    Device Search Utility (DSU)
    MCC Tool
    Serial Console
    Telnet/SSH Console

  • Management

    ARP
    BOOTP
    DHCP Client
    DNS
    HTTP
    ICMP
    IPv4/IPv6
    LLDP
    PPPOE
    SMTP
    SNMPv1/v2c/v3
    SNTP
    TCP/IP
    Telnet
    UDP

  • Windows Real COM Drivers

    Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
    Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
    Windows Embedded CE 6.0/5.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

  • Fixed TTY Drivers

    macOS Versions: 11.x, 10.12 to 10.15

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Arm®-based Platform Support

    Linux Kernel 5.x/4.x

  • Virtual Machine

    VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 10.12 to 11.x)
    Parallels Desktop (Windows on macOS 10.12 to 11.x)

  • Android API

    Android 3.1.x and later

  • MIB

    MIB-II

  • Time Management

    SNTP Client

  • Unicast Routing

    RIPV1/V2
    Static Route

  • Authentication

    Local database
    RADIUS
    TACACS+

  • Encryption

    HTTPS
    AES-128
    AES-256
    HMAC
    RSA-1024
    SHA-1
    SHA-256
    SHA-384

  • Security Protocols

    HTTPS (TLS 1.2)
    SNMPv3
    SSHv2

  • Connector

    NPort 6600 Models: 8-pin RJ45
    NPort 6450 Models: DB9 male

  • No. of Ports

    NPort 6450 Models: 4
    NPort 6600-8 Models: 8
    NPort 6600-16 Models: 16
    NPort 6600-32 Models: 32

  • Serial Standards

    NPort 6610 Models: RS-232
    NPort 6450/6650 Models: RS-232/422/485

  • Secure Operation Modes

    Reverse SSH
    Secure Pair Connection
    Secure Real COM
    Secure TCP Client
    Secure TCP Server
    SSH

  • Standard Operation Modes

    Disabled
    Ethernet Modem
    Pair Connection
    PPP
    Printer
    Real COM
    Reverse Telnet
    RFC2217
    TCP Client
    TCP Server
    Terminal
    UDP

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Console Port

    NPort 6600 Models: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Flow Control

    RTS/CTS
    DTR/DSR
    XON/XOFF

  • Pull High/Low Resistor for RS-485

    NPort 6450 / 6650 Models: 1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    NPort 6450/6650 Models: Automatic Data Direction Control (ADDC)

  • Terminator for RS-485

    NPort 6450 / 6650 Models: 120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 6450 Models: 730 mA @ 12 VDC

    NPort 6600 Models:
    DC Models: 293 mA @ 48 VDC, 200 mA @ 88 VDC
    AC Models: 140 mA @ 100 VAC (8 ports), 192 mA @ 100 VAC (16 ports), 285 mA @ 100 VAC (32 ports)

  • Input Voltage

    NPort 6450 Models: 12 to 48 VDC

    NPort 6600 Models:
    AC Models: 100 to 240 VAC
    DC -48V Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
    DC -HV Models: 110 VDC (88 to 300 VDC)

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Installation

    NPort 6450 Models: Desktop, DIN-rail mounting, Wall mounting
    NPort 6600 Models: Rack mounting (with optional kit)

  • Dimensions (with ears)

    NPort 6450 Models: 181 x 103 x 35 mm (7.13 x 4.06 x 1.38 in)
    NPort 6600 Models: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)

  • Dimensions (without ears)

    NPort 6450 Models: 158 x 103 x 35 mm (6.22 x 4.06 x 1.38 in)
    NPort 6600 Models: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)

  • Weight

    NPort 6450 Models: 1,020 g (2.25 lb)
    NPort 6600-8 Models: 3,460 g (7.63 lb)
    NPort 6600-16 Models: 3,580 g (7.89 lb)
    NPort 6600-32 Models: 3,600 g (7.94 lb)

  • Interactive Interface

    LCD panel display (non-T models only)
    Push buttons for configuration (non-T models only)

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    -HV Models: -40 to 85°C (-40 to 185°F)
    All other -T Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    Standard Models: -40 to 75°C (-40 to 167°F)
    -HV Models: -40 to 85°C (-40 to 185°F)
    All other -T Models: -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    NPort 6450 Models:
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

    NPort 6600 Models (except -48V/-HV models):
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

    NPort 6600-48V Models:
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

    NPort 6650-HV Models:
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Safety

    UL 60950-1

  • Traffic Control

    NEMA TS2

  • Vibration

    IEC 60068-2-6

  • Freefall

    IEC 60068-2-34

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    NPort 6450 Models: 850,905 hrs
    NPort 6610-8 Models: 135,891 hrs
    NPort 6610-16 Models: 102,373 hrs
    NPort 6610-32 Models: 68,707 hrs
    NPort 6650-8 Models: 636,600 hrs
    NPort 6650-16 Models: 439,673 hrs
    NPort 6650-32 Models: 310,078 hrs
    NPort 6650-8-HV-T: 501,171 hrs
    NPort 6650-16-HV-T: 380,006 hrs
    NPort 6650-32-HV-T: 290,914 hrs

  • Standards

    NPort 6450 Models: Telcordia (Bellcore) Standard TR/SR
    NPort 6600 Models: Telcordia (Bellcore) Standard

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Firmware for NPort 6000 Series
1.5 MB
Firmware
SHA-512
v2.3
Nov 25, 2024 Nov 25, 2024 Release notes
MXconfig plugin (non-Java version)
1.8 MB
Software Package
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2016
  • Windows Server 2019
Nov 11, 2024 Nov 11, 2024 Release notes
MXconfig Plugin
3.6 MB
Software Package
SHA-512
v1.7
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
Nov 11, 2024 Nov 11, 2024 Release notes
MXview One plugin (Windows)
18.7 MB
Software Package
SHA-512
v1.6
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Nov 11, 2024 Nov 11, 2024 Release notes
Moxa CLI Configuration Tool for Linux
11.6 MB
Utility
SHA-512
v1.4
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
  • Linux Kernel 6.x
Nov 07, 2024 Nov 07, 2024 Release notes
Moxa CLI Configuration Tool for Windows
2.0 MB
Utility
SHA-512
v1.4
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Nov 07, 2024 Nov 07, 2024 Release notes
MXview One plugin (Linux)
18.7 MB
Software Package
SHA-512
v1.6
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
Nov 04, 2024 Nov 04, 2024 Release notes
Device Search Utility
428.1 MB
Utility
SHA-512
v3.0
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Oct 31, 2024 Oct 31, 2024 Release notes
MXview Plugin
41.7 MB
Software Package
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Oct 04, 2024 Oct 04, 2024 Release notes
Windows Driver Manager (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
8.9 MB
Driver
SHA-512
v3.6
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Sep 22, 2024 Sep 22, 2024 Release notes
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
9.4 MB
Driver
SHA-512
v4.3
  • Windows 11
  • Windows Server 2022
Sep 22, 2024 Sep 22, 2024 Release notes
Software Package for MXview One Series (Windows version)
300.8 MB
Software Package
SHA-512
v1.4.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Sep 20, 2024 Sep 20, 2024 Release notes
Software Package for MXview One Series (Linux version)
404.8 MB
Software Package
SHA-512
v1.4.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
Sep 20, 2024 Sep 20, 2024 Release notes
Real TTY Linux Kernel 6.x Driver
590.0 KB
Driver
SHA-512
v6.1
  • Linux Kernel 6.x
Sep 05, 2024 Sep 05, 2024 Release notes
Serial Device Server Driver for macOS (macOS 11.x to 14)
6.3 MB
Driver
SHA-512
v1.3
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
Sep 02, 2024 Sep 02, 2024 Release notes
Real TTY Linux Kernel 4.x Driver
600.0 KB
Driver
SHA-512
v4.3
  • Linux Kernel 4.x
Aug 07, 2024 Aug 07, 2024 Release notes
Real TTY Linux Kernel 5.x Driver
590.0 KB
Driver
SHA-512
v5.4
  • Linux Kernel 5.x
Aug 07, 2024 Aug 07, 2024 Release notes
Real TTY drivers for Linux 3.x.x
94.6 KB
Driver
SHA-512
v3.0
  • Linux Kernel 3.x
Jul 04, 2024 Jul 04, 2024 Release notes
MXview Plugin
40.8 MB
Software Package
SHA-512
v1.5
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Jun 12, 2024 Jun 12, 2024 Release notes
Serial Device Server Driver for macOS (macOS 10.1x to 14)
689.8 KB
Driver
SHA-512
v1.2
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
Nov 10, 2023 Nov 10, 2023 Release notes
Device Search Utility
2.2 MB
Utility
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 28, 2023 Jun 28, 2023 Release notes
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
Utility
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 19, 2023 Jun 19, 2023 Release notes
Device Server Android API
18.0 MB
Library
SHA-512
v1.1
  • Android
Dec 22, 2022 Dec 22, 2022 Release notes
Private MIB for NPort 6000 Series
213.8 KB
Software Package
SHA-512
v2.2
Nov 18, 2022 Nov 18, 2022 Release notes
Serial Device Server Driver for macOS (macOS 10.12 to 10.15)
611.6 KB
Driver
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
Sep 26, 2022 Sep 26, 2022 Release notes
Windows Driver Manager (Windows 11 and Windows Server 2022 and later)
3.2 MB
Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
Jan 24, 2022 Jan 24, 2022 Release notes
Firmware for NPort 6000 Series
2.3 MB
Firmware
SHA-512
v1.21
Jun 04, 2021 Jun 04, 2021 Release notes
Real TTY drivers for Linux 2.x.x
92.2 KB
Driver
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
Oct 24, 2019 Oct 24, 2019 Release notes
NPort Windows Driver Manager
2.6 MB
Driver
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Aug 22, 2018 Aug 22, 2018 Release notes
Driver for NPort 6400/6600 Series (WinCE 5)
230.5 KB
Driver
SHA-512
v1.6
  • Windows CE 5.0
  • Windows CE 6.0
Nov 14, 2012 Nov 14, 2012 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
May 13, 2012 May 13, 2012 Release notes
Driver for NPort 6400/6600 Series (WinXP Embedded)
1.2 MB
Driver
SHA-512
v1.14
  • Windows XP Embedded
Apr 04, 2012 Apr 04, 2012 Release notes
Driver for NPort 6400/6600 Series (UNIX)
73.0 KB
Driver
SHA-512
v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • FreeBSD 8.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
Mar 19, 2012 Mar 19, 2012 Release notes
Library for NPort 6400/6600 Series (SSDK)
32.2 KB
Library
SHA-512
v1.2
Dec 17, 2008 Dec 17, 2008 Release notes

Support Documents

Name Type Version Release Date
FOSS Statement for Moxa CLI Configuration Tool
114.6 KB
Declaration v1.0 Dec 10, 2024 Dec 10, 2024
Tech Note: The Security Hardening Guide for the NPort 6000 Series
1.0 MB
Tech Note v2.2 Dec 03, 2024 Dec 03, 2024
Manual for NPort 6000 Series
16.3 MB
Manual v17.9 Nov 25, 2024 Nov 25, 2024
Moxa CLI Configuration Tool User Manual
1.0 MB
Manual v2.4 Nov 18, 2024 Nov 18, 2024
Device Search Utility v3.x User Manual
95.1 MB
Manual v1.0 Oct 31, 2024 Oct 31, 2024
FOSS Statement for NPort macOS driver
108.4 KB
Declaration v1.0 Oct 29, 2024 Oct 29, 2024
FOSS Statement for Device Search Utility
161.8 KB
Declaration v1.0 Jun 24, 2024 Jun 24, 2024
Tech Note: Configuring and Monitoring with MXview One/MXview and MXconfig (non-java and java) Plugins
2.1 MB
Tech Note v1.0 May 07, 2024 May 07, 2024
Datasheet for NPort 6400/6600 Series
1.1 MB
Datasheet v1.6 Jan 02, 2024 Jan 02, 2024
Declaration of Conformity for NPort 6600 Series
312.7 KB
Declaration v1.0 Dec 26, 2023 Dec 26, 2023
Declaration of Conformity for NPort 6400 Series
408.2 KB
Declaration v1.0 Dec 26, 2023 Dec 26, 2023
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Real COM mode for NPort
479.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: TCP Client Mode for NPort
394.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: TCP Server Mode for NPort
395.0 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Reverse Telnet Mode for NPort
364.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: UDP Mode for NPort
397.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Pair Connection Mode
544.0 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Ethernet Modem Mode
429.4 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Accessing Multiple NPorts Behind NAT
497.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Fixed TTY Driver for NPort
389.7 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Real TTY Driver for NPort
379.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
FOSS Statement for NPort 6000 Series
215.6 KB
Declaration v1.0 Nov 30, 2022 Nov 30, 2022
FOSS Statement for NPort Windows Driver Manager
255.8 KB
Declaration v1.0 Aug 01, 2022 Aug 01, 2022
Tech Note: The Security Hardening Guide for the NPort 6000 Series
1.2 MB
Tech Note v2.1 Dec 26, 2021 Dec 26, 2021
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
Tech Note v1.0 Aug 05, 2021 Aug 05, 2021
QIG for NPort 6400/6600 Series (NPort 6400 models)
449.2 KB
QIG v11.2 May 06, 2021 May 06, 2021
QIG for NPort 6400/6600 Series (NPort 6600 models)
421.7 KB
QIG v12.1 May 06, 2021 May 06, 2021
Tech Note: Real COM mode for NPort
423.5 KB
Tech Note v1.1 Apr 30, 2020 Apr 30, 2020
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
Tech Note v1.0 Nov 17, 2014 Nov 17, 2014
Tech Note: TCP Server Mode for NPort
311.3 KB
Tech Note v1.0 Jun 29, 2013 Jun 29, 2013
Tech Note: UDP Mode for NPort
173.2 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: TCP Client Mode for NPort
224.4 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Real COM Mode for NPort
253.0 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort's Pair Connection Mode
211.4 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort 6000 Printer Mode
217.1 KB
Tech Note v1.0 Aug 23, 2009 Aug 23, 2009
Tech Note: PPP Mode for NPort 6000: Dial-in
271.9 KB
Tech Note v1.0 Aug 23, 2009 Aug 23, 2009
Tech Note: Real TTY Driver for NPort
204.2 KB
Tech Note v1.0 May 21, 2009 May 21, 2009
Tech Note: Fixed TTY Driver for NPort
207.6 KB
Tech Note v1.0 May 21, 2009 May 21, 2009
2D CAD for NPort 6650-16-HV-T
242.5 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6610-16-48 TOP
141.3 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-32-HV-T
326.6 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6610-16 TOP
136.1 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-8-HV-T
256.9 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6610-32-48 TOP
142.9 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6450
352.7 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6610-32 TOP
139.3 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-16
117.9 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6610-8-48 TOP
145.8 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-8
113.0 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6610-8 TOP
131.5 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-16-48 TOP
143.0 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-16-T TOP
137.7 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-16 PCBA
427.7 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-16 TOP
139.6 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-32-48 TOP
144.8 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-32 TOP
141.4 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-8-48 TOP
146.3 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-8-T TOP
140.9 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-8 PCBA
411.5 KB
2D CAD Mar 23, 2009 Mar 23, 2009
2D CAD for NPort 6650-8 TOP
144.8 KB
2D CAD Mar 23, 2009 Mar 23, 2009
Tech Note: PPP Connection Between NPort 6000 Servers
1.2 MB
Tech Note v1.0 Mar 22, 2009 Mar 22, 2009
Tech Note: PPP Mode for NPort 6000: Dial-out
240.6 KB
Tech Note v1.0 Mar 22, 2009 Mar 22, 2009
Tech Note: NPort 6000 Series With PPP Over RS-422
34.6 KB
Tech Note v1.0 Jan 14, 2009 Jan 14, 2009

Related Content

Available Models (19)

Show Images

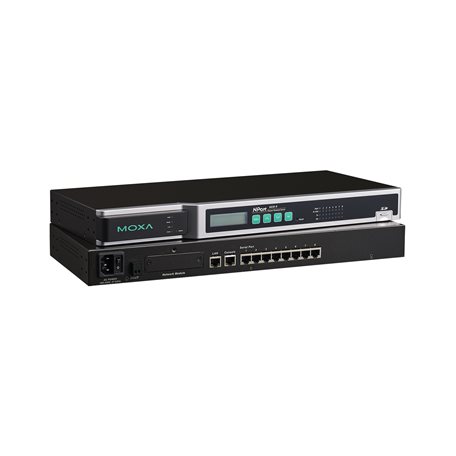

moxa-nport-6610-8-image.jpg | MoxaNPort 6610-8moxa-nport-6650-8-hv-t-image.jpg | MoxaNPort 6650-8-HV-Tmoxa-nport-6450-t-image.jpg | MoxaNPort 6450-Tmoxa-nport-6650-8-t-image.jpg | MoxaNPort 6650-8-T
No. of Serial Ports8848
Serial StandardsRS-232RS-232/422/485RS-232/422/485RS-232/422/485
Serial Interface8-pin RJ458-pin RJ45DB9 male8-pin RJ45
Operating Temp.0 to 55°C-40 to 85°C-40 to 75°C-40 to 75°C
Input Voltage100-240 VAC110 VDC; 88 to 300 VDC12 to 48 VDC100-240 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-nport-6610-16-48v-image.jpg | MoxaNPort 6610-16-48Vmoxa-nport-6650-16-48v-image.jpg | MoxaNPort 6650-16-48Vmoxa-nport-6450-image.jpg | MoxaNPort 6450moxa-nport-6650-8-image.jpg | MoxaNPort 6650-8
No. of Serial Ports161648
Serial StandardsRS-232RS-232/422/485RS-232/422/485RS-232/422/485
Serial Interface8-pin RJ458-pin RJ45DB9 male8-pin RJ45
Operating Temp.0 to 55°C0 to 55°C0 to 55°C0 to 55°C
Input Voltage48 VDC; +20 to +72 VDC, -20 to -72 VDC48 VDC; +20 to +72 VDC, -20 to -72 VDC12 to 48 VDC100-240 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

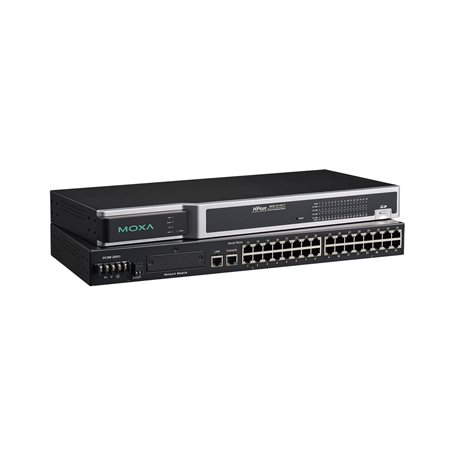

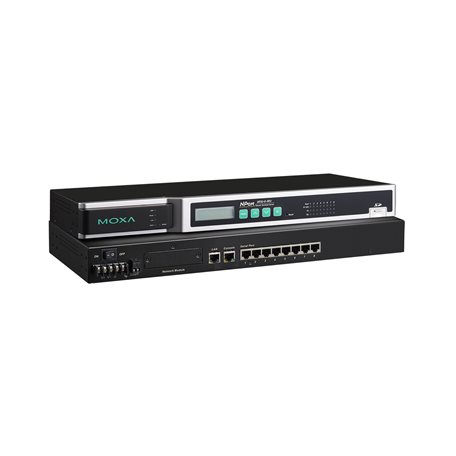

moxa-nport-6610-8-48v-image.jpg | MoxaNPort 6610-8-48Vmoxa-nport-6650-8-48v-image.jpg | MoxaNPort 6650-8-48Vmoxa-nport-6650-32-hv-t-image.jpg | MoxaNPort 6650-32-HV-Tmoxa-nport-6650-32-48v-image.jpg | MoxaNPort 6650-32-48V
No. of Serial Ports883232
Serial StandardsRS-232RS-232/422/485RS-232/422/485RS-232/422/485
Serial Interface8-pin RJ458-pin RJ458-pin RJ458-pin RJ45
Operating Temp.0 to 55°C0 to 55°C-40 to 85°C0 to 55°C
Input Voltage48 VDC; +20 to +72 VDC, -20 to -72 VDC48 VDC; +20 to +72 VDC, -20 to -72 VDC110 VDC; 88 to 300 VDC48 VDC; +20 to +72 VDC, -20 to -72 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

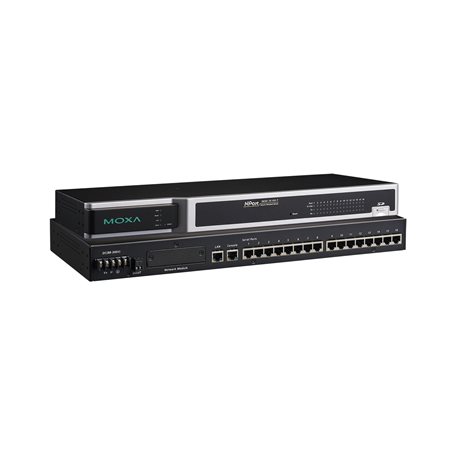

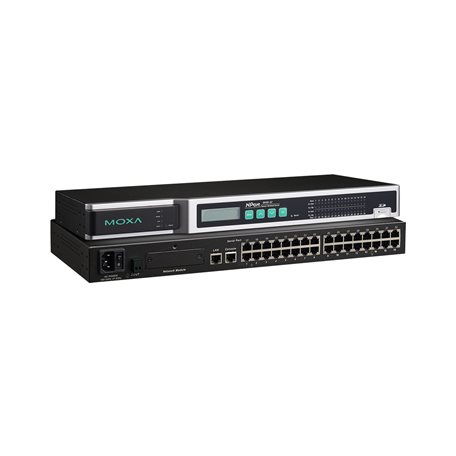

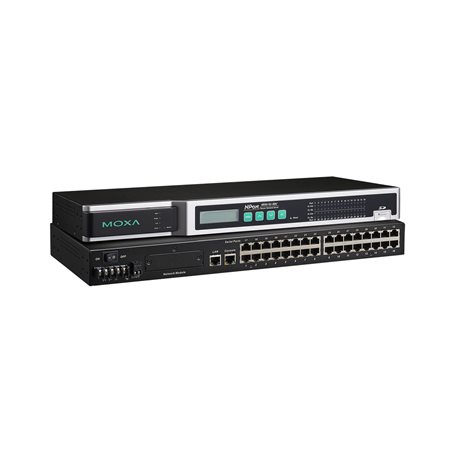

moxa-nport-6650-32-image.jpg | MoxaNPort 6650-32moxa-nport-6610-32-48v-image.jpg | MoxaNPort 6610-32-48Vmoxa-nport-6650-16-hv-t-image.jpg | MoxaNPort 6650-16-HV-Tmoxa-nport-6610-16-image.jpg | MoxaNPort 6610-16
No. of Serial Ports32321616
Serial StandardsRS-232/422/485RS-232RS-232/422/485RS-232
Serial Interface8-pin RJ458-pin RJ458-pin RJ458-pin RJ45
Operating Temp.0 to 55°C0 to 55°C-40 to 85°C0 to 55°C
Input Voltage100-240 VAC48 VDC; +20 to +72 VDC, -20 to -72 VDC110 VDC; 88 to 300 VDC100-240 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

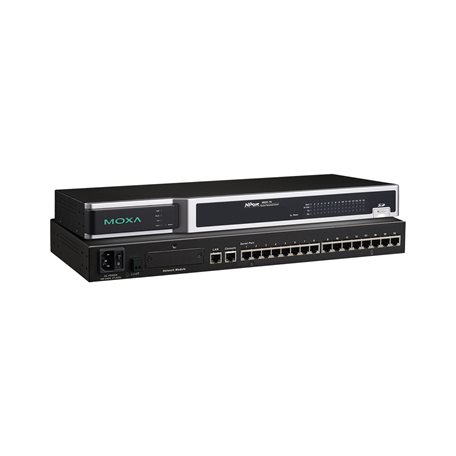

moxa-nport-6650-16-image.jpg | MoxaNPort 6650-16moxa-nport-6610-32-image.jpg | MoxaNPort 6610-32moxa-nport-6650-16-t-image.jpg | MoxaNPort 6650-16-T
No. of Serial Ports163216
Serial StandardsRS-232/422/485RS-232RS-232/422/485
Serial Interface8-pin RJ458-pin RJ458-pin RJ45
Operating Temp.0 to 55°C0 to 55°C-40 to 75°C
Input Voltage100-240 VAC100-240 VAC100-240 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

Secure Your Edge Connectivity in Every Aspect

Learn More

product image

Buy online from distributors

Added To Bag
You have some items waiting in your bag; click here to finish your quote!
Feedback
